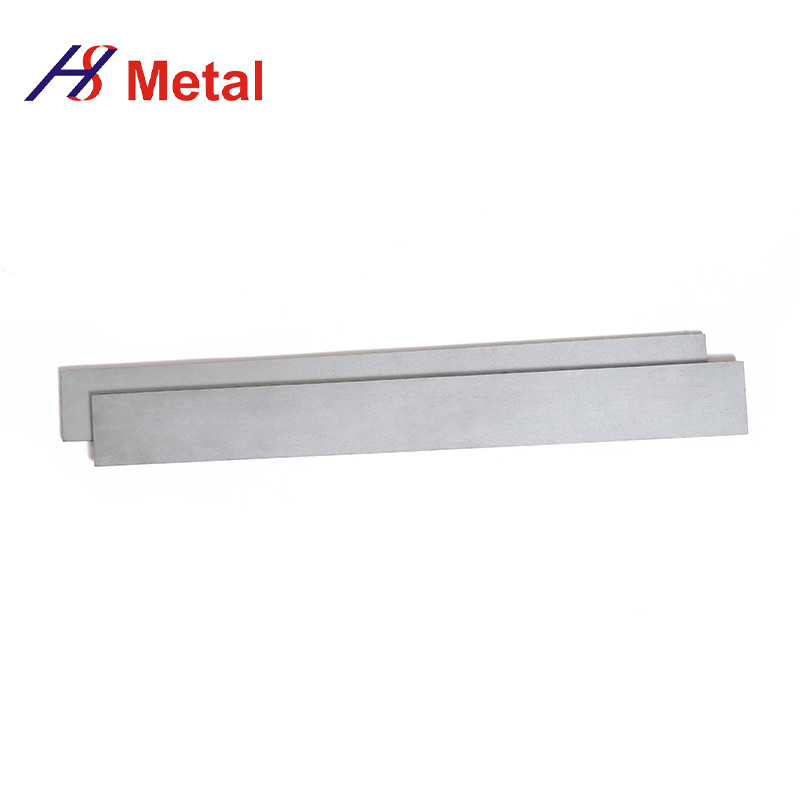

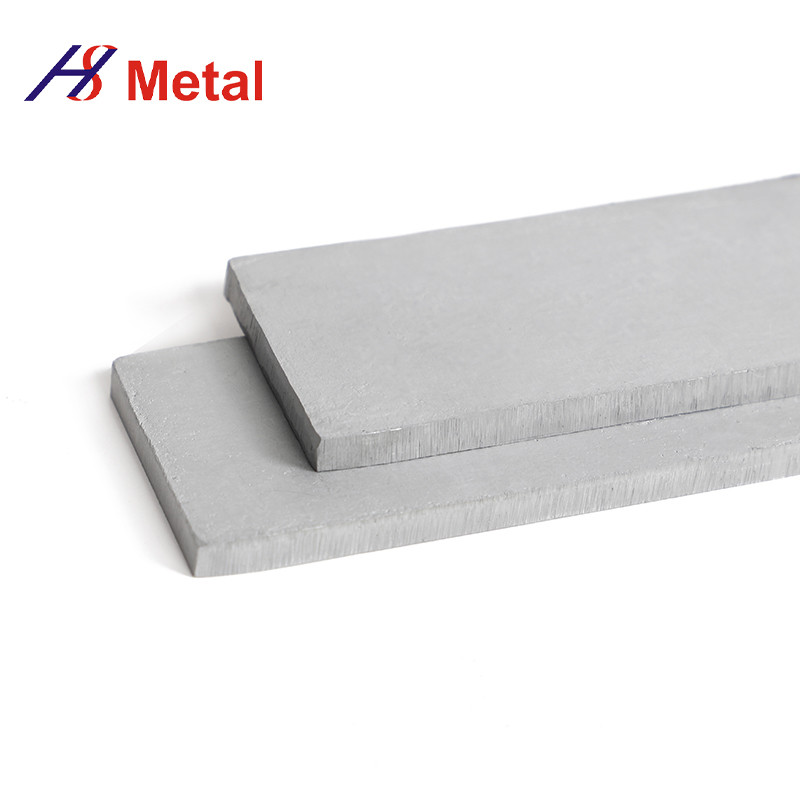

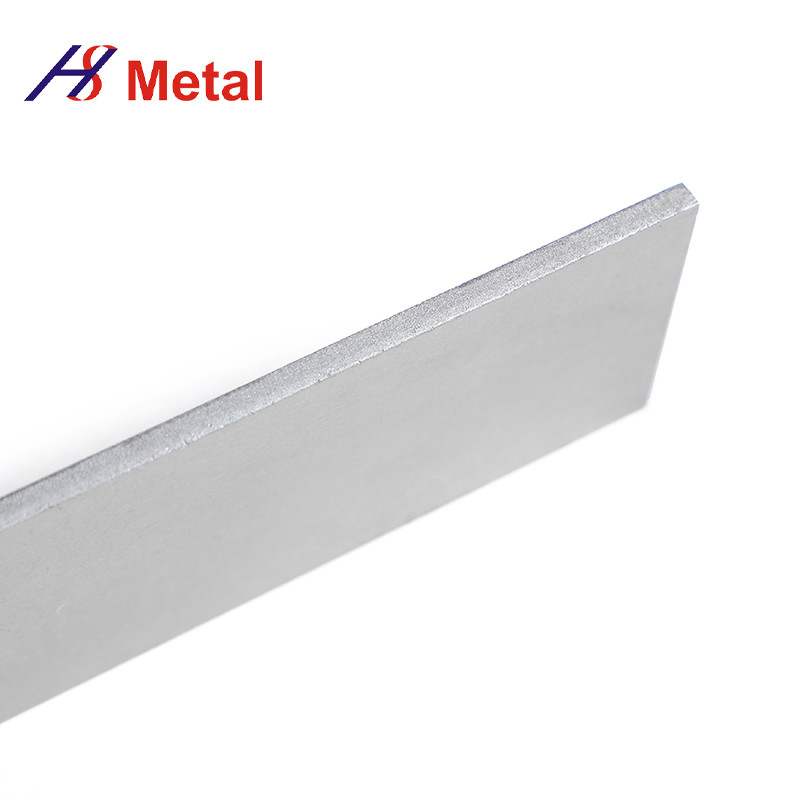

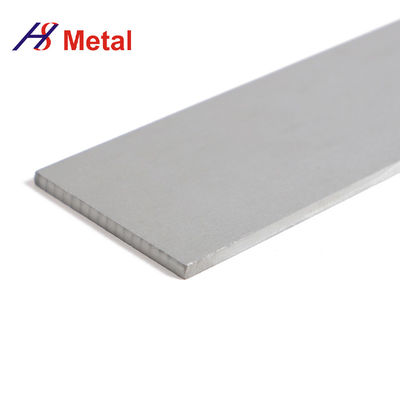

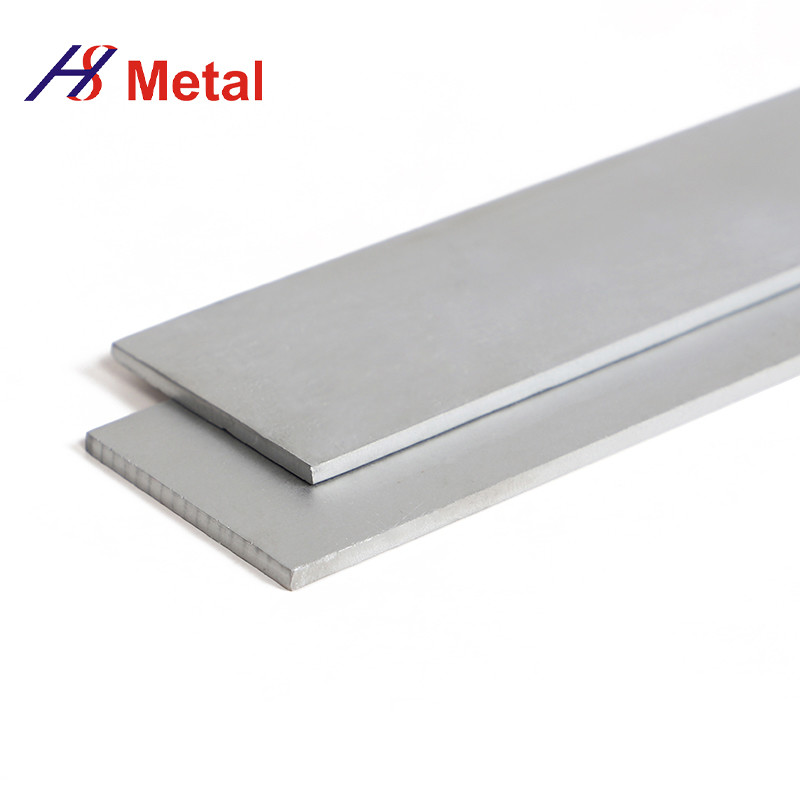

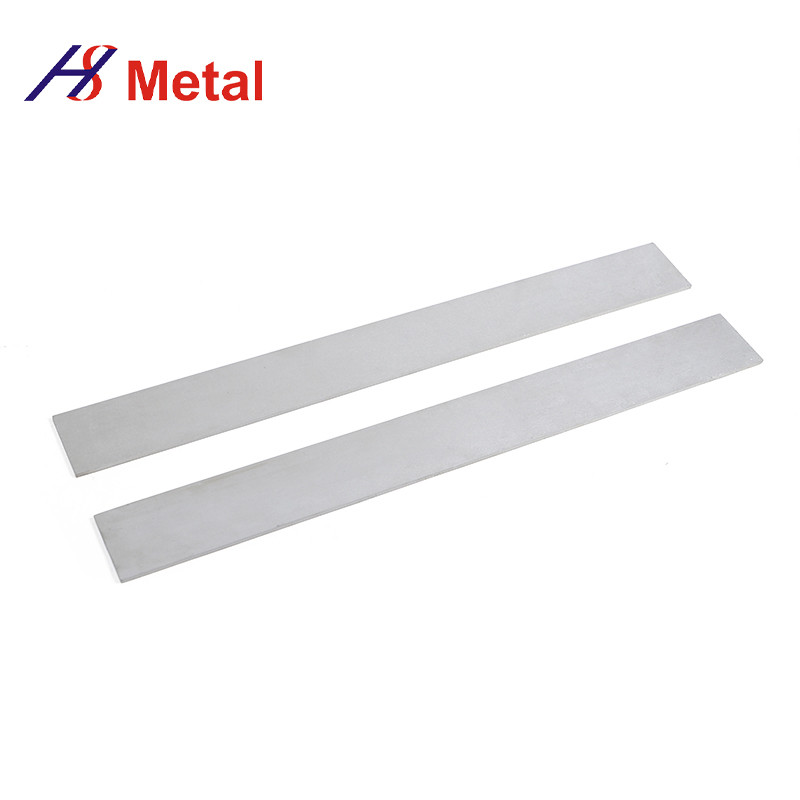

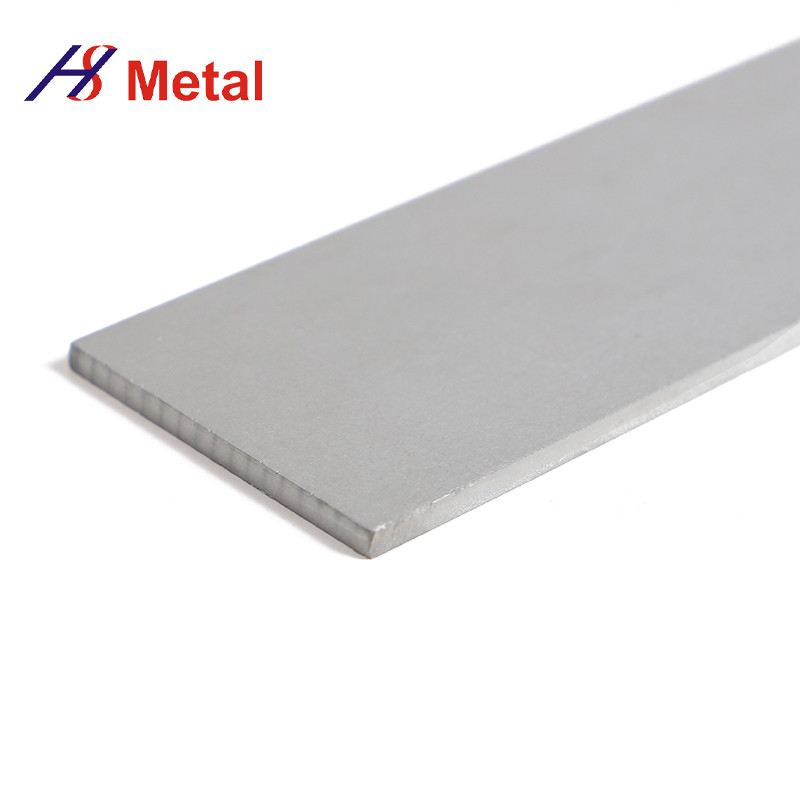

99.95% Min Purity Tungsten Sheet Plate 2mm Customized Tungsten Alloy
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Electrical Conductivity | 31.2% IACS | Hs Code | 81019600 |
|---|---|---|---|
| Material | Tungsten | Rigidity | 69 HRA Min |
| Style | Customized | Surface Roughness | Ra0.4-Ra6.3 |
| Thickness | 1.0mm - 120mm | W Purity | 99.95% |
| High Light | 99.95% tungsten sheet plate,2mm tungsten sheet plate,99.95% tungsten plate |
||
Product Description
1,Description:
Tungsten sheets are flat, thin plates made from tungsten, a refractory metal known for its high melting point, excellent strength, and exceptional electrical conductivity. These sheets are widely used in various industries, including aerospace, electronics, and medical devices, due to their unique combination of properties.
Tungsten sheets exhibit remarkable strength and hardness, making them highly resistant to deformation and capable of withstanding high mechanical stress. They have a high melting point of 3,422°C (6,192°F), which allows them to maintain their structural integrity and performance at extremely high temperatures.
2,Specifications:
| Density | 19.3 g/cm³ (at 20°C) |
| Melting Point | 3,422°C (6,192°F) |
| Thermal Conductivity | 173 W/m·K (at 20°C) |
| Coefficient of Thermal Expansion | 4.5 x 10^-6 /°C (at 20-100°C) |
| Electrical Resistivity | 5.6 x 10^-8 Ω·m (at 20°C) |
| Hardness (Rockwell C) | 30 - 40 HRC |
| Tensile Strength | 550 - 900 MPa |
| Yield Strength | 350 - 750 MPa |
