W1 W2 Thin Tungsten Alloy Plate Sheet CNC Machining For Punching Dies
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Tungsten Alloy Plate | Material | Tungsten |
|---|---|---|---|
| OEM/ODM | Accepted | Packaging | Carton, Wooden Case, Etc. |
| Payment Term | T/T, L/C, Etc. | Processing Method | CNC Machining, Turning, Milling, Etc. |
| Product Name | Tungsten Products | Surface Treatment | Polishing, Sandblasting, Anodizing, Etc. |
| Usage | Punching Dies | ||
| High Light | Thin Tungsten Alloy Plate,Thin Tungsten Alloy Sheet,CNC Machining Tungsten Alloy Sheet |
||
Product Description

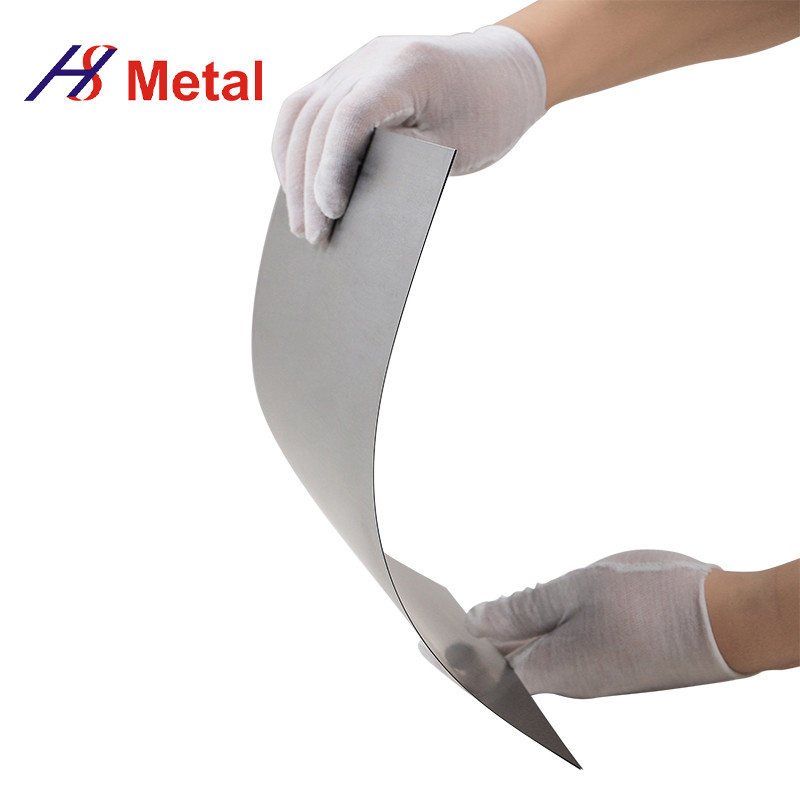

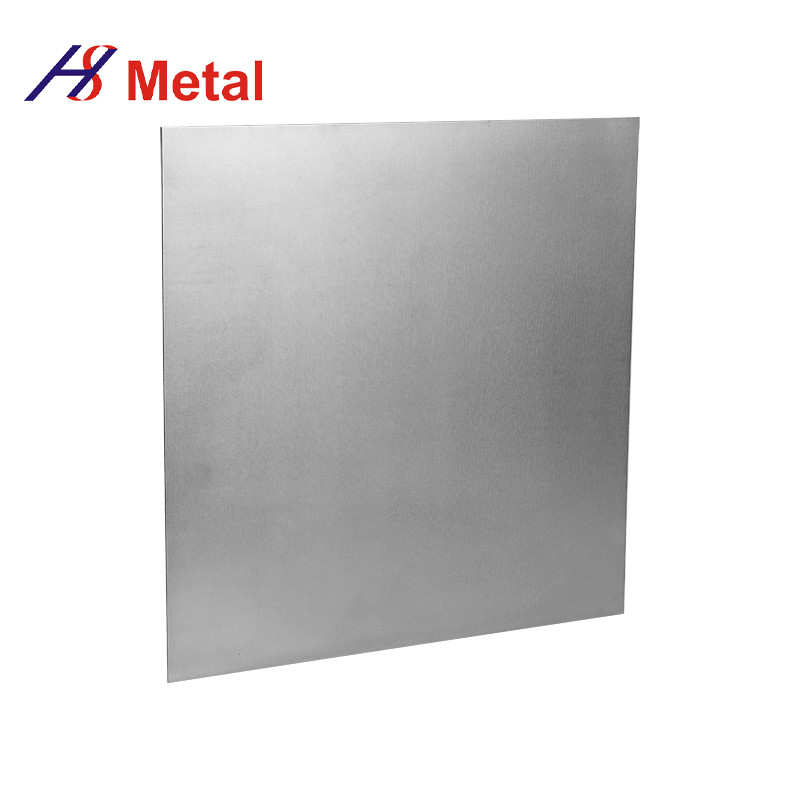

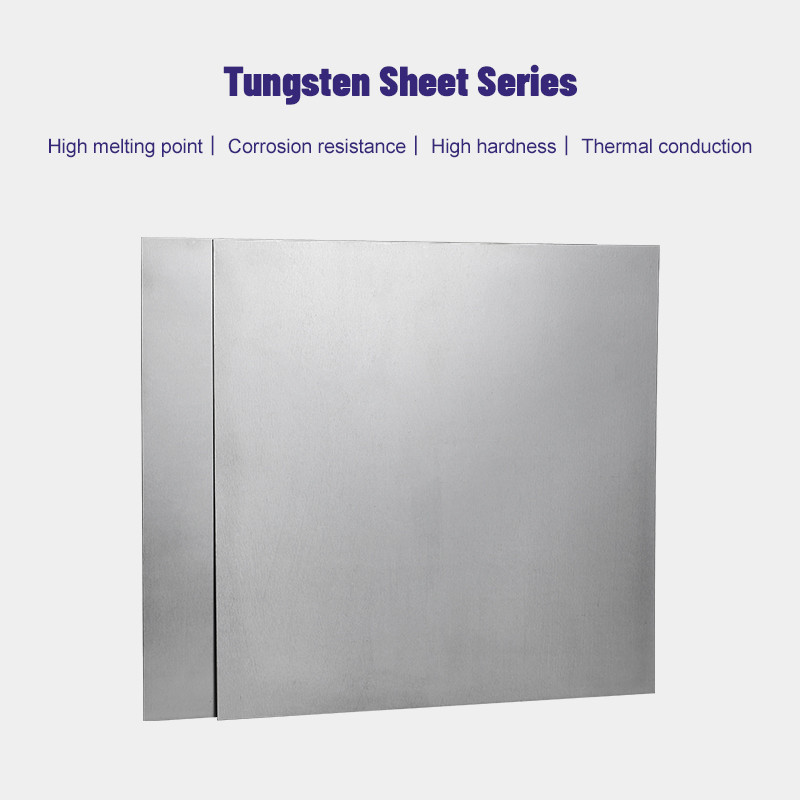

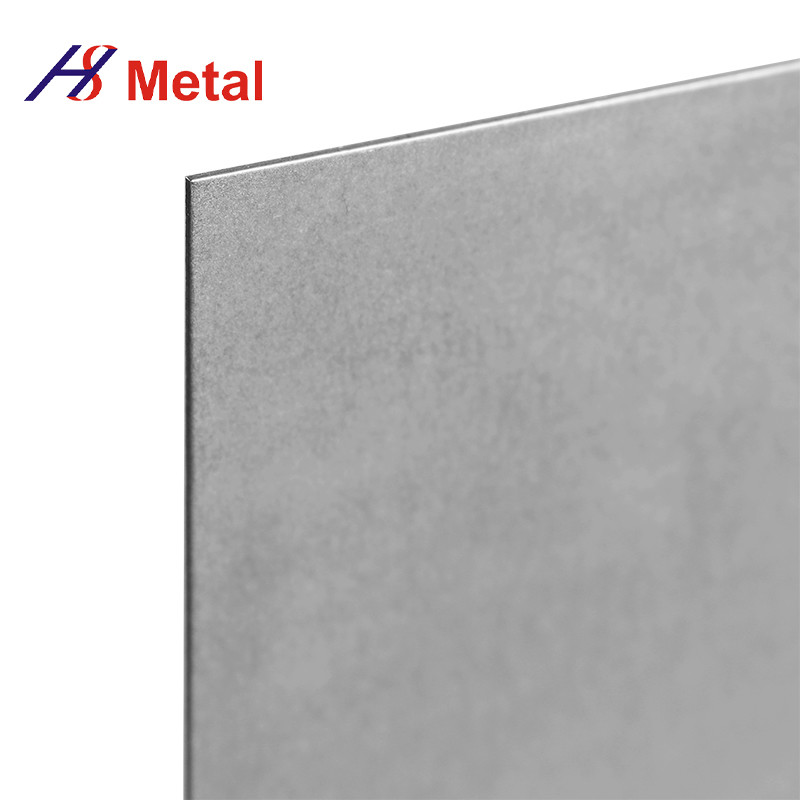

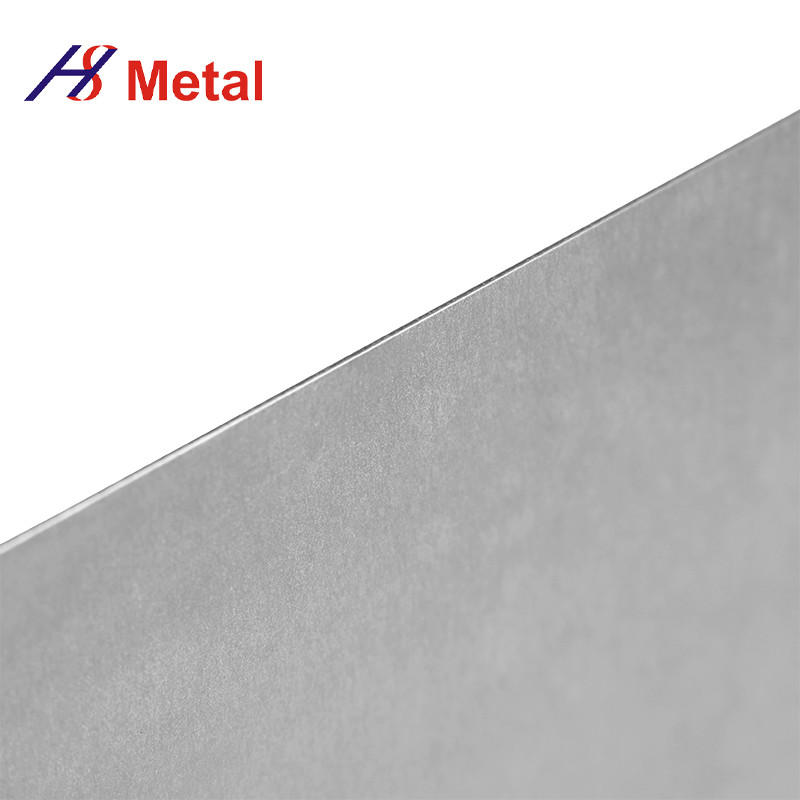

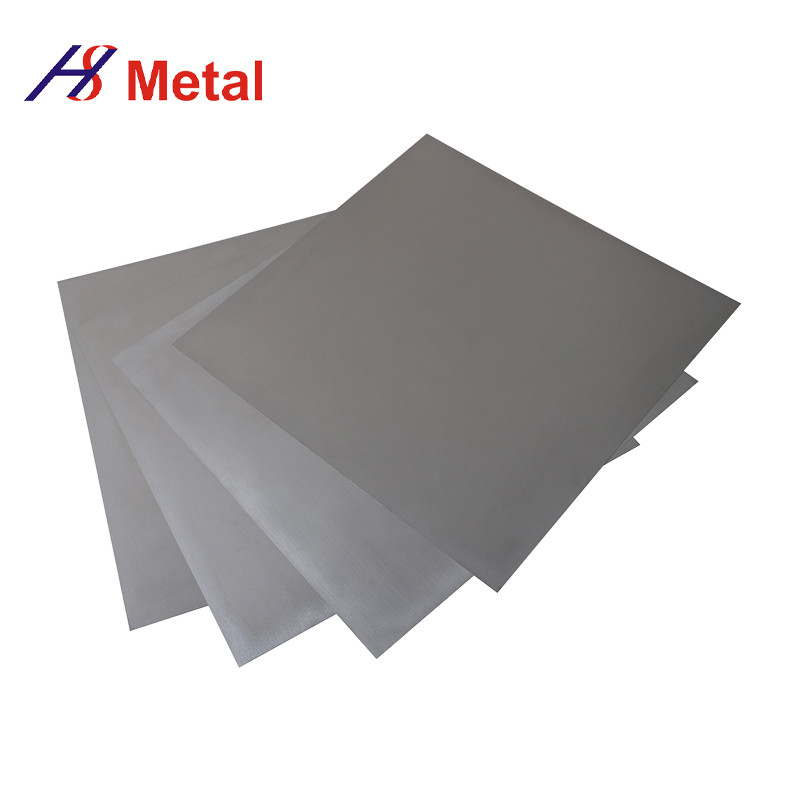

W1 W2 Thin Tungsten Alloy Plate For Punching Dies
Tungsten Alloy Plate Feature:
High melting point, High-density, high-temperature oxidation resistance, long service life, corrosion resistance.
|
Thickness mm |
Width mm |
Length mm |
|
1.0 |
50 |
100 |
|
2.0 |
150 |
200 |
|
3.0 |
350 |
150 |
|
4.0-5.0 |
400 |
400 |
|
5.0-10.0 |
600 |
800 |
|
10.0-15.0 |
800 |
1000 |
|
＞ 15.0 |
L |
L |
|
Atomic number |
74 |
|
CAS number |
7440-33-7 |
|
Atomic mass |
183.84 [g/mol] |
|
Melting point |
3420 °C |
|
Boiling point |
5555 °C |
|
Density at 20 °C |
19.25 [g/cm3] |
|
Crystal structure |
Body-centered cubic |
|
Coefficient of linear thermal expansion at 20 °C |
4.410-6 [m/(mK)] |
|
Thermal conductivity at 20 °C |
164 [W/(mK)] |
|
Specific heat at 20 °C |
0.13 [J/(gK)] |
|
Electrical conductivity at 20 °C |
18.2106 [S/m] |
|
Specific electrical resistance at 20 °C |
0.055 [(mm2)/m] |
Applications
1. Suitable for producing ion implantation parts;
2. For producing electric light source parts, components of electric vacuum;
3. For producing W-boats, heat shields, and heat bodies in high-temperature furnaces;
4. Used for tungsten sputtering target
