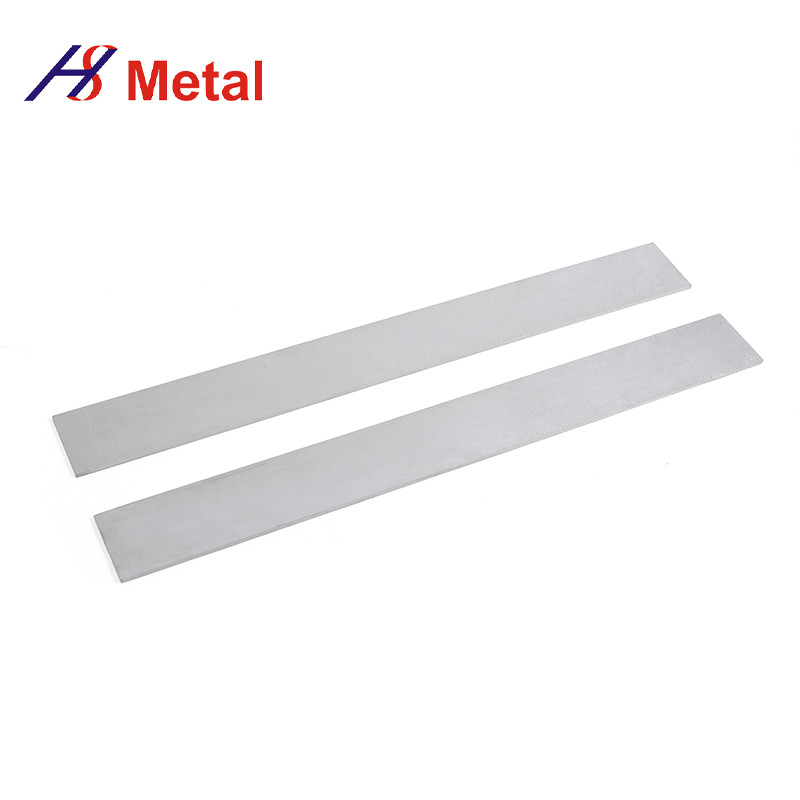

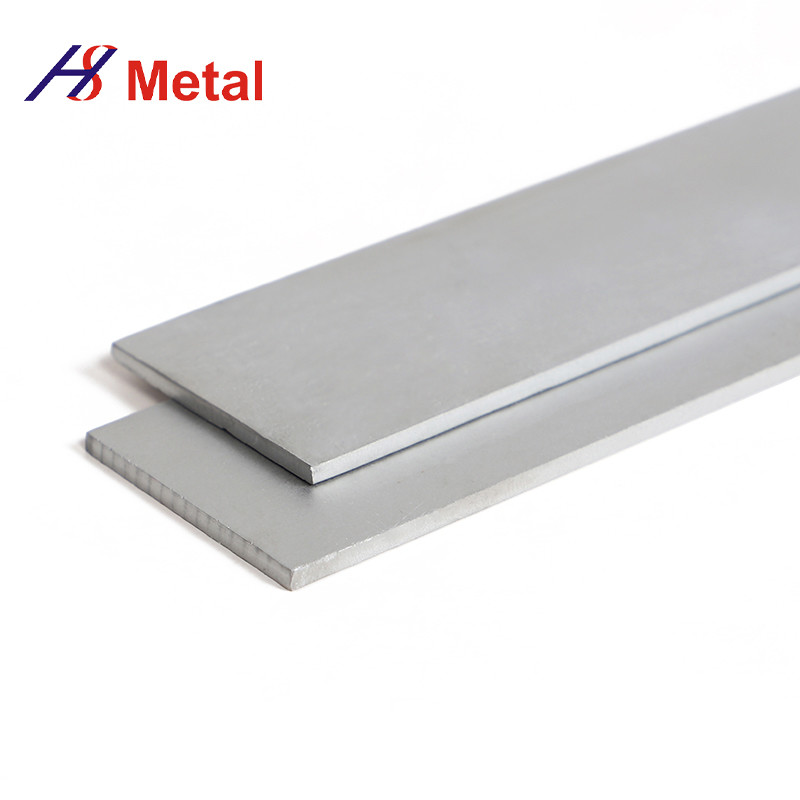

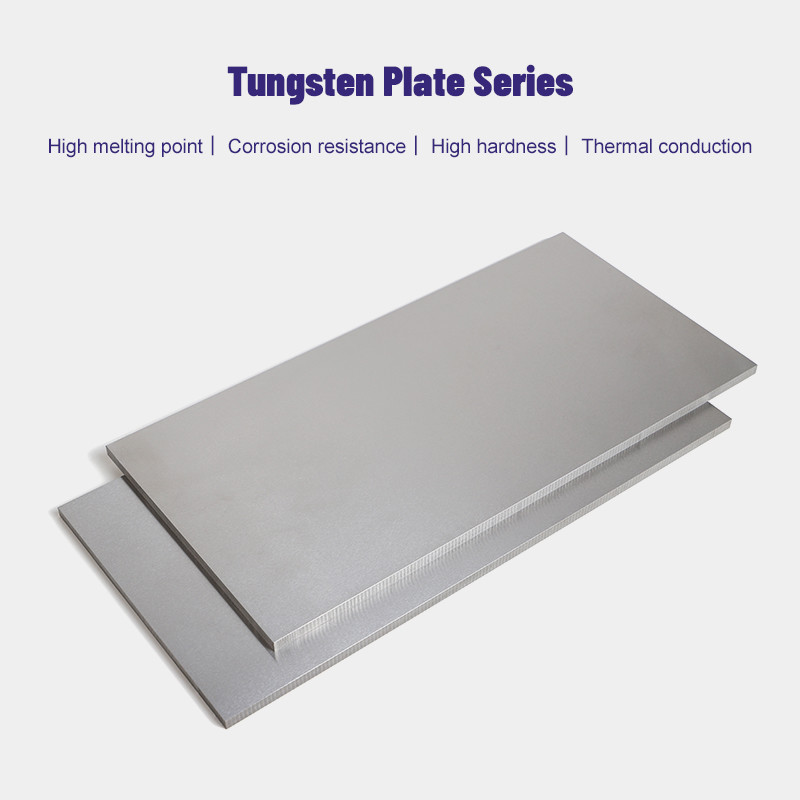

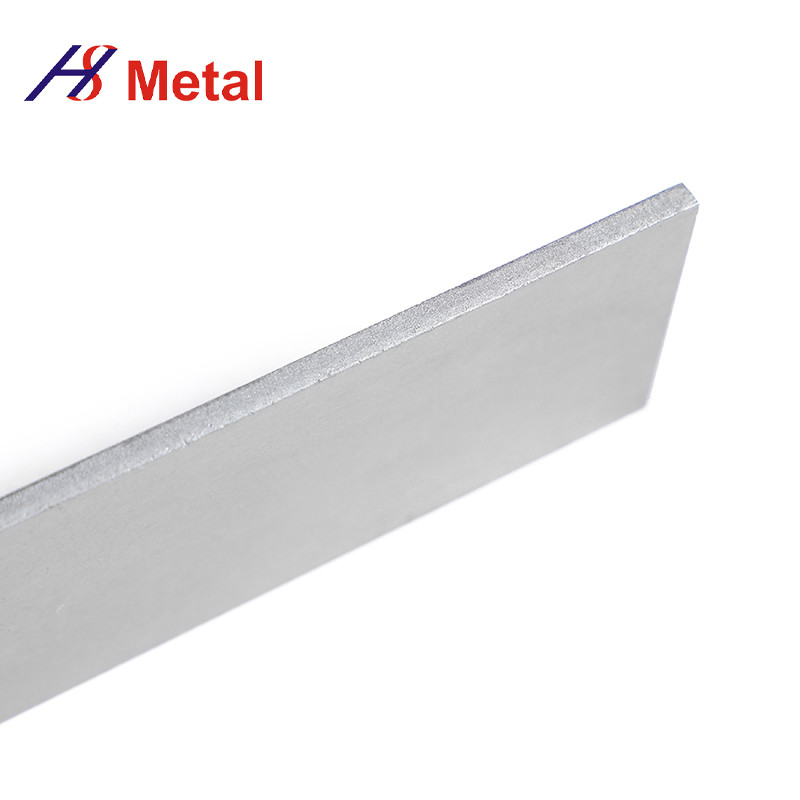

ASTM B760 Pure Tungsten Plate W1 W2 Turning Tungsten Carbide Sheet
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Pure Tungsten Plate | Material | W1, W2 |
|---|---|---|---|
| Standard | ASTMB760 | Length | >1000mm |
| Packaging | Carton, Wooden Case, Etc. | Processing Method | CNC Machining, Turning, Milling, Etc. |
| Tolerance | ±0.01mm | ||
| Highlight | ASTM Tungsten Carbide Sheet,ASTM Pure Tungsten Plate,Turning Tungsten Carbide Sheet |
||
Product Description
ASTMB760 Tungsten Products Pure Tungsten Plate W1, W2
Pure Tungsten Plate is used in Industrial, medical, metallurgical, electric vacuum components, electric light source parts, heat shield, aerospace development, etc.
Pure Tungsten Plate Feature
- High-temperature performance
- High melting point
- Good machining performance
- High re-crystallization temperature
- Good resistance to high-temperature sag performance
- Good acid and alkali resistance at room temperature
Specifications of Polished Tungsten Plates
| Type | 99.5% Pure tungsten sheet tungsten plate price |
| Thickness | >6.0mm |
| Width | >400mm |
| Length | >1000mm |
| Surface | polished |
| shape | foil,sheet,plate |
High-quality high sales polished tungsten sheets can be customized
|
Atomic number |
74 |
|
CAS number |
7440-33-7 |
|
Atomic mass |
183.84 [g/mol] |
|
Melting point |
3420 °C |
|
Boiling point |
5555 °C |
|
Density at 20 °C |
19.25 [g/cm3] |
|
Crystal structure |
Body-centered cubic |
|
Coefficient of linear thermal expansion at 20 °C |
4.410-6 [m/(mK)] |
|
Thermal conductivity at 20 °C |
164 [W/(mK)] |
|
Specific heat at 20 °C |
0.13 [J/(gK)] |
|
Electrical conductivity at 20 °C |
18.2106 [S/m] |
|
Specific electrical resistance at 20 °C |
0.055 [(mm2)/m] |
Applications
electric industry: connectors, thermal conductors, switch accessories, electric connectors, circuit breaker accessories, switch contacts, electronic equipment parts and other parts and consumable parts; electric welding electrodes, seam welding wheels, spot welding electrodes, radiating fins, electro sparking discharge electrodes, electroerosion machining or electric contact machining,
high-temperature-resistant equipment parts needing electric conductivity, arc striking substrates and fasteners of anti-thunder equipment, high-voltage protection plates, counterweights, electronic packaging heat sink materials, radiators, etc.
