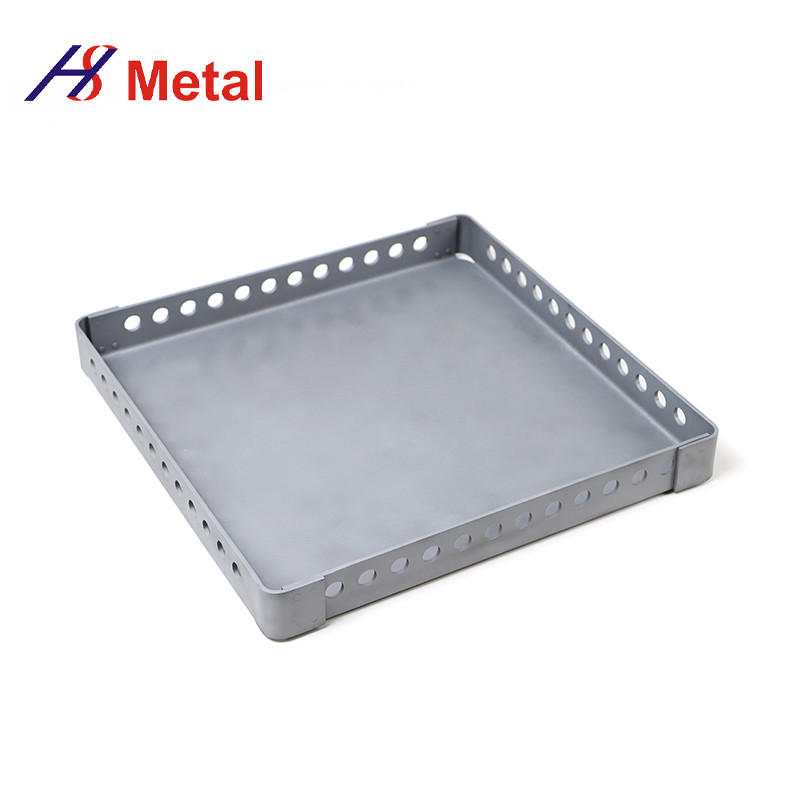

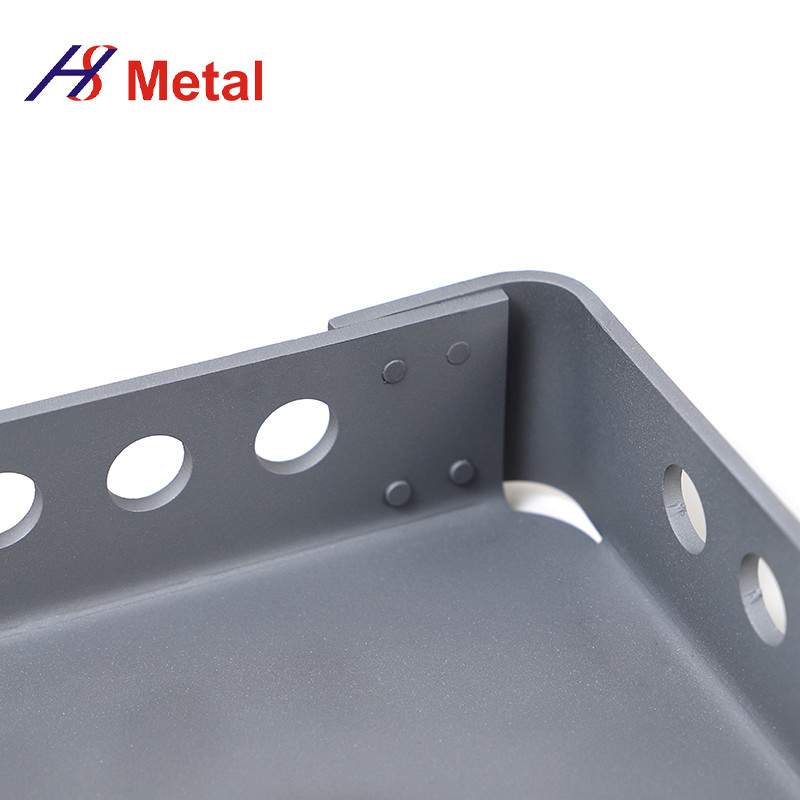

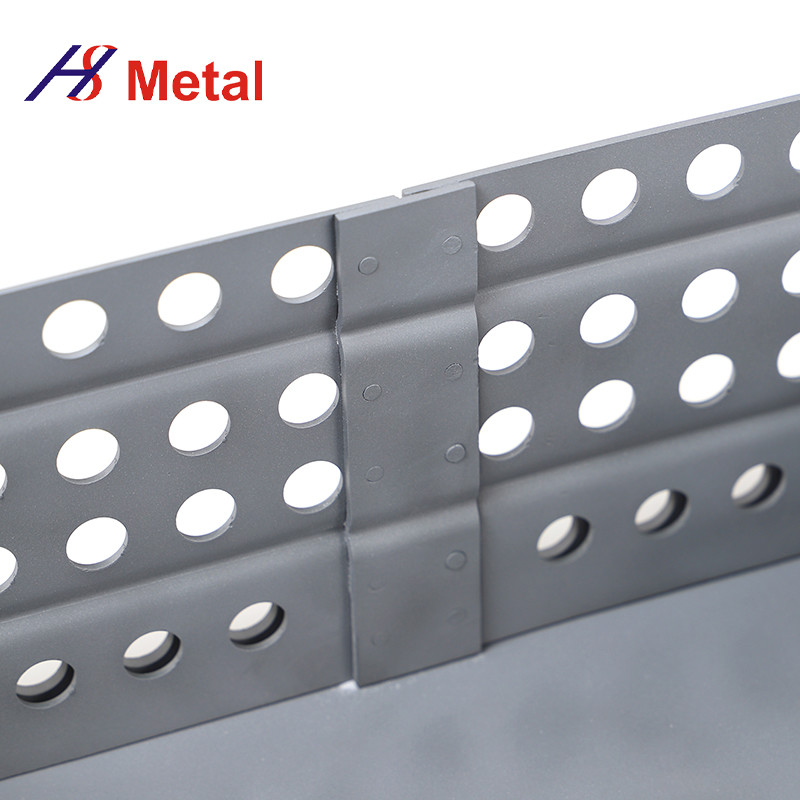

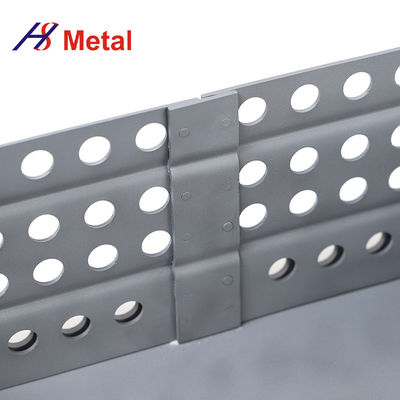

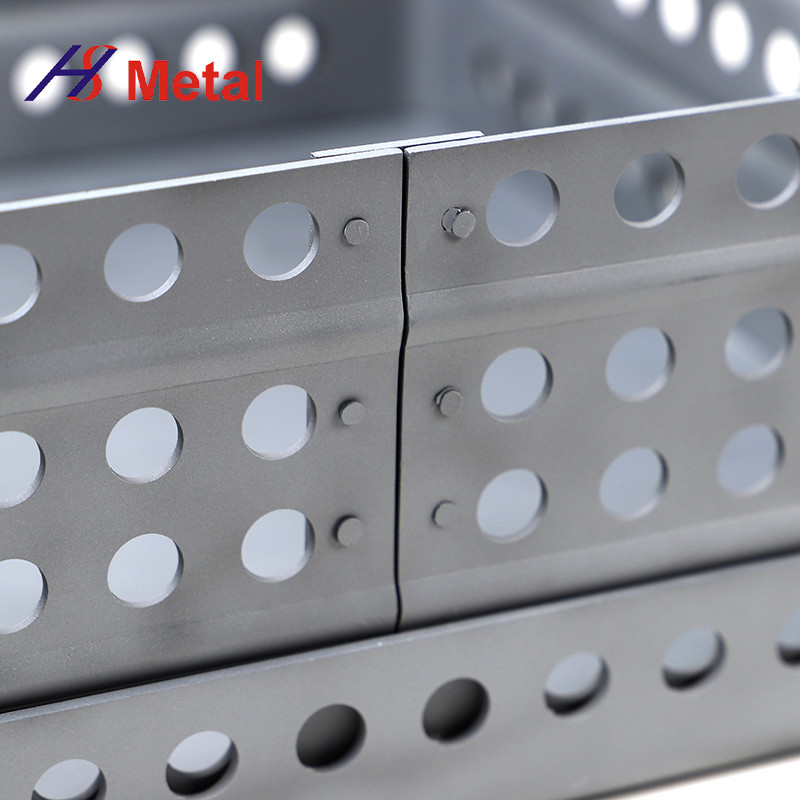

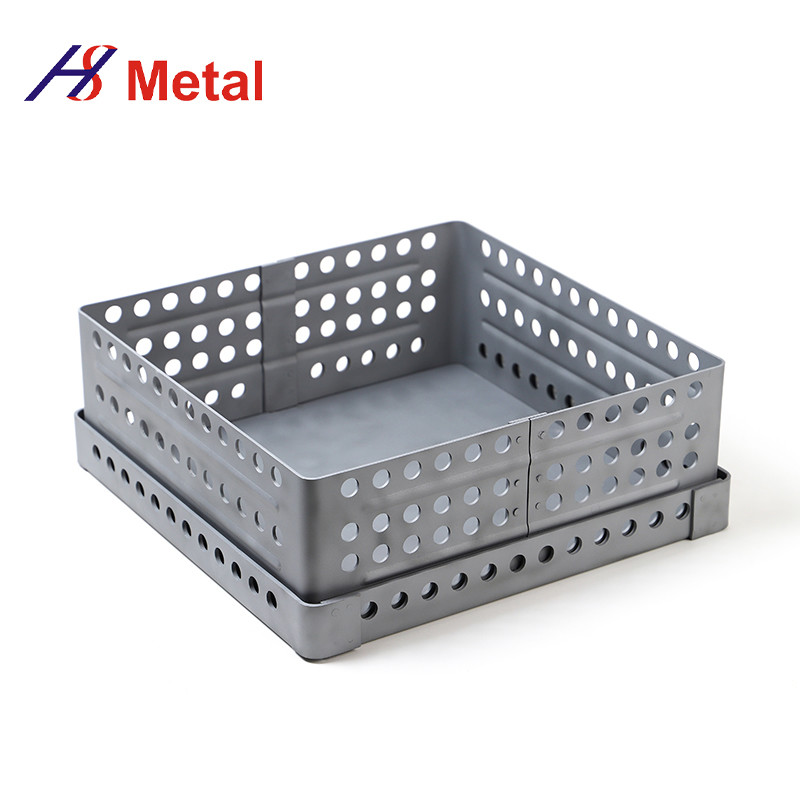

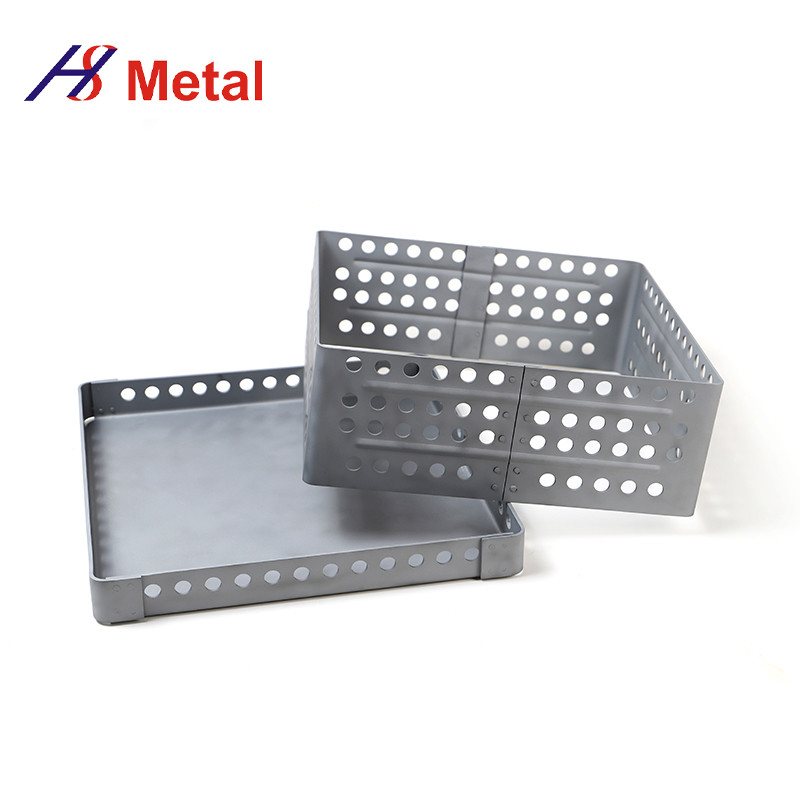

Molybdenum Container Trays Molybdenum Box Tzm Molybdenum Tray For Mim

Place of Origin China
Brand Name Hypersolid Metal
Minimum Order Quantity Negotiate
Price Negitionable
Packaging Details Standard export cartons
Delivery Time 30 days after receiving down payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Boiling Point 4639 °C Chemicalcomposition Pure Mo,Mo-La,TZM
Density 10.2 G/cm3 Dimension Customized
Grade Mo1,TZM,MoLa Alloy Mo Content >=99.95%
Operating Temperature 1400~2000℃ Weight Customized
High Light

molybdenum container trays

,

molybdenum box tzm

,

molybdenum tray for mim

Leave a Message
Product Description

1,Description:

  1. Molybdenum boats are commonly used in various high-temperature applications, such as vacuum deposition, sintering, and thermal evaporation processes.

  2. These boats are designed to withstand extreme temperatures and provide a stable and inert environment for the materials being heated or processed.

  3. Molybdenum boats have a high melting point, making them suitable for use in applications that involve the handling and containment of molten materials or high-temperature environments.

  4. These boats exhibit excellent thermal conductivity, allowing for efficient heat transfer and uniform heating during thermal processes.

  5. Molybdenum boats possess good dimensional stability and resistance to deformation at elevated temperatures, ensuring reliable performance during high-temperature operations.

  6. The boats are often used for the precise measurement and controlled delivery of small quantities of materials, such as in gas analysis, chemical reactions, and sample preparation.

2,Specifications:



Physical Property Value
Melting Point Approximately 2,620°C
Density 10.2 g/cm³
Thermal Conductivity 138 W/m·K (at room temperature)
Coefficient of Thermal Expansion 4.8 x 10^-6 /°C (in the range of 20-1000°C)
Electrical Conductivity 31% IACS (International Annealed Copper Standard)
Hardness (Rockwell C) 30 - 35 HRC
Tensile Strength 580 - 820 MPa
Yield Strength 340 - 690 MPa
Elongation at Break 10 - 30%

Molybdenum Container Trays Molybdenum Box Tzm Molybdenum Tray For Mim 0
