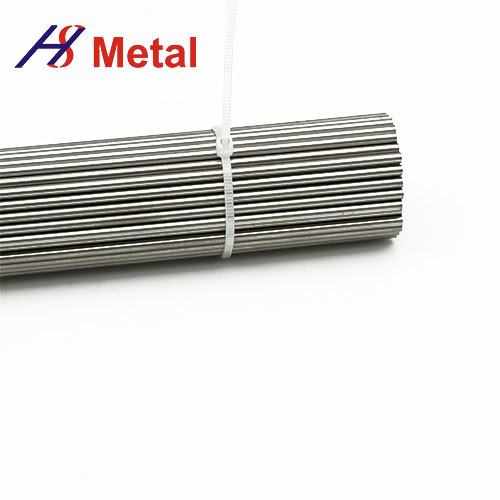

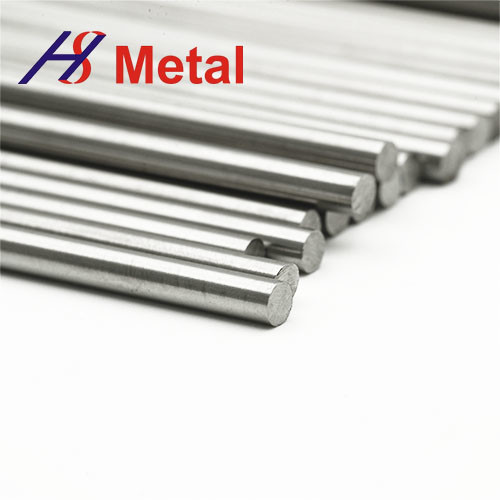

Mo1 99.95% Pure Molybdenum Bar Polished Oem Odm
| Place of Origin | China |
|---|---|
| Brand Name | Hypersolid Metal |
| Model Number | Molybdenum Bar |
| Minimum Order Quantity | Negotiate |
| Price | Negitionable |
| Packaging Details | Standard export cartons |
| Delivery Time | 30 days after receiving down payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Molybdenum Bar | Purity | 99.95% Pure |
|---|---|---|---|
| Surface | Polished Surface | Application | Industrial, Aerospace, Etc. |
| Density | 10.2 G/cm3 | Material | Molybdenum |
| Melting Point | 2610℃ | Product Name | Molybdenum Bar |
| Shape | Bar | Size | Customized |
| Surface Finish | Polished | ||
| High Light | mo1 molybdenum bar,odm molybdenum bar,99.95% pure moly bar |
||
Product Description
| Products Name | Mo Bar different length factory price molybdenum rod electrode for sale |
| Diameter & Length | According to your drawings |
| Grade | Mo1 |
| Material | 99.95% Molybdenum |
| Technological process | Pressing, Singtering, forging, maching |
| Application |
Electrode, Lighting, Furnace parts and High temperature alloys |
Packing:
> Put the goods encased with foam in wooden box/carton/iron box,etc.
> Other packing will be accept according to your needs.
99.95% Pure Vacuum Furnace Molybdenum Bar Polished Surface
Molybdenum (Mo) is a refractory metallic element that readily forms hard, stable carbides and has the sixth-highest melting point of any element. Molybdenum is most commonly used as a high-temperature, corrosion-resistant metal alloy in steel, cast iron, and supealloys for the military and defense industry, semiconductor industry and specialty machine shops.
Specification
|
Diameter |
0.125 (3.18 mm) 6 (152 mm) |
|
LengthVarious lengths are available |
|
|
Purity |
Mo≥99.95% |
|
Material |
Pure Molybdenum, Molybdenum TZM, Mo- La alloy |
|
Standard |
ASTM B-387 |
Properties
*If the diameter is <0.125”, please check our Molybdenum wire.
Molybdenum rod and molybdenum bar are formed by sintering molybdenum powder. Molybdenum rod has a high melting point, good thermal conductivity, and low thermal expansion performance. It can be used to manufacture electric vacuum devices and electric light source parts, and can also be used as high-temperature heating elements, high-temperature structural parts, electrodes, etc.
Please view the molybdenum rod to see our standard sizes of round bars. The above are most of the standard sizes of our molybdenum rectangular bars. If you do not see the size of the molybdenum bar you require, please contact us.
Molybdenum Rod Surface
Cleaned: The surface is chemically cleaned to remove all lubricants and oxides.
Black: The surface is either swaged or drawn and retains a coating of processing lubricants and oxides.
Chemical composition
|
Grade |
Molybdenum(Mo) (%) |
The impurity content is not more than (%) |
|||||||
|
Fe |
Ni |
Al |
Si |
Mg |
C |
N |
O |
||
|
Mo-1 |
99.95 |
0.01 |
0.005 |
0.002 |
0.01 |
0.005 |
0.01 |
0.003 |
0.008 |
|
Atomic number |
42 |
|
CAS number |
7439-98-7 |
|
Atomic mass |
95.94 [g/mol] |
|
Melting point |
2620 °C |
|
Boiling point |
4639 °C |
|
Density at 20 °C |
10.22 [g/cm] |
|
Crystal structure |
Body-centered cubic |
|
Coefficient of linear thermal expansion at 20 °C |
5.210-6[m/(mK)] |
|
Thermal conductivity at 20 °C |
142 [W/(mK)] |
|
Specific heat at 20 °C |
0.25 [J/(gK)] |
|
Electrical conductivity at 20 °C |
17.9106[S/m] |
|
Specific electrical resistance at 20 °C |
0.056 [(mm2)/m] |
Applications
Furnace pillars for sapphire crystal furnaces and other vacuum furnaces
Furnace heater for sapphire crystal furnaces and other vacuum furnaces
Tungsten headpieces for the industries of quartz
Stirring bars for glass smelting and rear-earth smelting
