ASTM B387 Molybdenum Bar Molybdenum Rod Stock For Electrodes Heating Element
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Molybdenum Rod Stock | Purity | 99.95% Min |
|---|---|---|---|
| Application | Vacuum Furnace | Surface | Smooth |
| Stanadrd | ASTM B387 | Usage | Electrodes , Heating Element |
| High Light | ASTM Molybdenum Bar,ASTM Molybdenum Rod Stock,Electrodes Heating Element Molybdenum Bar |
||
Product Description

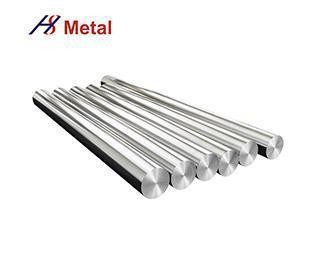

ASTM B387 Molybdenum Rod Stock For Electrodes, Heating Element
Applications for Molybdenum Rod Stock
① For the manufacture of electric vacuum devices and electric light source parts.
② Suitable for processing ion implantation-type parts.
③ Used as high-temperature heat generators and high-temperature structural parts.
④ Used as an electrode for furnaces in the glass and refractory fiber industries, working in molten glass at 1300°C with a long life.
⑤ Used as an electrode in the rare earth industry.
Molybdenum Rod Stock Specification
|
Diameter |
0.125 (3.18 mm) 6 (152 mm) |
|
LengthVarious lengths are available |
|
|
Purity |
Mo≥99.95% |
|
Material |
Pure Molybdenum, Molybdenum TZM, Mo- La alloy |
|
Standard |
ASTM B-387 |
Properties
*If the diameter is <0.125”, please check our Molybdenum wire.
Molybdenum rod and molybdenum bar are formed by sintering molybdenum powder. Molybdenum rod has a high melting point, good thermal conductivity, and low thermal expansion performance. It can be used to manufacture electric vacuum devices and electric light source parts, and can also be used as high-temperature heating elements, high-temperature structural parts, electrodes, etc.
Please view the molybdenum rod to see our standard sizes of round bars. The above are most of the standard sizes of our molybdenum rectangular bars. If you do not see the size of the molybdenum bar that you require, please feel free to contact us.
Molybdenum Rod Surface
Cleaned: The surface is chemically cleaned to remove all lubricants and oxides.
Black: The surface is either as swaged or as drawn and retains a coating of processing lubricants and oxides.
Chemical composition
|
Grade |
Molybdenum(Mo) (%) |
The impurity content is not more than (%) |
|||||||
|
Fe |
Ni |
Al |
Si |
Mg |
C |
N |
O |
||
|
Mo-1 |
99.95 |
0.01 |
0.005 |
0.002 |
0.01 |
0.005 |
0.01 |
0.003 |
0.008 |
|
Atomic number |
42 |
|
CAS number |
7439-98-7 |
|
Atomic mass |
95.94 [g/mol] |
|
Melting point |
2620 °C |
|
Boiling point |
4639 °C |
|
Density at 20 °C |
10.22 [g/cm] |
|
Crystal structure |
Body-centered cubic |
|
Coefficient of linear thermal expansion at 20 °C |
5.210-6[m/(mK)] |
|
Thermal conductivity at 20 °C |
142 [W/(mK)] |
|
Specific heat at 20 °C |
0.25 [J/(gK)] |
|
Electrical conductivity at 20 °C |
17.9106[S/m] |
|
Specific electrical resistance at 20 °C |
0.056 [(mm2)/m] |
