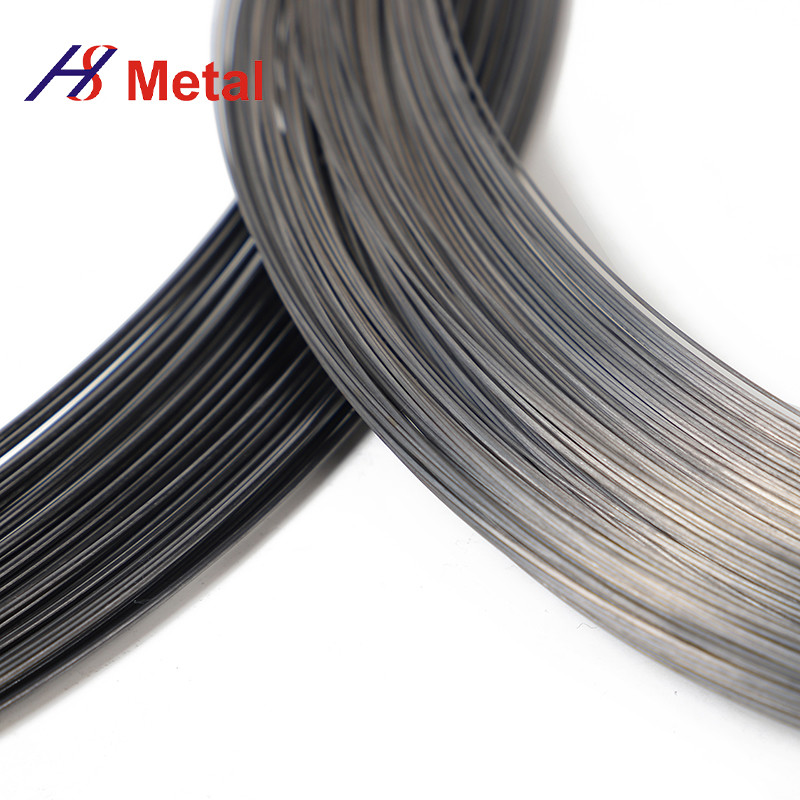

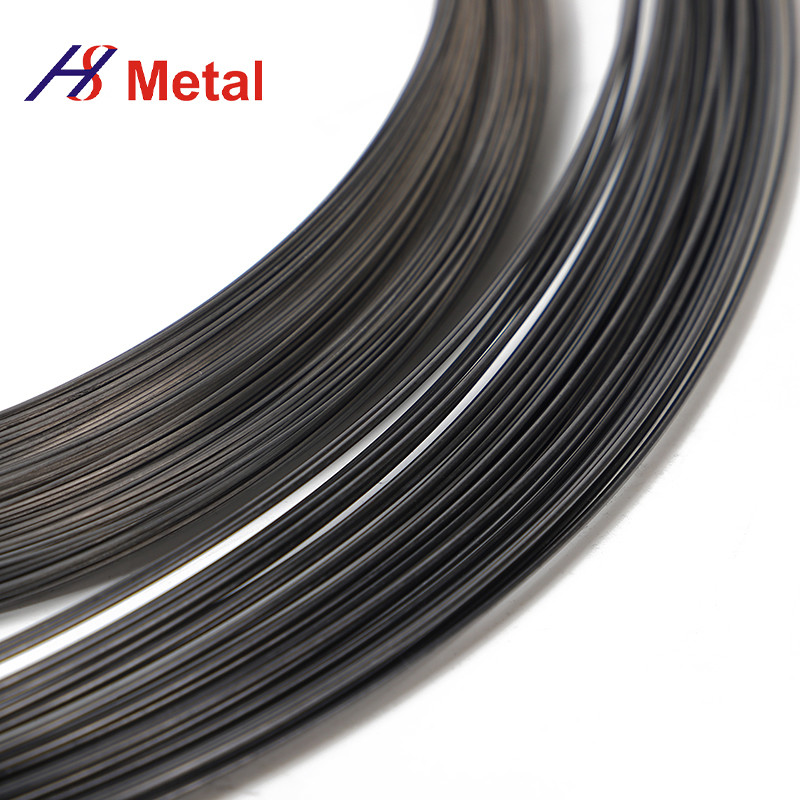

High Strength Forging Molybdenum Wire Diameter 0.18mm For EDM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Molybdenum Wire | Material | Molybdenum |
|---|---|---|---|
| Purity | 99.95% | Density | 10.2g/cm |
| Diameter | 0.1~3.2mm | Length | User’s Demand |
| High Light | Forging Molybdenum Wire,0.18mm Molybdenum Wire,0.18mm Molybdenum Wire Edm |
||
Product Description
High Strength Forging Molybdenum Wire 0.18 Mm For EDM
Molybdenum wire refers to the line cutting with a high-voltage electric field that moves continuously to cut the workpiece by a molybdenum and other precious metals made of consumables, WEDM workpiece when moving constantly fine metal wire called the electrode wire the electrode), which can be carried out on the workpiece pulse spark erosion erosion, cutting metal forming.
Molybdenum Wire
|
Material: |
Molybdenum |
Purity: |
99.95% |
|
Density: |
10.2g/cm |
Diameter: |
0.1~3.2mm |
|
Color: |
Alkaline Cleaning/black |
Length: |
User’s Demand |
Specifications
Our molybdenum wire is produced by stretching the Molybdenum rod to various diameter after the rod undergo the pass rolling and rotary forging to about 3mm. The Advantages of our molybdenum wire are good stability, good tensile strength, high precision cutting, and low elongation. Our factory can provide various molybdenum wires with a diameter of 0.1~3.2mm, we can also provide custom products as per your requirements. We offer 2,000 to 3,000 kg of pure molybdenum wire products per month. Standard availability is described below. Other sizes and tolerances are available.
|
Molybdenum Wire Types |
Diameter (inch) |
Tolerance (%) |
|
Molybdenum Wire for EDM |
0.007" ~ 0.01" |
±3% wt |
|
Molybdenum Spray Wire |
1/16" ~ 1/8" |
±1% to 3% wt |
|
Molybdenum Wire |
0.002" ~ 0.08" |
±3% wt |
Chemical Properties
|
Element |
Ni |
Mg |
Fe |
Pb |
Al |
Bi |
Si |
Ca |
P |
Cu |
|
Concentration(%) |
0.0006 |
0.0006 |
0.001 |
0.0006 |
0.003 |
0.0006 |
0.003 |
0.0006 |
0.001 |
0.0006 |
|
Element |
C |
O |
Sb |
|
|
|
|
|
|
|
|
Concentration(%) |
0.001 |
0.005 |
0.0006 |
|
|
|
|
|
|
|
|
Purity(Metallic Base) Mo≥99.95% |
||||||||||
FAQ
Q: What kind of work does your company do?
A: Our company is a professional manufacturer. We mainly produce Molybdenum products and other metal products.
Q: How long is your delivery time?
A: The products will be delivered as soon as possible based on quality assurance.
Q: What are the advantages of your company?
A: First of all, we have an absolute advantage in price. Secondly, strict control has also been carried out in terms of product quality. In addition, we will strictly follow the requirements of customers to provide customers with perfect customized services
Q: How long is your delivery time?
A: The products will be delivered as soon as possible based on quality assurance.
