99.95% W Tungsten Materials Crucible ODM Heating Elements Of Induction Furnace
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Melting | Color | Silver |
|---|---|---|---|
| Density | High | Electrical Resistivity | Low |
| Material | Tungsten | Melting Point | 3400℃ |
| Shape | Crucible | Size | Customized |
| Surface Treatment | Polished | ||
| High Light | W Tungsten Materials,W Tungsten Materials,Tungsten Crucible ODM |
||
Product Description

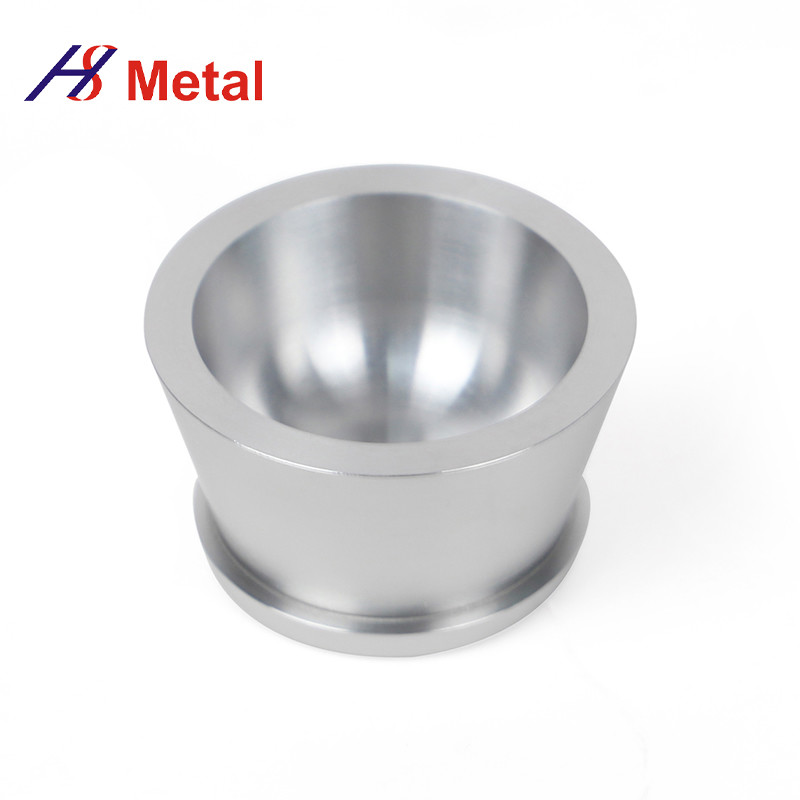

99.95% W Tungsten Materials Crucible Heating Elements Of Induction Furnace
A tungsten crucible is made of pure tungsten as raw material and has the same characteristics as pure tungsten. It is an important container for sapphire crystal growth thermal field, rare earth smelting, quartz continuous melting, and high-temperature heat treatment furnaces. It can be used in vacuum or inert gas below 2600°C.
Specification
| delivery condition | specification | tolearance | thickness | roughness | ||
| diameter | height | diameter | height | |||
| sintered | 10-550 | 10-750 | +/-5.0 | +/-5.0 | 8-20 | ＜3.5 |
| sintering finishing | 10-450 | 10-550 | +/-0.5 | +/-1.0 | 7-18 | ＜2.5 |
| Atomic number | 74 |
| CAS number | 7440-33-7 |
| Atomic mass | 183.84 [g/mol] |
| Melting point | 3420 °C |
| Boiling point | 5555 °C |
| Density at 20 °C | 19.25 [g/cm3] |
| Crystal structure | Body-centered cubic |
| Coefficient of linear thermal expansion at 20 °C | 4.410-6[m/(mK)] |
| Thermal conductivity at 20 °C | 164 [W/(mK)] |
| Specific heat at 20 °C | 0.13 [J/(gK)] |
| Electrical conductivity at 20 °C | 18.2106[S/m] |
| Specific electrical resistance at 20 °C | 0.055 [(mm2)/m] |
Tungsten Materials Crucible Application
- Used for sapphire single crystal growth furnace
- Applied for quartz glass melting furnace;
- Used for rare earth smelting furnace;
- Used for sintering metal molding of high melting point;
- Widely used in other following industries: Ceramics and metallurgical industries, machinery processing and light industries.
