99.95% Pure Tungsten Products 750 MPa Tungsten Ring For Semiconductor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Tungsten Ring | Molecular Weight | 183.85 |
|---|---|---|---|
| Melting Point | 3410 °C | Density | 19.3 G/cm3 |
| Application | Semiconductor, Chemical Vapor Deposition (CVD) | Tensile Strength | 750 MPa |
| High Light | Pure Tungsten Products,750 MPa Tungsten Ring,Tungsten Products 750 MPa |
||
Product Description

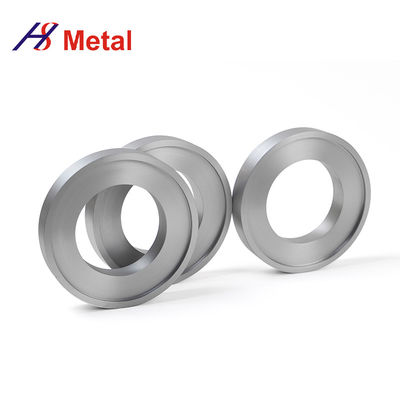

99.95% Pure Tungsten Products Tungsten Ring For Semiconductor
Introduction
Grade: W 1
Purity: > 99.95%
Density: 17.1 g / cm 3-19.3 g / cm 3
Size: Diameter > 10 mm * thick > 0.1 mm
Processing technique: cold rolled/machined
Surface: polished surface /machined surface
Color: metal color
Condition: vacuum annealing
Melting point: 3410 degree
Boiling point: 5927 degree
Delivery time: 3-10 days
Parameter
|
Molecular Weight |
183.85 |
|---|---|
|
Appearance |
Silvery |
|
Melting Point |
3410 °C |
|
Boiling Point |
5900 °C |
|
Density |
19.3 g/cm3 |
|
Solubility in H2O |
N/A |
|
Electrical Resistivity |
5.65 μΩ ·m (27 °C) |
|
Electronegativity |
1.7 Paulings |
|
Heat of Fusion |
35.3 kJ/mol |
|
Heat of Vaporization |
806.7 kJ/mol |
|
Poisson's Ratio |
0.28 |
|
Specific Heat |
0.133 J/g mol (20 °C) |
|
Tensile Strength |
750 MPa |
|
Thermal Conductivity |
1.73 W/m K |
|
Thermal Expansion |
(25 °C) 4.5 µm·m-1·K-1 |
|
Vickers Hardness |
3430 MPa |
|
Young's Modulus |
411 GPa |
Tungsten Ring Applications
1. widely used in semiconductor, chemical vapor deposition (CVD) and physical vapor deposition (PVD) display and optical applications;
2. applied in producing electrodes, heating elements, heat shields, sintering trays, sintering boats, stacking sheets, base plates, sputtering targets, crucibles in electronic and vacuum applications.
3. can be used as contacts in vehicle motors.
