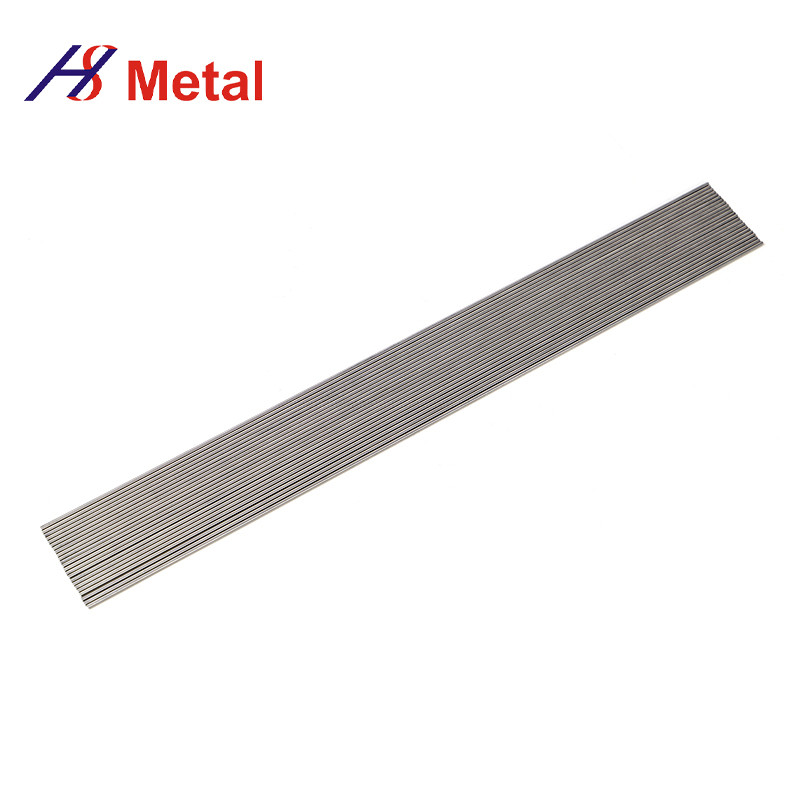

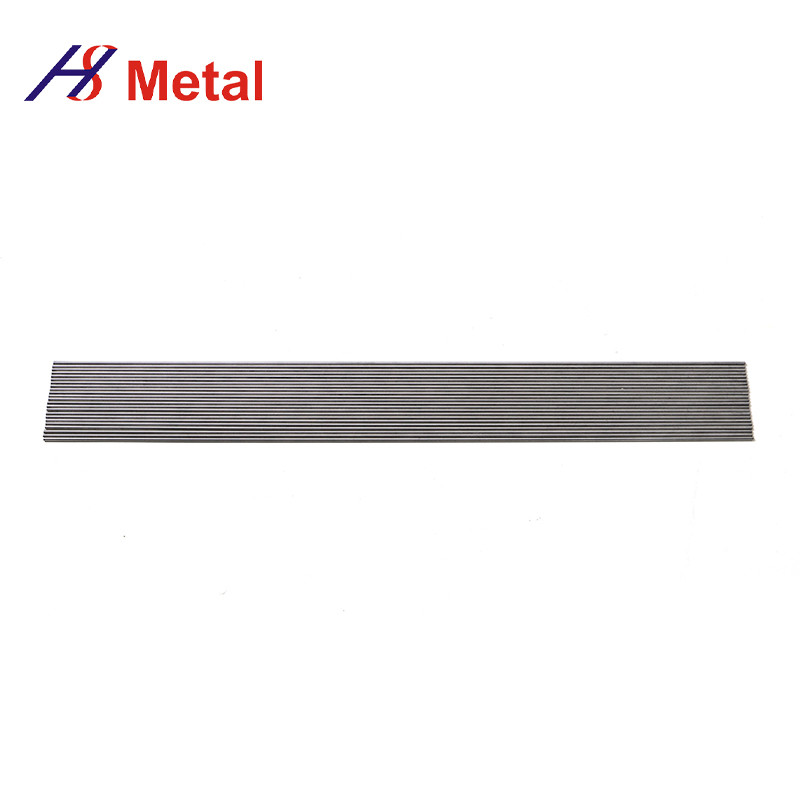

1mm-10mm Molybdenum Rod Stock Black/Alkaline/Polished Surface
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Molybdenum Bar | Purity | 99.95% Min |
|---|---|---|---|
| Size | 1mm-10mm | Surface | Black/Alkaline/Polished |
| Density | 10.2g/cm3 | Usage | Aerospace Industry, Chemical Equipment Industry |
| High Light | 10mm Molybdenum Rod Stock,Molybdenum Rod Stock Black,Alkaline Molybdenum Rod |
||
Product Description
1mm-10mm Molybdenum Bar Black/Alkaline/Polished Surface
Application
X-ray targets. molybdenum is the most used target material in x-ray generation. Molybdenum has a high atomic number which increases the intensity of the x-rays at a set of voltage and current. Its high melting point also allows the x-ray anode to become white hot.
Radiation shield. molybdenum alloy combines the advantages of high density, high radiation absorption, high melting point and good corrosion resistance, is an ideal material to shield from various radiations.
Armor penetrator. The weapon uses the kinetic energy of a projectile to destroy enemy targets. This energy is a function of the mass and its velocity when reaching the target (terminal velocity). The mass is dependent on the density, and the terminal velocity is dependent on both the density and melting temperature. molybdenum has both advantages.
Specification
|
Diameter |
0.125 (3.18 mm) 6 (152 mm) |
|
LengthVarious lengths are available |
|
|
Purity |
Mo≥99.95% |
|
Material |
Pure Molybdenum, Molybdenum TZM, Mo- La alloy |
|
Standard |
ASTM B-387 |
Properties
*If the diameter is <0.125”, please check our Molybdenum wire.
Molybdenum rod and molybdenum bar are formed by sintering molybdenum powder. Molybdenum rod has a high melting point, good thermal conductivity, and low thermal expansion performance. It can be used to manufacture electric vacuum devices and electric light source parts, and can also be used as high-temperature heating elements, high-temperature structural parts, electrodes, etc.
Please view the molybdenum rod to see our standard sizes of round bars. The above are most of the standard sizes of our molybdenum rectangular bars. If you do not see the size of the molybdenum bar that you require, please feel free to contact us.
Molybdenum Rod Surface
Cleaned: The surface is chemically cleaned to remove all lubricants and oxides.
Black: The surface is either as swaged or as drawn and retains a coating of processing lubricants and oxides.
Chemical composition
|
Grade |
Molybdenum(Mo) (%) |
The impurity content is not more than (%) |
|||||||
|
Fe |
Ni |
Al |
Si |
Mg |
C |
N |
O |
||
|
Mo-1 |
99.95 |
0.01 |
0.005 |
0.002 |
0.01 |
0.005 |
0.01 |
0.003 |
0.008 |
|
Atomic number |
42 |
|
CAS number |
7439-98-7 |
|
Atomic mass |
95.94 [g/mol] |
|
Melting point |
2620 °C |
|
Boiling point |
4639 °C |
|
Density at 20 °C |
10.22 [g/cm] |
|
Crystal structure |
Body-centered cubic |
|
Coefficient of linear thermal expansion at 20 °C |
5.210-6[m/(mK)] |
|
Thermal conductivity at 20 °C |
142 [W/(mK)] |
|
Specific heat at 20 °C |
0.25 [J/(gK)] |
|
Electrical conductivity at 20 °C |
17.9106[S/m] |
|
Specific electrical resistance at 20 °C |
0.056 [(mm2)/m] |
