6.0mm Thickness Tungsten Products CNC Machining Tungsten Steel Plate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Tungsten Plate | Thickness | >6.0mm |
|---|---|---|---|
| Width | >400mm | Length | >1000mm |
| Material | Tungsten | Packaging | Carton, Wooden Case, Etc. |
| Payment Term | T/T, L/C, Etc. | Processing Method | CNC Machining, Turning, Milling, Etc. |
| Tolerance | ±0.01mm | ||
| High Light | CNC Machining Tungsten Products,CNC Machining Tungsten Steel Plate,6.0mm Tungsten Steel Plate |
||
Product Description

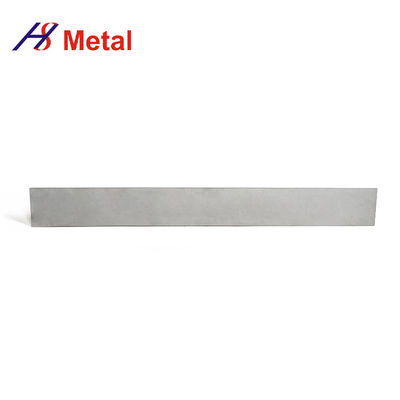

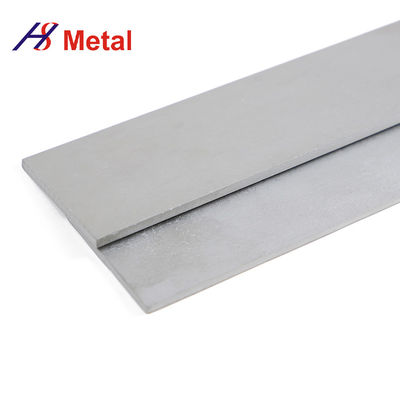

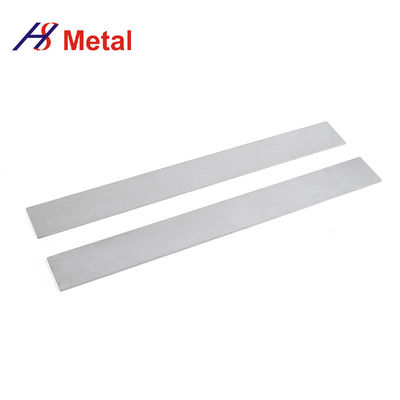

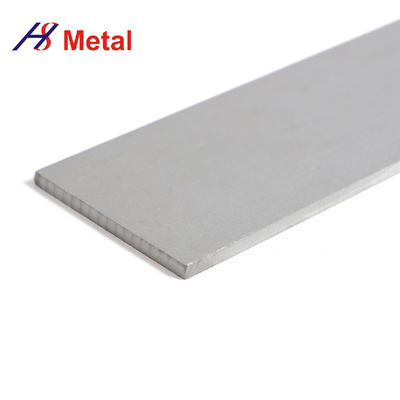

6.0mm Thickness Tungsten Products Tungsten Plate CNC Machining
Tungsten plates are high melting points, corrosion resistance, high density, and good thermal and electrical conductivity. The common products are tungsten poles/needles, tungsten electrodes, tungsten plates, tungsten rods/bars, etc. The common tungsten percent is 99.95%, also can be up to 99.98%. We can supply all kinds of sizes according to your request.
Feature
- High-temperature performance
- High melting point
- Good machining performance
- High re-crystallization temperature
- Good resistance to high-temperature sag performance
- Good acid and alkali resistance at room temperature
Specifications of Polished Tungsten Plates
| Type | 99.5% Pure tungsten sheet tungsten plate price |
| Thickness | >6.0mm |
| Width | >400mm |
| Length | >1000mm |
| Surface | polished |
| shape | foil, sheet, plate |
High-quality high sales polished tungsten sheets can be customized
|
Atomic number |
74 |
|
CAS number |
7440-33-7 |
|
Atomic mass |
183.84 [g/mol] |
|
Melting point |
3420 °C |
|
Boiling point |
5555 °C |
|
Density at 20 °C |
19.25 [g/cm3] |
|
Crystal structure |
Body-centered cubic |
|
Coefficient of linear thermal expansion at 20 °C |
4.410-6 [m/(mK)] |
|
Thermal conductivity at 20 °C |
164 [W/(mK)] |
|
Specific heat at 20 °C |
0.13 [J/(gK)] |
|
Electrical conductivity at 20 °C |
18.2106 [S/m] |
|
Specific electrical resistance at 20 °C |
0.055 [(mm2)/m] |
Applications
electric industry: connectors, thermal conductors, switch accessories, electric connectors, circuit breaker accessories, switch contacts, electronic equipment parts, and other parts and consumable parts; electric welding electrodes, seam welding wheels, spot welding electrodes, radiating fins, electro sparking discharge electrodes, electroerosion machining or electric contact machining,
high-temperature-resistant equipment parts needing electric conductivity, arc striking substrates and fasteners of anti-thunder equipment, high-voltage protection plates, counterweights, electronic packaging heat sink materials, radiators, etc.
