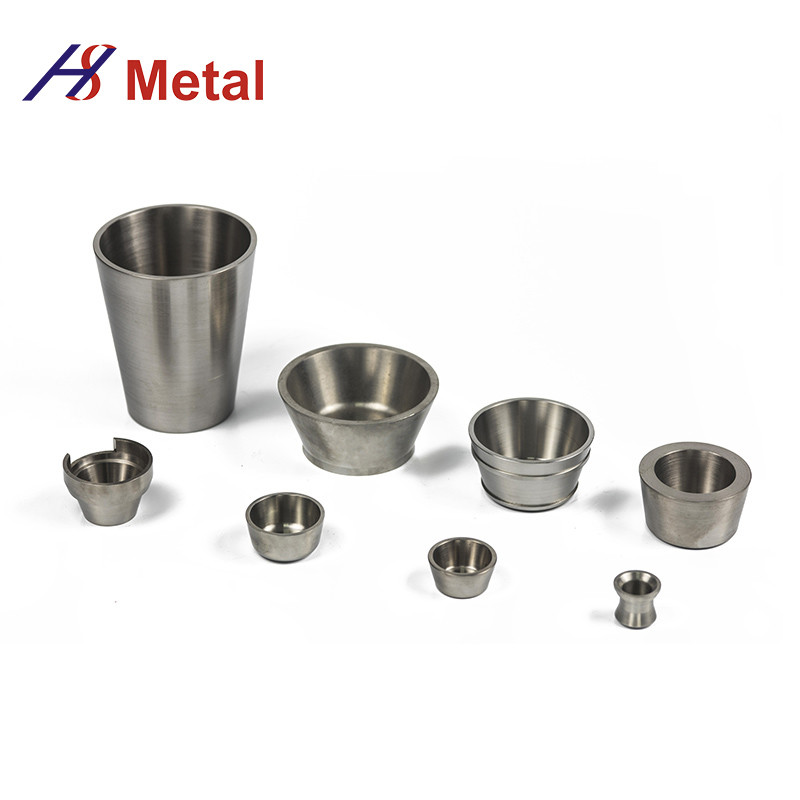

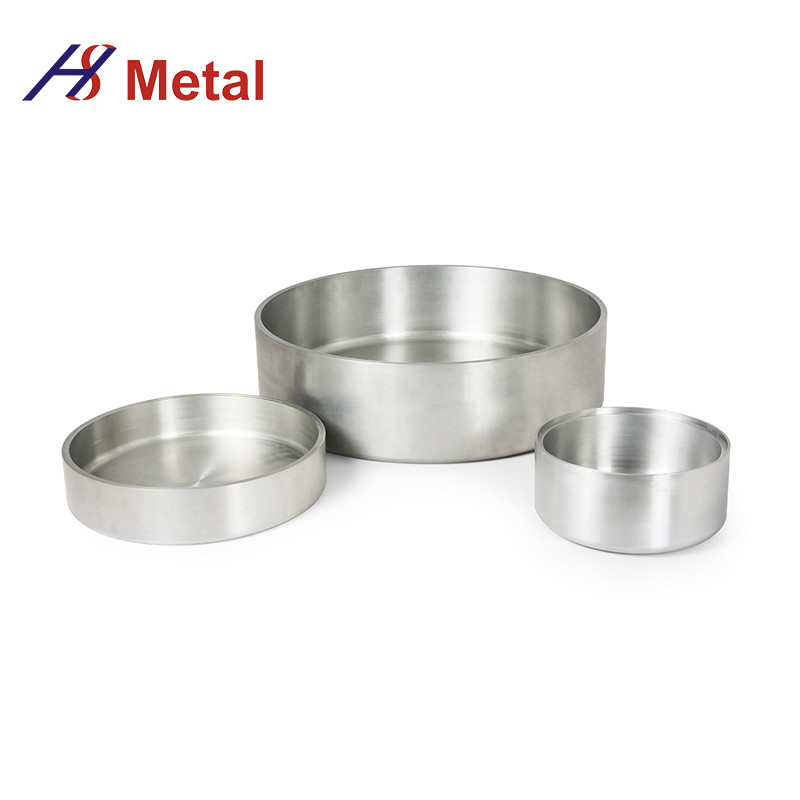

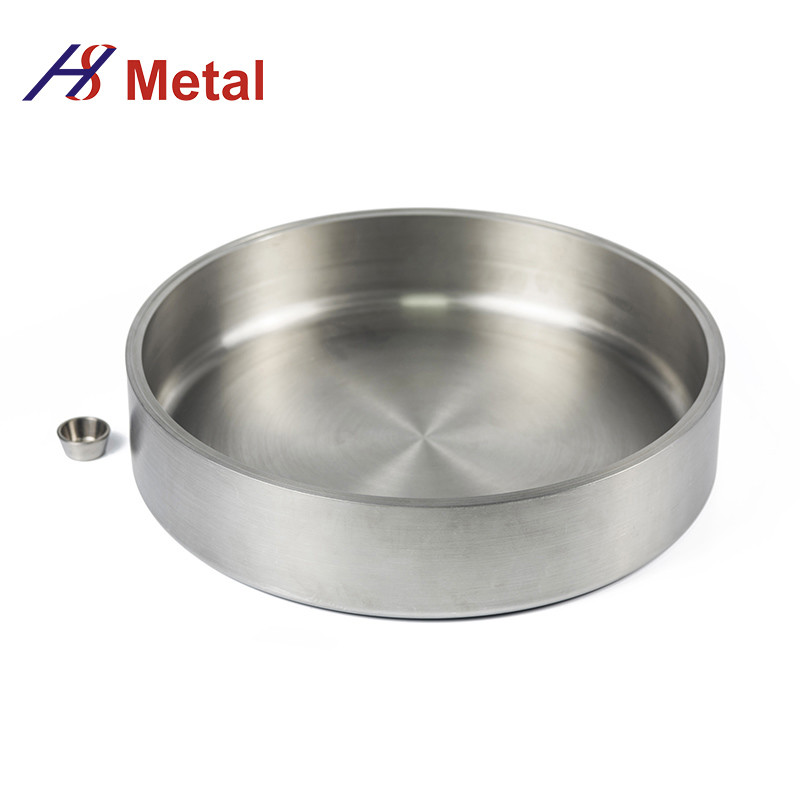

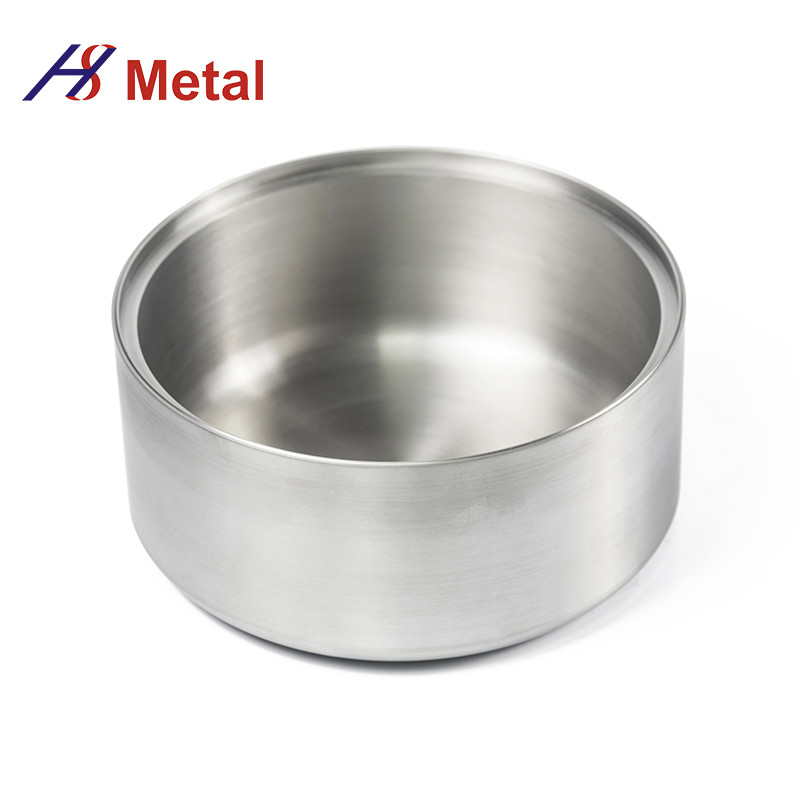

Vacuum Coating Mo Crucibles Molybdenum Barrel Shaped In Metallurgical Industry
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Molybdenum Crucibles | Standard | ASTM B386 |
|---|---|---|---|
| Material | 99.95% Min | Density | 10.20g/cm3 |
| Shape | Barrel-shaped | Usage | Melting Sapphire Growth ,metallurgy,vaccum Coating |
| High Light | Barrel Molybdenum Crucibles,Metallurgical Molybdenum Crucibles,Metallurgical Mo Crucible |
||
Product Description
Vacuum Coating Molybdenum Crucibles In Metallurgical Industry
Application of Molybdenum Crucibles
1. smelting of rare earth metals
2. heating elements of induction furnace
3. solar energy and sapphire.
Molybdenum CruciblesSize and Tolerance:
|
Delivery condition |
Size(mm) |
Tolerance(mm) |
||
|
Diament(mm) |
High(mm) |
Diament(mm) |
High(mm) |
|
|
Sintering |
10-500 |
10-600 |
±5 |
±5 |
|
Forging |
10-130 |
10-200 |
±1 |
±2 |
|
Sintering and Mechining |
10-450 |
10-500 |
±0.5 |
±1 |
Parameters
| Atomic number | 42 |
| CAS number | 7439-98-7 |
| Atomic mass | 95.94 [g/mol] |
| Melting point | 2620 °C |
| Boiling point | 4639 °C |
| Density at 20 °C | 10.22 [g/cm³] |
| Crystal structure | Body-centered cubic |
| Coefficient of linear thermal expansion at 20 °C | 5.2 × 10-6 [m/(mK)] |
| Thermal conductivity at 20 °C | 142 [W/(mK)] |
| Specific heat at 20 °C | 0.25 [J/(gK)] |
| Electrical conductivity at 20 °C | 17.9 × 106 [S/m] |
| Specific electrical resistance at 20 °C | 0.056 [(Ωmm2)/m] |
Features
High melting point
High thermal conductivity
Low vapor pressure
Excellent corrosion resistance against molten metals and glass
