Customized Molybdenum Bar Rods Chrome Moly Bar For High Temp Furnace
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Moly Bar | Purity | 99.95% Min |
|---|---|---|---|
| Application | High Temp Furnace | Surface | Smooth |
| Density | 10.2g/cm3 | Size | Customized |
| Highlight | Customized Molybdenum Bar,Customized Chrome Moly Bar,High Temp Furnace Chrome Moly Rod |
||
Product Description

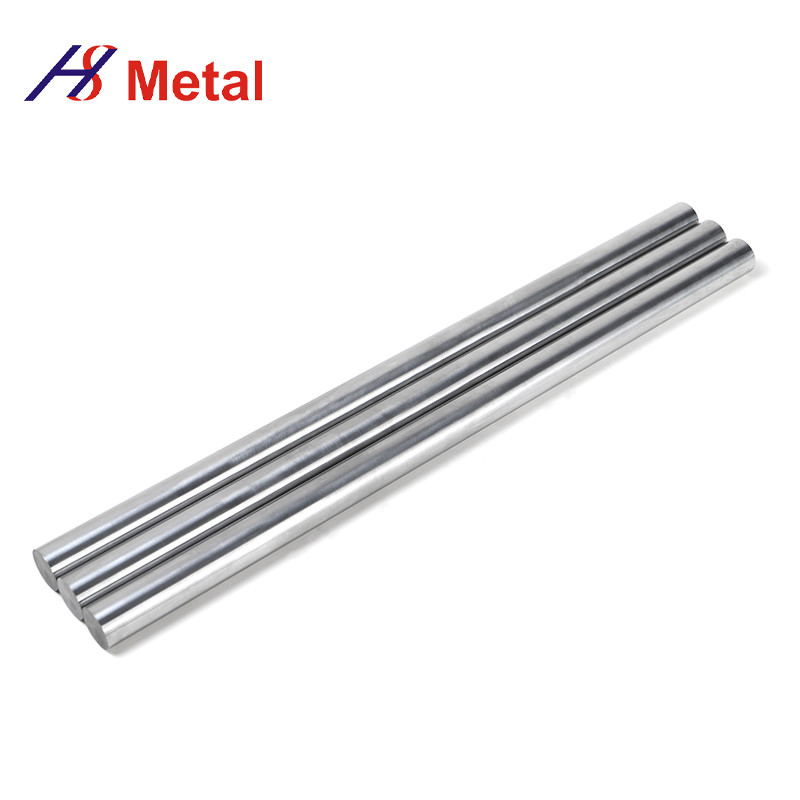

Customized Chrome Moly Bar Molybdenum Rods For High Temp Furnace
Customized Chrome Moly Bar is used for high temp furnace,suitable for high temperature structure parts in vacuum furnace
Moly Bar Surface Treatment :
• Alkali washing surface, by chemically cleaning to remove all the lubricants and oxides.
• Black surface, as machined.
• Ground surface, by centerless grinding for assurance of precise dimensions.
Specification
|
Diameter |
0.125 (3.18 mm) 6 (152 mm) |
|
LengthVarious lengths are available |
|
|
Purity |
Mo≥99.95% |
|
Material |
Pure Molybdenum, Molybdenum TZM, Mo- La alloy |
|
Standard |
ASTM B-387 |
Properties
*If the diameter is <0.125”, please check our Molybdenum wire.
Molybdenum rod and molybdenum bar are formed by sintering molybdenum powder. Molybdenum rod has a high melting point, good thermal conductivity, and low thermal expansion performance. It can be used to manufacture electric vacuum devices and electric light source parts, and can also be used as high-temperature heating elements, high-temperature structural parts, electrodes, etc.
Please view the molybdenum rod to see our standard sizes of round bars. The above are most of the standard sizes of our molybdenum rectangular bars. If you do not see the size of the molybdenum bar that you require, please feel free to contact us.

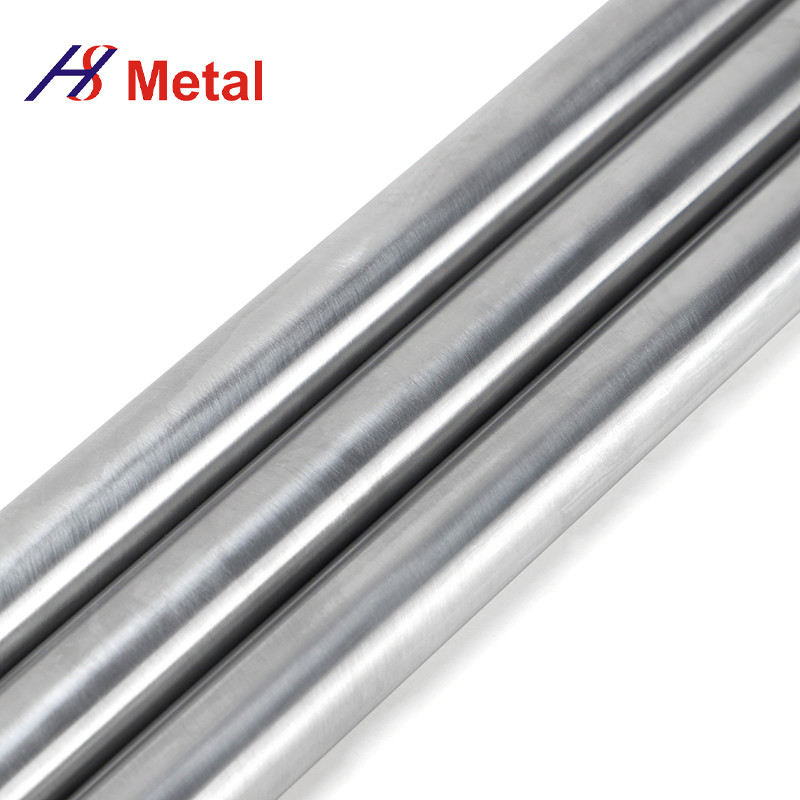

Molybdenum Rod Surface
Cleaned: The surface is chemically cleaned to remove all lubricants and oxides.
Black: The surface is either as swaged or as drawn and retains a coating of processing lubricants and oxides.
Chemical composition
|
Grade |
Molybdenum(Mo) (%) |
The impurity content is not more than (%) |
|||||||
|
Fe |
Ni |
Al |
Si |
Mg |
C |
N |
O |
||
|
Mo-1 |
99.95 |
0.01 |
0.005 |
0.002 |
0.01 |
0.005 |
0.01 |
0.003 |
0.008 |
|
Atomic number |
42 |
|
CAS number |
7439-98-7 |
|
Atomic mass |
95.94 [g/mol] |
|
Melting point |
2620 °C |
|
Boiling point |
4639 °C |
|
Density at 20 °C |
10.22 [g/cm] |
|
Crystal structure |
Body-centered cubic |
|
Coefficient of linear thermal expansion at 20 °C |
5.210-6[m/(mK)] |
|
Thermal conductivity at 20 °C |
142 [W/(mK)] |
|
Specific heat at 20 °C |
0.25 [J/(gK)] |
|
Electrical conductivity at 20 °C |
17.9106[S/m] |
|
Specific electrical resistance at 20 °C |
0.056 [(mm2)/m] |
Applications
Furnace pillars for sapphire crystal furnaces and other vacuum furnaces
Furnace heater for sapphire crystal furnaces and other vacuum furnaces
Tungsten headpieces for the industries of quartz
Stirring bars for glass smelting and rear-earth smelting
