Custom Tungsten Crucible Powder Metallurgy Sintering Polished
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Boiling Point | 5927°C | Density | 19.3g/cm3 |
|---|---|---|---|
| Elongation | ≥15% | Hardness | ≥HV850 |
| Material | Tungsten | Melting Point | 3410°C |
| Resistivity | ≤5.5μΩ.m | Shape | Crucible |
| Surface | Polished | Tensile Strength | ≥500MPa |
| Thermal Conductivity | ≥120W/m.K | Thermal Expansion Coefficient | 4.5×10-6/K |
| Thickness | Customized | ||
| Highlight | Custom Tungsten Crucible,Powder Metallurgy Tungsten Crucible |
||
Product Description

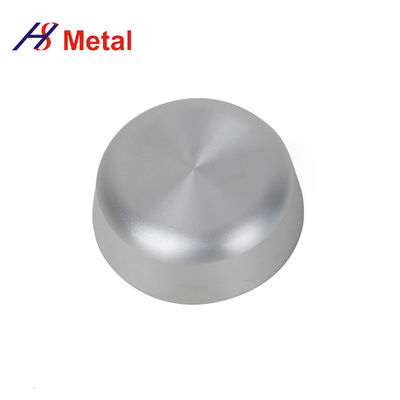

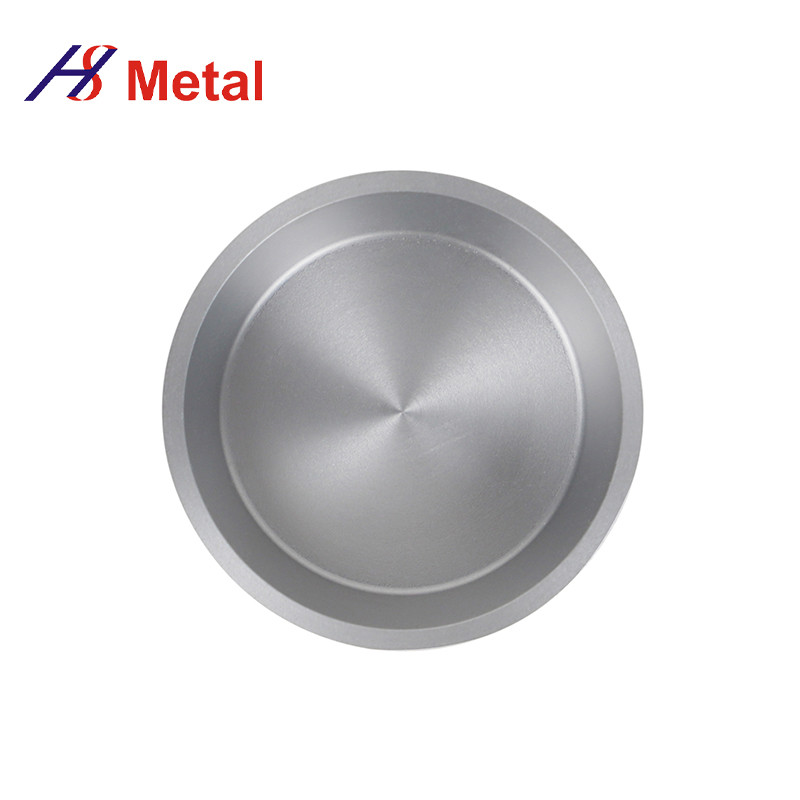

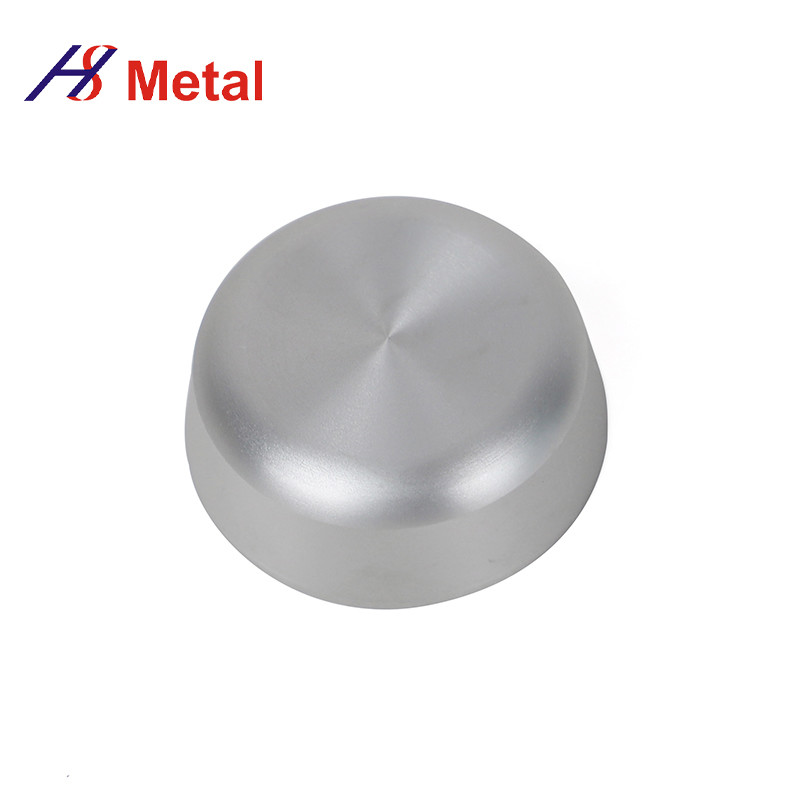

Powder Metallurgy Sintering Tungsten Crucible For Sale
Tungsten Crucible Character
Melting point:3410±20℃ Boiling point:5927℃
Density: 17.8 g/cm3~18.3 g/cm3; >18.5g/cm3
Relative molecular mass:183.84
Internal surface finish ≤1.6 CAS:7440-33-7
Tungsten Crucible Specification
| delivery condition | specification | tolearance | thickness | roughness | ||
| diameter | height | diameter | height | |||
| sintered | 10-550 | 10-750 | +/-5.0 | +/-5.0 | 8-20 | ＜3.5 |
| sintering finishing | 10-450 | 10-550 | +/-0.5 | +/-1.0 | 7-18 | ＜2.5 |
| Atomic number | 74 |
| CAS number | 7440-33-7 |
| Atomic mass | 183.84 [g/mol] |
| Melting point | 3420 °C |
| Boiling point | 5555 °C |
| Density at 20 °C | 19.25 [g/cm3] |
| Crystal structure | Body-centered cubic |
| Coefficient of linear thermal expansion at 20 °C | 4.410-6[m/(mK)] |
| Thermal conductivity at 20 °C | 164 [W/(mK)] |
| Specific heat at 20 °C | 0.13 [J/(gK)] |
| Electrical conductivity at 20 °C | 18.2106[S/m] |
| Specific electrical resistance at 20 °C | 0.055 [(mm2)/m] |
Tungsten Crucible Application
- Used for sapphire single crystal growth furnace
- Applied for quartz glass melting furnace;
- Used for rare earth smelting furnace;
- Used for sintering metal molding of high melting point;
- Widely used in other following industries: Ceramics and metallurgical industries, machinery processing and light industries.
