Non Ferrous Tungsten Crucible Melting Sintering Tungsten Materials
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | Non Ferrous Tungsten Crucible,Non Ferrous Melting Crucible,Sintering Tungsten Materials |
||
|---|---|---|---|
Product Description

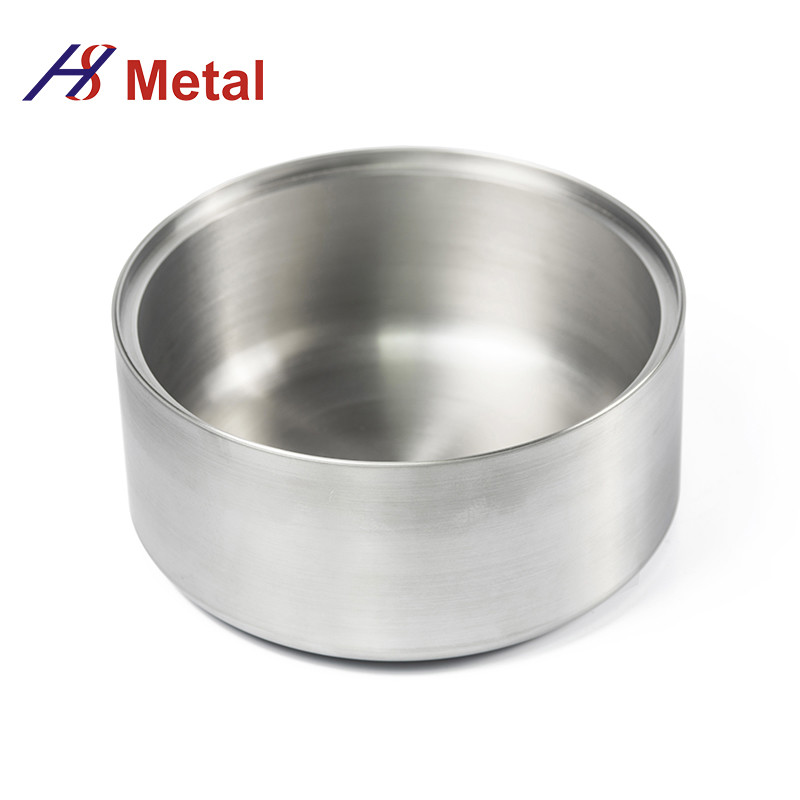

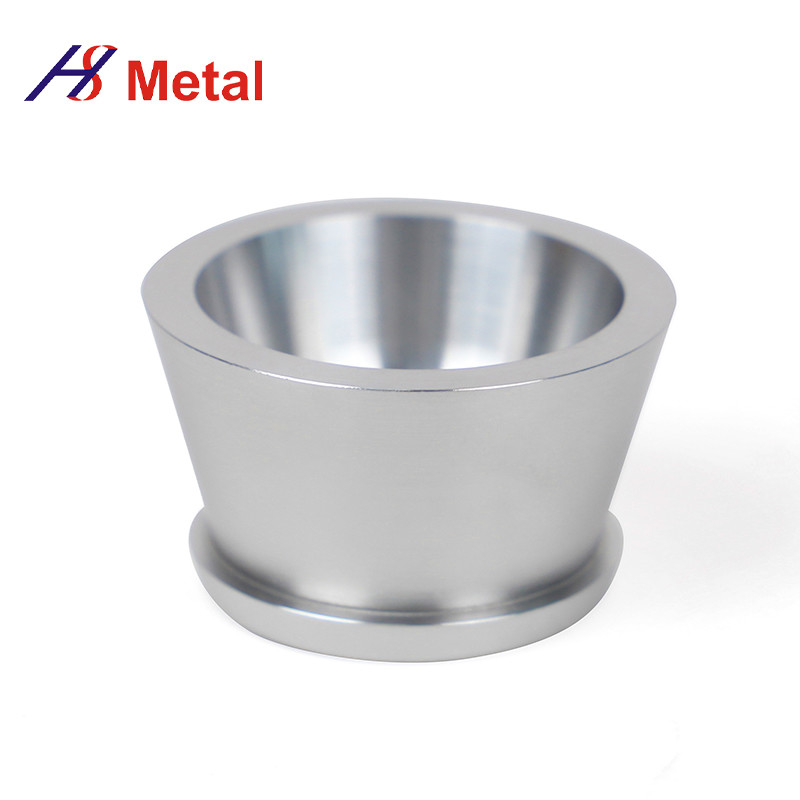

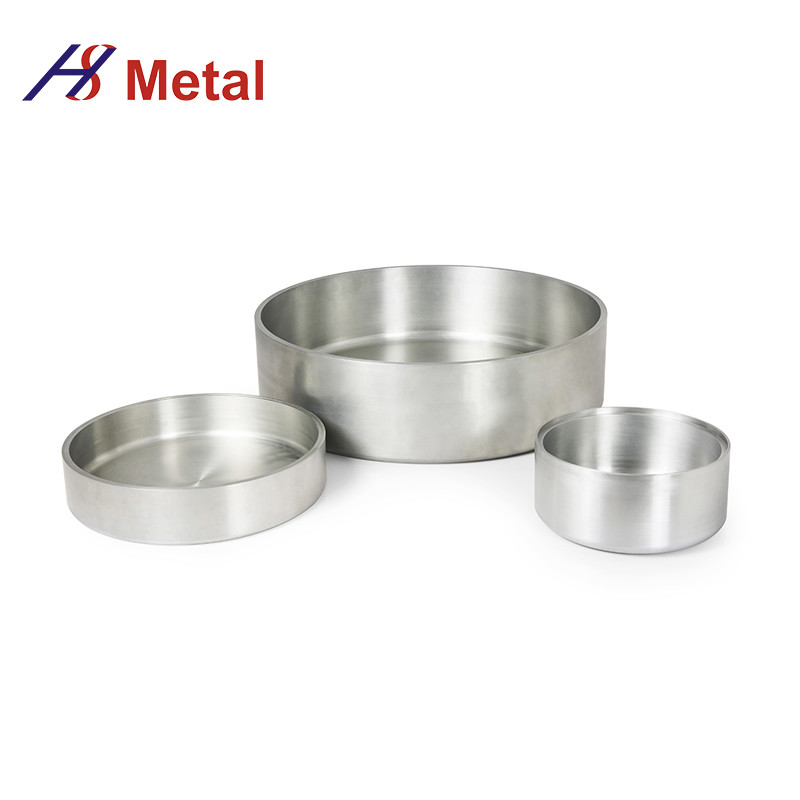

Non Ferrous Tungsten Materials Melting Crucible Sintering
Feature Tungsten Melting Crucible
1). Sintering tungsten crucible
Density: 18.0 - 18.7 g/cm3
Working temperature: 1800 - 2, 600 DC
Diameter: 100 - 600mm (max. )
Cubage: 0.5 - 100 litres
2). Forging tungsten crucible
Density: 18.5 - 19.0 g/cm3
Working temperature: 1800 - 2, 600 DC
Diameter: 18 - 120mm (max. )
Cubage: 20 - 500 ml
Specification
| delivery condition | specification | tolearance | thickness | roughness | ||
| diameter | height | diameter | height | |||
| sintered | 10-550 | 10-750 | +/-5.0 | +/-5.0 | 8-20 | ＜3.5 |
| sintering finishing | 10-450 | 10-550 | +/-0.5 | +/-1.0 | 7-18 | ＜2.5 |
| Atomic number | 74 |
| CAS number | 7440-33-7 |
| Atomic mass | 183.84 [g/mol] |
| Melting point | 3420 °C |
| Boiling point | 5555 °C |
| Density at 20 °C | 19.25 [g/cm3] |
| Crystal structure | Body-centered cubic |
| Coefficient of linear thermal expansion at 20 °C | 4.410-6[m/(mK)] |
| Thermal conductivity at 20 °C | 164 [W/(mK)] |
| Specific heat at 20 °C | 0.13 [J/(gK)] |
| Electrical conductivity at 20 °C | 18.2106[S/m] |
| Specific electrical resistance at 20 °C | 0.055 [(mm2)/m] |
Tungsten Melting Crucible Application
- Used for sapphire single crystal growth furnace
- Used for sintering metal molding of high melting point;
- Widely used in other following industries: Ceramics and metallurgical industries, machinery processing and light industries.
