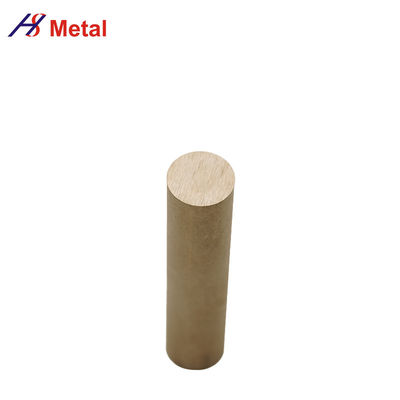

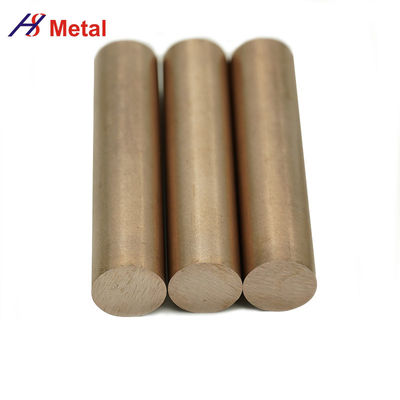

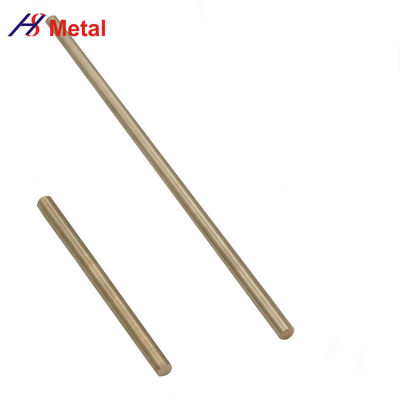

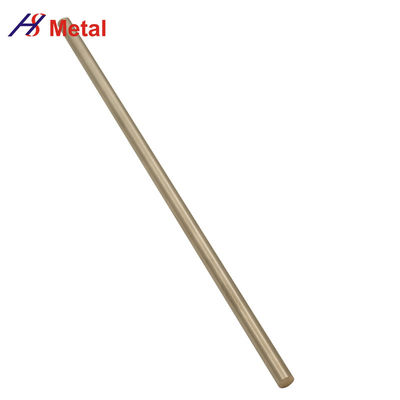

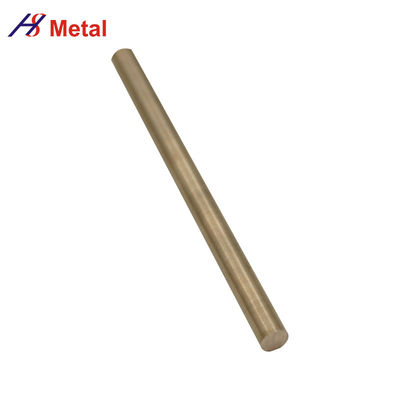

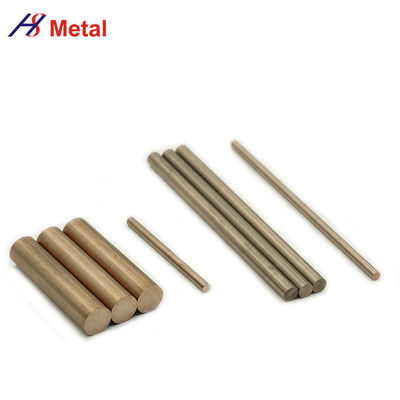

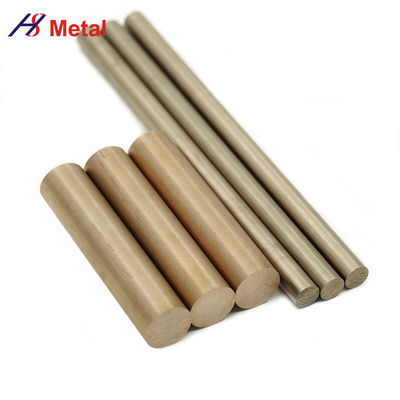

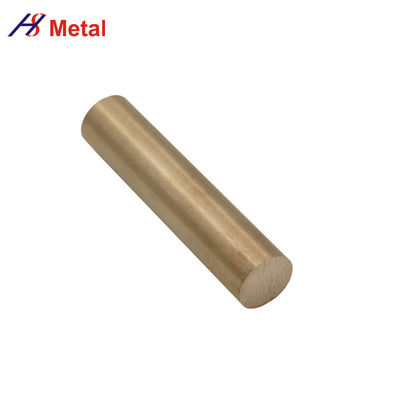

Tungsten Copper Rod Polished 75 W 25cu Bar Copper Tungsten Rod Tungsten Alloy Rods

Place of Origin	China
Brand Name	Hypersolid Metal
Minimum Order Quantity	Negotiate
Price	Negitionable
Packaging Details	Standard export cartons
Delivery Time	30 days after receiving down payment
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	10000sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Alloy Type	WCu	Cobalt Content	6-8%
Composition	Tungsten-Copper	Density	14.5 G/cm3
Electrical Conductivity	27-35% IACS	Electricalresistivity	0.22 μΩ·m
Grain Size	≤10μm	Impactstrength	20 J/cm2
High Light	polished tungsten copper rod , 75 w 25cu tungsten copper rod , 75 w 25cu tungsten alloy rods

Leave a Message

Product Description

1,Description:

Tungsten Copper Alloy Rod:
A tungsten copper alloy rod is a cylindrical-shaped product made by combining tungsten and copper in various proportions.
Tungsten copper alloy rods are widely used in industries where high thermal and electrical conductivity, as well as excellent wear resistance, are required.
These rods are known for their unique combination of properties, including high density, high melting point, and good machinability.

2,Specifications:

Property	Value (Unit)
Composition	Typically 50-90% Tungsten, 10-50% Copper
Density	14.0-16.5 g/cm³
Melting Point	3,000-3,400 degrees Celsius
Electrical Conductivity	20-45% IACS
Thermal Conductivity	180-230 W/m·K
Coefficient of Thermal Expansion	6.5-9.0 x 10^-6 per degree Celsius
Young's Modulus	250-320 GPa
Hardness (Vickers)	200-300 HV
Tensile Strength	600-900 MPa
Elongation at Break	3-15%

Tungsten Copper Rod Polished 75 W 25cu Bar Copper Tungsten Rod Tungsten Alloy Rods 0
