80 20 / 75 25 Tungsten Alloy Products Rings Easy Cutting For Electronics
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | WCu Alloy Rings | Material | Tungsten Copper Alloy |
|---|---|---|---|
| Shape | Dics&Ring | Application | Electrical |
| Grade | 80 20 / 75 25 | Usage | EDM&ECM Electrodes, Electronics, Metallurgy, Machinery |
| Highlight | Tungsten Alloy Products Rings,Electronics Tungsten Alloy Products |
||
Product Description

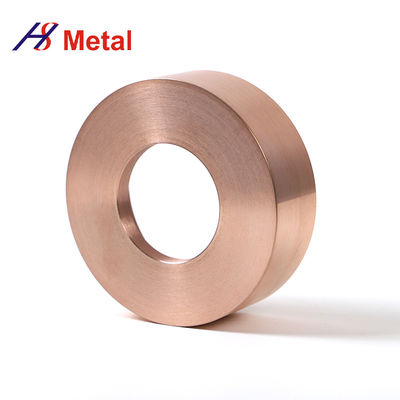

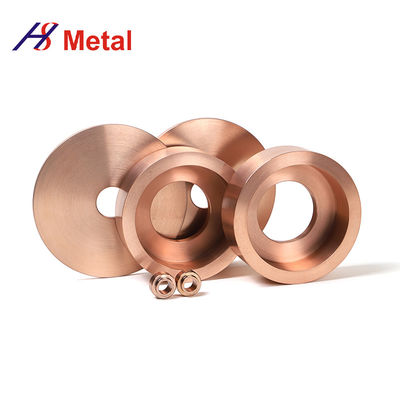

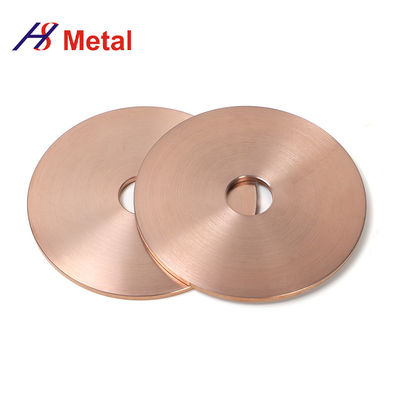

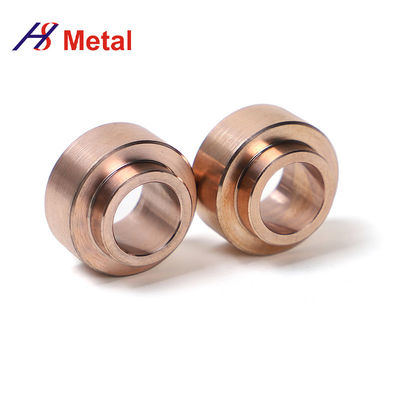

80 20 / 75 25 Tungsten Alloy Products WCu Alloy Rings
WCu Alloy Rings Advantage
Large ratio, easy cutting, excellent mechanical properties, high modulus of elasticity, can effectively absorb x-rays and gamma rays (absorption of x-rays and gamma rays by about 30%-40% higher than lead) for environmental and health harm
use
Radiation shielding, counterweight, uranium material, electric anvil, submunition, armored arm, high voltage electrical contact, resistance welding electrode, dart rod
Parameters
|
Class |
Chemical Composition (wt%) |
Density |
Hardness |
Resistivity |
IACS |
Bending Strength |
||
|
Cu |
Total Impurities≤ |
W |
g/cm3 ≥ |
HB Kgf/mm2 ≥ |
μΩ.cm ≤ |
% ≥ |
MPa ≥ |
|
|
W50/Cu50 |
50±2.0 |
0.5 |
Balance |
11.85 |
115 |
3.2 |
54 |
— |
|
W55/Cu45 |
45±2.0 |
0.5 |
Balance |
12.3 |
125 |
3.5 |
49 |
— |
|
W60/Cu40 |
40±2.0 |
0.5 |
Balance |
12.75 |
140 |
3.7 |
47 |
— |
|
W65/Cu35 |
35±2.0 |
0.5 |
Balance |
13.3 |
155 |
3.9 |
44 |
— |
|
W70/Cu30 |
30±2.0 |
0.5 |
Balance |
13.8 |
175 |
4.1 |
42 |
790 |
|
W75/Cu25 |
25±2.0 |
0.5 |
Balance |
14.5 |
195 |
4.5 |
38 |
885 |
|
W80/Cu20 |
20±2.0 |
0.5 |
Balance |
15.15 |
220 |
5 |
34 |
980 |
|
W85/Cu15 |
15±2.0 |
0.5 |
Balance |
15.9 |
240 |
5.7 |
30 |
1080 |
|
W90/Cu10 |
10±2.0 |
0.5 |
Balance |
16.75 |
260 |
6.5 |
||
Features
Tungsten-copper alloy has a wide range of applications, most of which are used in aerospace, aviation, electronics, electric power, metallurgy, machinery, sports equipment and other industries. Secondly, it is also used to manufacture the contacts of high-voltage electrical switches and high-temperature components such as rocket nozzle throat liner and tail rudder, which are resistant to arc erosion, and also used as electrodes for electrical machining, high-temperature molds and other occasions requiring conductive and thermal conductivity and high-temperature use.
Applications
1. Arcing contacts and vaccum contacts in high and medium voltage breakers or vaccum interruptors
2. Electrodes in electric spark erosion cutting machines
3. Electrodes for resistance welding.
