OEM Copper Tungsten Electrodes WCu 90/10 85/15 80/20 75/25 70/30 60/40

  • OEM Copper Tungsten Electrodes WCu 90/10 85/15 80/20 75/25 70/30 60/40
  • OEM Copper Tungsten Electrodes WCu 90/10 85/15 80/20 75/25 70/30 60/40
  • OEM Copper Tungsten Electrodes WCu 90/10 85/15 80/20 75/25 70/30 60/40
  • OEM Copper Tungsten Electrodes WCu 90/10 85/15 80/20 75/25 70/30 60/40
  • OEM Copper Tungsten Electrodes WCu 90/10 85/15 80/20 75/25 70/30 60/40
  • OEM Copper Tungsten Electrodes WCu 90/10 85/15 80/20 75/25 70/30 60/40
  • OEM Copper Tungsten Electrodes WCu 90/10 85/15 80/20 75/25 70/30 60/40
Model Number Copper Tungsten Electrodes
Minimum Order Quantity Negotiate
Price Negitionable
Packaging Details Standard export cartons
Delivery Time 30 days after receiving down payment
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 1000sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Copper Tungsten Electrodes Material Tungsten And Copper
Shape Bar&Rod Application Electrical
Grade W/Cu 90/10 85/15 80/20 75/25 70/30 60/40 Usage EDM&ECM Electrodes, Electronics, Metallurgy, Machinery
High Light

Copper Tungsten Electrodes OEM

,

WCu10 Copper Tungsten Electrodes
Leave a Message
Product Description

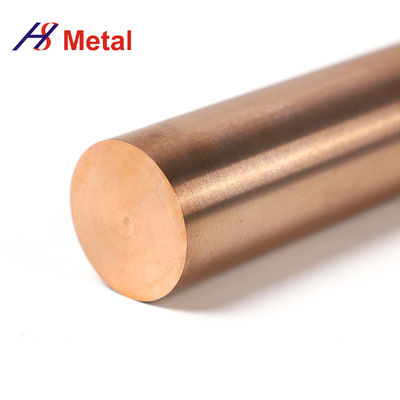

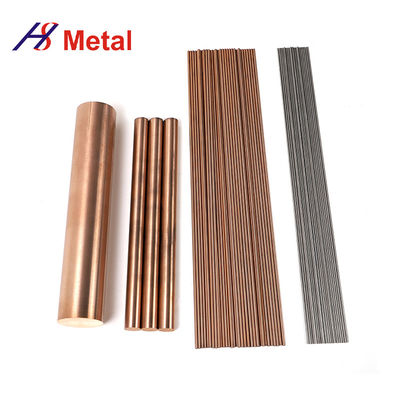

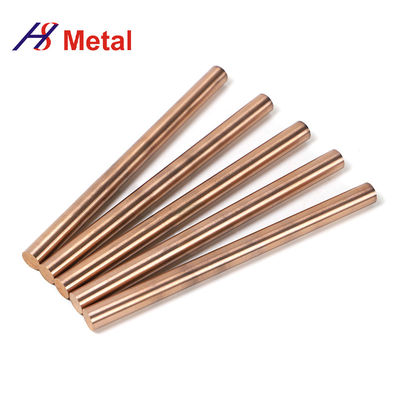

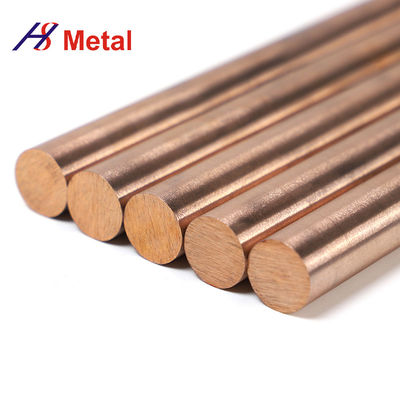

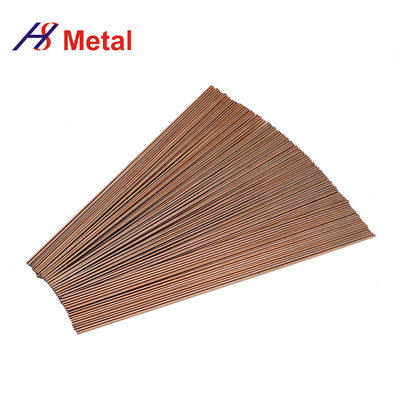

W/Cu 90/10 85/15 80/20 75/25 70/30 60/40 Copper Tungsten Electrodes



Quick details :



Grade: WCu10 WCu15 WCu20 WCu25 WCu30 WCu50
Shape: rod/bar
Copper Content: 7%-50%
Density: 11.85g/cm3-17.2g/cm3
Surface: polishing, burnishing,black surface
Dimension: customized



Parameters



Class

Chemical Composition (wt%)

Density

Hardness

Resistivity

IACS

Bending Strength

Cu

Total Impurities≤

W

g/cm3 ≥

HB Kgf/mm2 ≥

μΩ.cm ≤

% ≥

MPa ≥

W50/Cu50

50±2.0

0.5

Balance

11.85

115

3.2

54

—

W55/Cu45

45±2.0

0.5

Balance

12.3

125

3.5

49

—

W60/Cu40

40±2.0

0.5

Balance

12.75

140

3.7

47

—

W65/Cu35

35±2.0

0.5

Balance

13.3

155

3.9

44

—

W70/Cu30

30±2.0

0.5

Balance

13.8

175

4.1

42

790

W75/Cu25

25±2.0

0.5

Balance

14.5

195

4.5

38

885

W80/Cu20

20±2.0

0.5

Balance

15.15

220

5

34

980

W85/Cu15

15±2.0

0.5

Balance

15.9

240

5.7

30

1080

W90/Cu10

10±2.0

0.5

Balance

16.75

260

6.5



Features



Tungsten-copper alloy has a wide range of applications, most of which are used in aerospace, aviation, electronics, electric power, metallurgy, machinery, sports equipment and other industries. Secondly, it is also used to manufacture the contacts of high-voltage electrical switches and high-temperature components such as rocket nozzle throat liner and tail rudder, which are resistant to arc erosion, and also used as electrodes for electrical machining, high-temperature molds and other occasions requiring conductive and thermal conductivity and high-temperature use.



Applications



1. Arcing contacts and vaccum contacts in high and medium voltage breakers or vaccum interruptors

2. Electrodes in electric spark erosion cutting machines

3. Electrodes for resistance welding.
