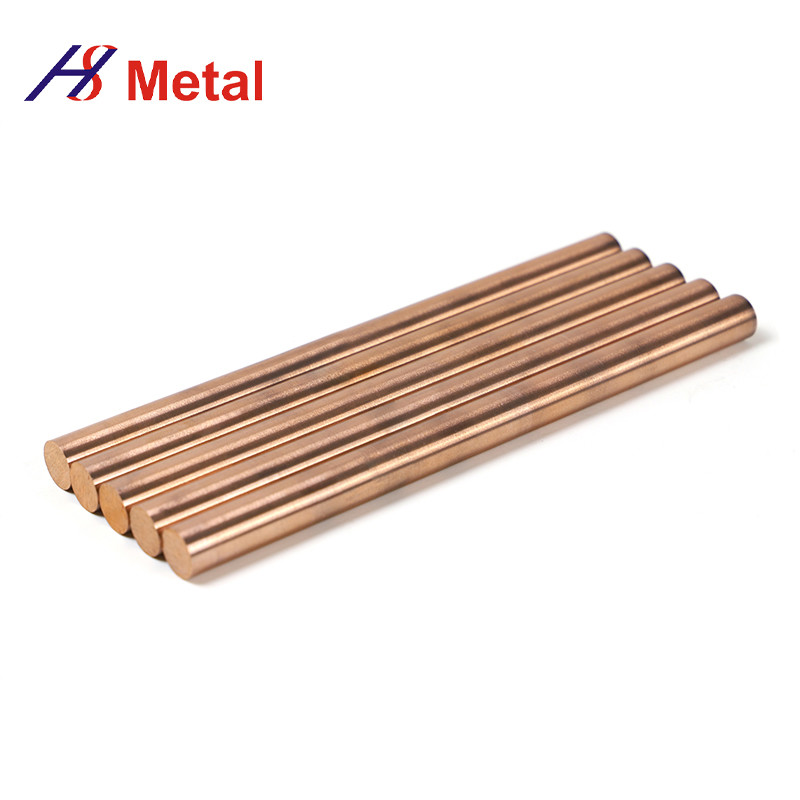

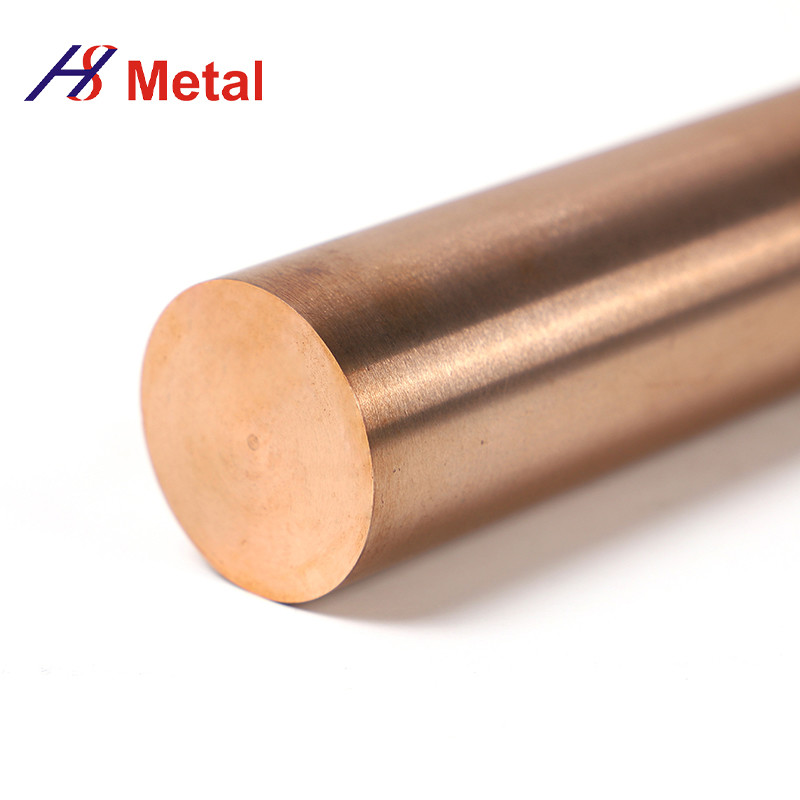

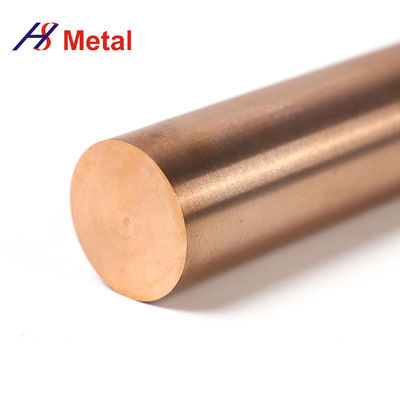

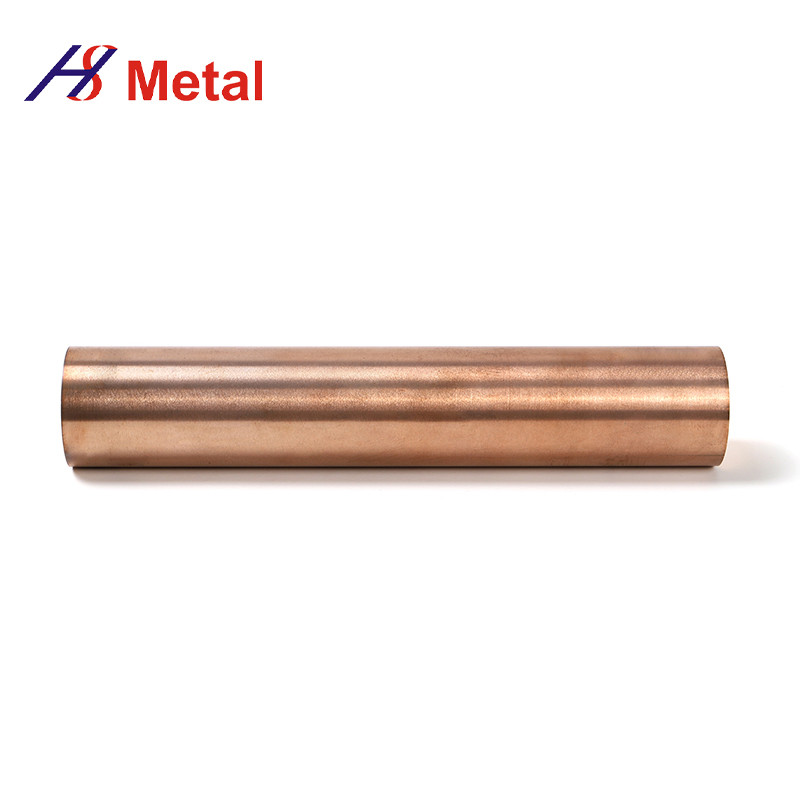

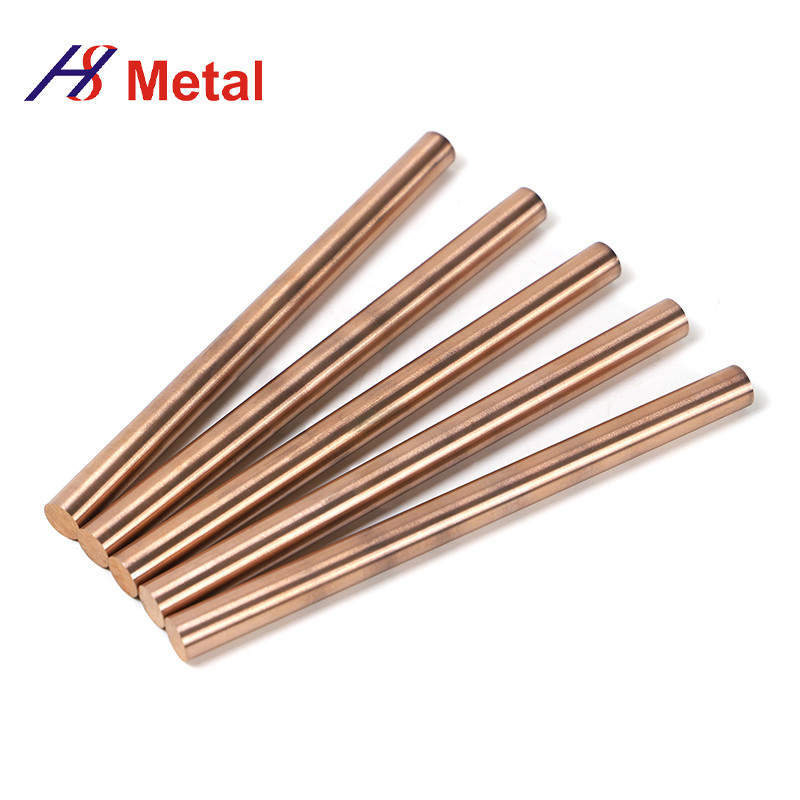

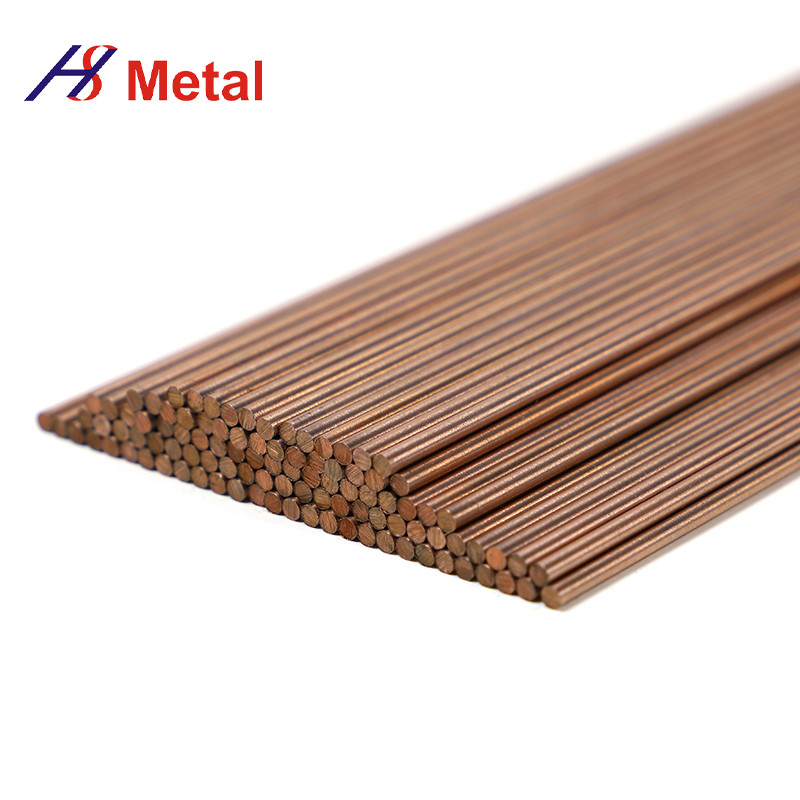

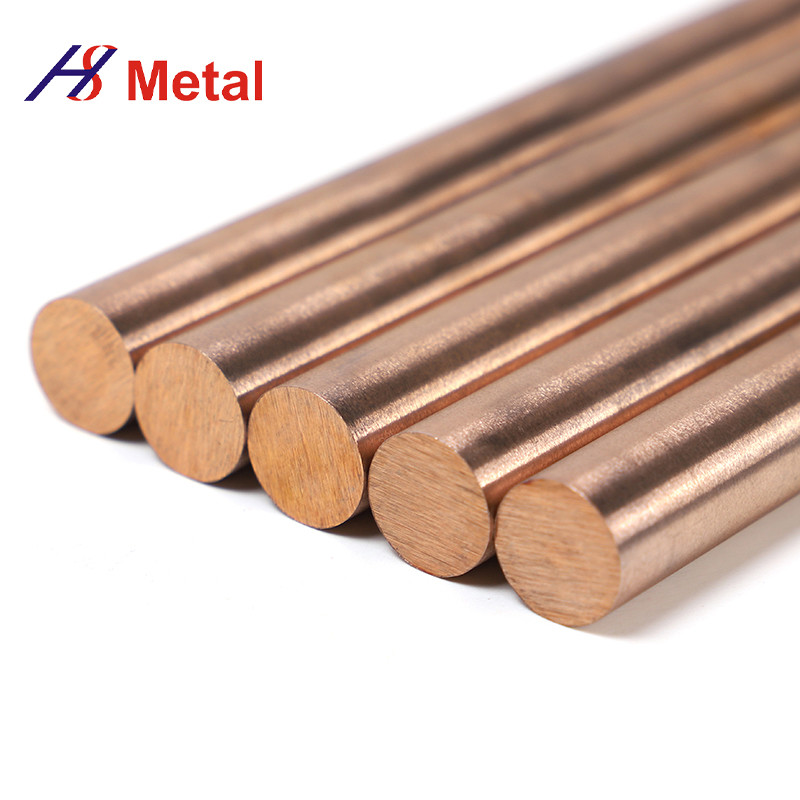

WCu alloy tungsten rod sintered copper tungsten rod tungsten copper alloy rod
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Density | 15.63 G/cm3 | Electrical Resistivity | ≤0.1 μΩ·m |
|---|---|---|---|
| Electricalresistivity | 0.22 μΩ·m | Elongation | 1-5% |
| Impactstrength | 20 J/cm2 | Meltingpoint | 1495℃ |
| Tensile Strength | 1100-1300 MPa | Yield Strength | >1000MPa |
Product Description
1,Description:
Material: WCu alloy is composed of tungsten (W) and copper (Cu) in varying proportions. The most common composition is tungsten content ranging from 70% to 90% by weight, with the remaining percentage being copper.
Density: The density of WCu alloy typically ranges from 14.5 to 16.5 grams per cubic centimeter (g/cm³), depending on the tungsten and copper ratios.
Thermal Conductivity: WCu alloy exhibits a high thermal conductivity due to the presence of copper. The thermal conductivity can range from 180 to 230 watts per meter-kelvin (W/m·K), depending on the specific composition.
2,Specifications:
| Property | Description |
|---|---|
| Composition | Tungsten (W) and Copper (Cu) alloy |
| Tungsten Content | Typically 70% to 90% by weight |
| Copper Content | Remaining percentage by weight |
| Density (g/cm³) | 14.5 to 16.5 |
| Thermal Conductivity (W/m·K) | 180 to 230 |
| Electrical Conductivity | 20% to 50% IACS (International Annealed Copper Standard) |
| Coefficient of Thermal Expansion (CTE) (ppm/°C) | 6 to 10 |
| Melting Point (°C) | Approximately 3,400 |
| Corrosion Resistance | Good resistance to corrosion |
| Mechanical Strength | High mechanical strength |
