ASTM B760 Tungsten Weight Tungsten Counterweight For Crankshaft
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Tungsten Weight | Material | Pure Tungsten |
|---|---|---|---|
| Standard | ASTM B760 | Density | 19.2 G/cm3 |
| Processing | Sintering, Rolling, Forging, Machining | Feature | High Density |
| High Light | ASTM B760 Tungsten Weight,Crankshaft Tungsten Counterweight,Crankshaft Tungsten Weight |
||
Product Description

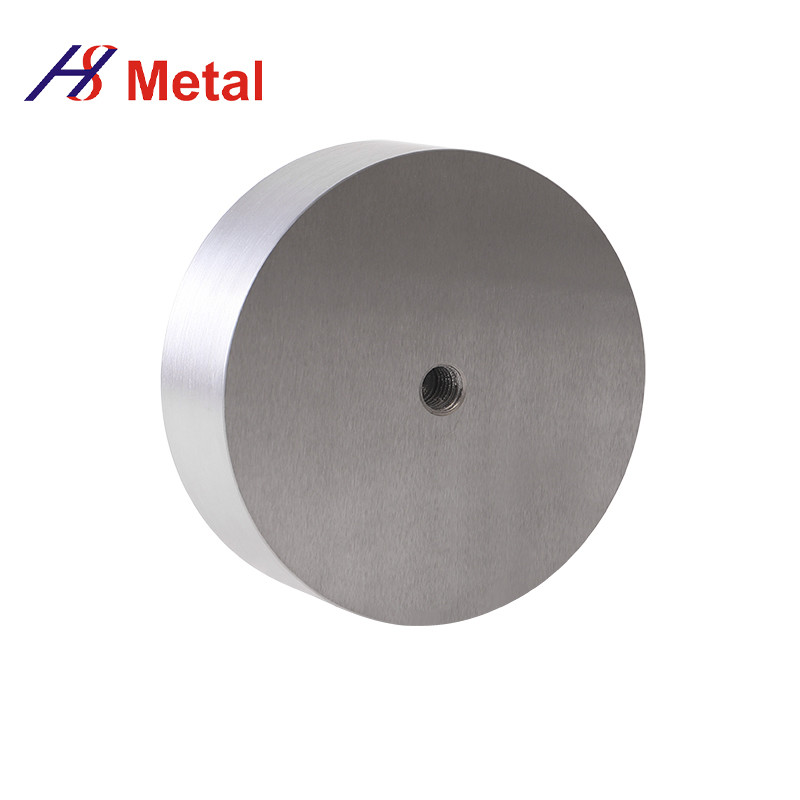

ASTM B760 Tungsten Weight Tungsten Counterweight For Crankshaft
Introduction
Tungsten Weight Tungsten Counterweight is added in auto racing to stabilize the car and ensure the car is within the required weight class for the race by putting more weight over the drive wheels.
Feature of Tungsten Counterweight
1. High density
2. High wear-resistant
3. High thermal conductivity with low thermal expansion coefficient
4. High vibration-damping capacity and high Young's modulus
5. High oxidation resistance and corrosion resistance
Specification
|
Product Name |
tungsten weight |
|
Material |
Pure tungsten |
|
Standard |
ASTM B760 |
|
Processing |
Sintering, Rolling, Forging, machining |
|
Density |
19.2 g/cm3 |
|
Dimension Range |
Minimum size: thickness:3mm width:3mm length:3mm Maximum size: customized |
|
Atomic number |
74 |
|
CAS number |
7440-33-7 |
|
Atomic mass |
183.84 [g/mol] |
|
Melting point |
3420 °C |
|
Boiling point |
5555 °C |
|
Density at 20 °C |
19.25 [g/cm3] |
|
Crystal structure |
Body-centered cubic |
|
Coefficient of linear thermal expansion at 20 °C |
4.4 × 10-6 [m/(mK)] |
|
Thermal conductivity at 20 °C |
164 [W/(mK)] |
|
Specific heat at 20 °C |
0.13 [J/(gK)] |
|
Electrical conductivity at 20 °C |
18.2 × 106 [S/m] |
|
Specific electrical resistance at 20 °C |
0.055 [(Ωmm2)/m] |
Application
Tungsten Counterweight is used in crankshaft as a counterweight. The tungsten alloy crankshaft counterweights are designed to offset the weight of the rod and pistons. The crankshafts must be balanced to customized rod and piston combinations. As tungsten alloy has high density, adding WHA balance weight into the racing car has a good effected in optimizing the performance of the racing car during the racing process, which contributes to better control of the car's movement.
