W1 W2 High Purity Tungsten Boat Custom Vacuum Evaporation Coating
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Tungsten Boat Evaporation Coating | Size | Customized According To Customer Needs |
|---|---|---|---|
| Material | Pure Tungsten | Grade | W1 W2 |
| Application | Evaporation Coating | Purity | 99.95% |
| Highlight | High Purity Tungsten Boat,Vacuum Evaporation Coating Tungsten Boat |
||
Product Description

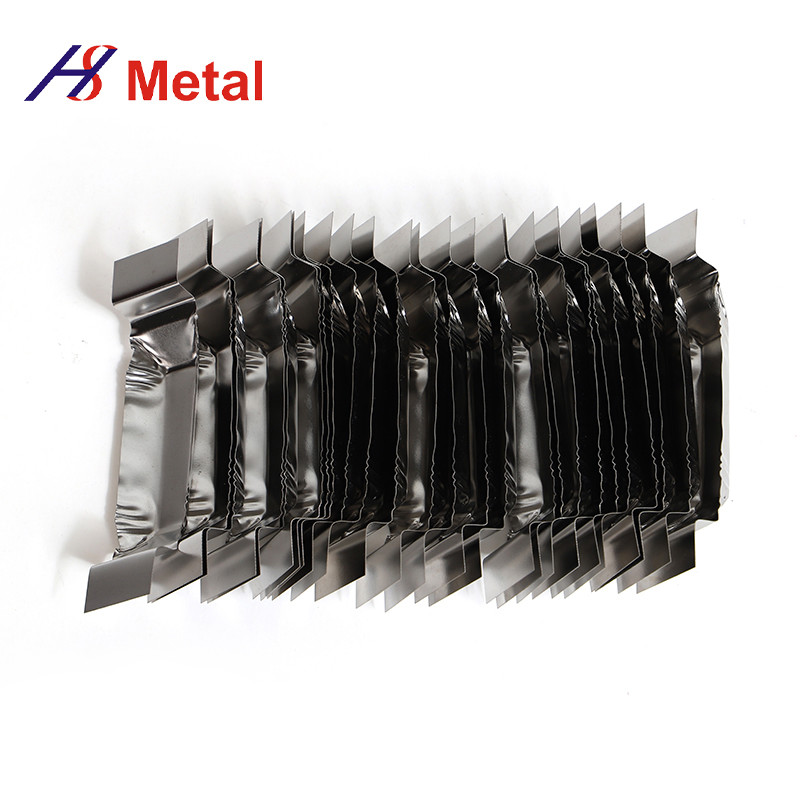

W1 W2 High Purity Tungsten Boat Vacuum Evaporation Coating
Tungsten Boat can provide a reliable guarantee of product quality for the customers. We adopt excellent tungsten materials with high purity, advanced techniques, and special treatments to the product surfaces. Our company can produce tungsten boats for vacuum evaporation according to the customer's drawing.
Parameters
|
Products Name |
W1 W2 High Purity Tungsten Boat Vacuum Evaporation Coating |
|||
|
Size |
Customized according to customer needs |
|||
|
Material |
pure tungsten |
|||
|
Grade |
W1 |
|||
|
Density |
19.2g/cm3 |
|||
|
Surface |
polished |
|||
|
Application |
Evaporation boat |
|||
|
Atomic number |
74 |
|
CAS number |
7440-33-7 |
|
Atomic mass |
183.84 [g/mol] |
|
Melting point |
3420 °C |
|
Boiling point |
5555 °C |
|
Density at 20 °C |
19.25 [g/cm3] |
|
Crystal structure |
Body-centered cubic |
|
Coefficient of linear thermal expansion at 20 °C |
4.4 × 10-6 [m/(mK)] |
|
Thermal conductivity at 20 °C |
164 [W/(mK)] |
|
Specific heat at 20 °C |
0.13 [J/(gK)] |
|
Electrical conductivity at 20 °C |
18.2 × 106 [S/m] |
|
Specific electrical resistance at 20 °C |
0.055 [(Ωmm2)/m] |
Application
1. Metallizing, Electron-beam Spraying, sintering annealing in reducing atmosphere in electronics.
2. Military and light industries.
3. Evaporate small lengths of wire or evaporate materials.
4. A tungsten boat is ideal for use in small evaporation systems.
5. Tungsten boat sources are used for the vacuum evaporation of materials.
