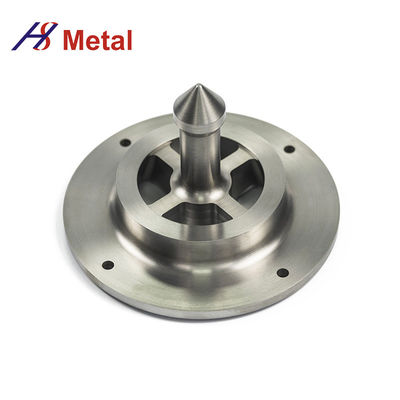

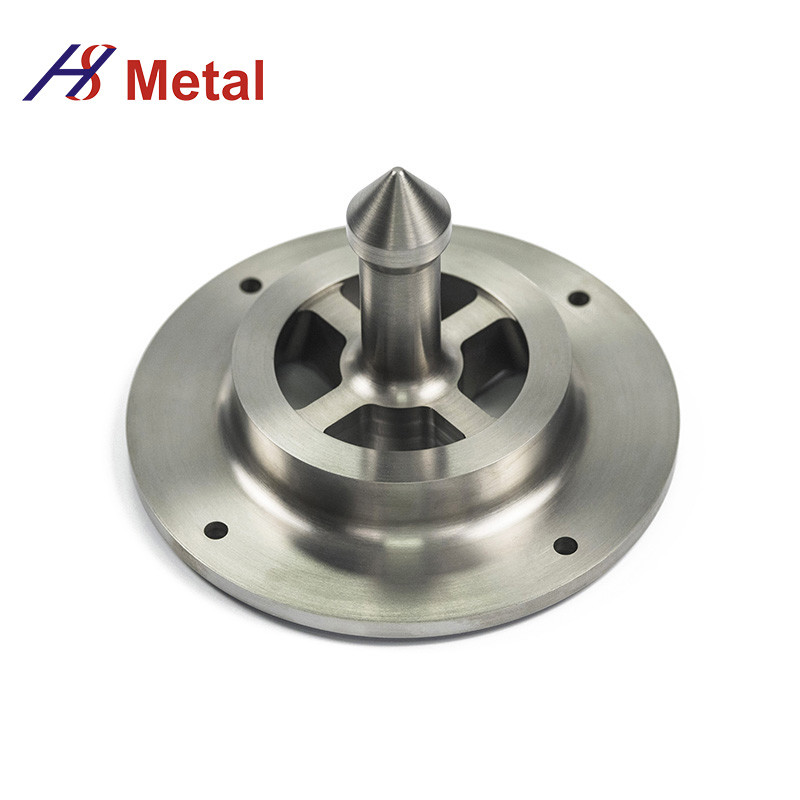

ASTM B 777 Metal Tungsten Heavy Alloy Sintering Parts High Density
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Tungsten Heavy Alloy | Composition | 90W7Ni3Fe 92W5Ni3Fe 95W3Ni2Fe 97W2Ni1Fe |
|---|---|---|---|
| Standard | ASTM B 777 | Grade | Class 1 Class 2 Class 3 Class 4 |
| Heat Treatment | Sintering | Feature | High Density ,High Wear-resistant |
| High Light | ASTM Tungsten Heavy Alloy,ASTM Heavy Metal Tungsten Alloy,Sintering Parts Tungsten Heavy Alloy |
||
Product Description
ASTM B 777 Tungsten Heavy Alloy Sintering Parts
Introduction
The density of tungsten heavy alloy is very high. Its density is twice of steel. It is massively applied to balancing weight mold, counterweight, and high-temperature molds.
Tungsten heavy alloy has low thermal coefficient but it has high absorption ability and high-energy rays. It also can also be made into a protective shield and high-energy rays as parts of military defense.
Feature
1. High density
2. High wear-resistant
3. High thermal conductivity with low thermal expansion coefficient
4. High vibration-damping capacity and high Young's modulus
5. High oxidation resistance and corrosion resistance
Parameters
|
AMS-T-21014
|
Class 1
|
Class 2
|
Class 3
|
Class 4
|
|
Composition
|
90W7Ni3Fe
|
92W5Ni3Fe
|
95W3Ni2Fe
|
97W2Ni1Fe
|
|
Density (g/cm3)
|
17.1±0.15
|
17.50±0.15
|
18.10±0.15
|
18.50±0.15
|
|
Heat Treatment
|
Sintering
|
Sintering
|
Sintering
|
Sintering
|
|
Tensile Strength (Mpa)
|
900-1000
|
900-1000
|
920-1100
|
920-1100
|
|
Elongation (%)
|
18-29
|
16-26
|
10-22
|
6-13
|
|
Hardness (HRC)
|
24-28
|
25-29
|
27-32
|
28-36
|
|
Mil-T-21014
|
Class1
|
Class2
|
|
Composition
|
90%W,
6%Ni4%Cu |
95%W,
3.5%Ni 1.5% Cu |
|
Density (gm/cc; lbs/in3)
|
17;0.614
|
18;0.65
|
|
Hardness (RC)
|
24
|
27
|
|
Ultimate Tensile Strength (PSI)
|
110,000
|
110,000
|
|
Yield Strength, 2% Offset (PSI)
|
80,000
|
85,000
|
|
Elongation (% In 1“)
|
6
|
7
|
|
Proportional Elastic Limit (PSI)
|
45,000
|
45,000
|
