90W7Ni3Fe 92W5Ni3Fe Tungsten Heavy Alloy Nickel Iron Ground Surface
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Tungsten Nickel Iron Alloy | Composition | 90W7Ni3Fe 92W5Ni3Fe 95W3Ni2Fe 97W2Ni1Fe |
|---|---|---|---|
| Standard | ASTM B 777 Standard | Grade | Class 1 Class 2 Class 3 Class 4 |
| Surface | Polished / Ground | Feature | High Density ,High Wear-resistant |
| High Light | Ground Tungsten Heavy Alloy,92W5Ni3Fe Tungsten Heavy Alloy,Ground Tungsten Nickel Iron Alloy |
||
Product Description

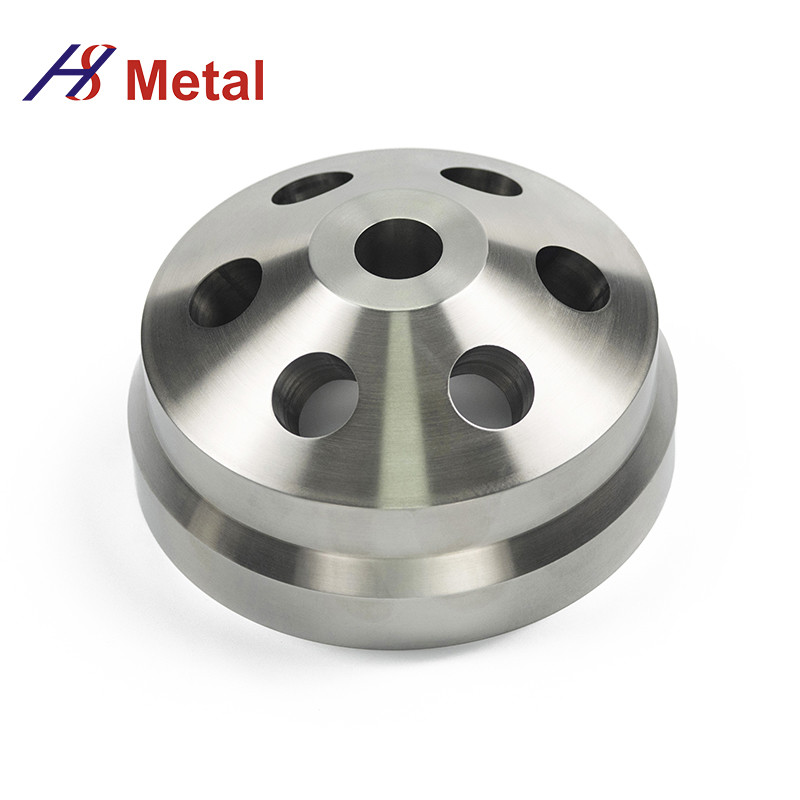

90W7Ni3Fe 92W5Ni3Fe Tungsten Nickel Iron Alloy Polished / Ground Surface
Tungsten Alloy metals mainly including W-Ni-Fe and W-Ni-Cu, are extensively used in military equipment, mechanical manufacturing, aircraft components, medical shields and sports equipment.
Tungsten Nickel Iron Alloy Feature
1. High density
2. High wear-resistant
3. High thermal conductivity with low thermal expansion coefficient
Parameters
|
AMS-T-21014
|
Class 1
|
Class 2
|
Class 3
|
Class 4
|
|
Composition
|
90W7Ni3Fe
|
92W5Ni3Fe
|
95W3Ni2Fe
|
97W2Ni1Fe
|
|
Density (g/cm3)
|
17.1±0.15
|
17.50±0.15
|
18.10±0.15
|
18.50±0.15
|
|
Heat Treatment
|
Sintering
|
Sintering
|
Sintering
|
Sintering
|
|
Tensile Strength (Mpa)
|
900-1000
|
900-1000
|
920-1100
|
920-1100
|
|
Elongation (%)
|
18-29
|
16-26
|
10-22
|
6-13
|
|
Hardness (HRC)
|
24-28
|
25-29
|
27-32
|
28-36
|
|
Mil-T-21014
|
Class1
|
Class2
|
|
Composition
|
90%W,
6%Ni4%Cu |
95%W,
3.5%Ni 1.5% Cu |
|
Density (gm/cc; lbs/in3)
|
17;0.614
|
18;0.65
|
|
Hardness (RC)
|
24
|
27
|
|
Ultimate Tensile Strength (PSI)
|
110,000
|
110,000
|
|
Yield Strength, 2% Offset (PSI)
|
80,000
|
85,000
|
|
Elongation (% In 1“)
|
6
|
7
|
|
Proportional Elastic Limit (PSI)
|
45,000
|
45,000
|
