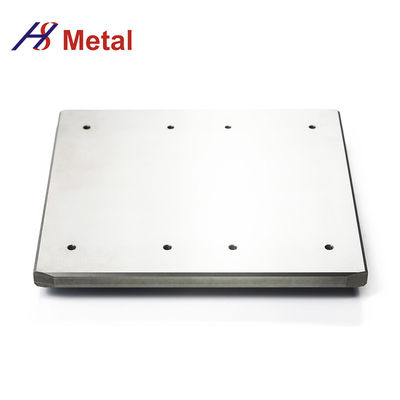

High Purity Planar Molybdenum Sputtering Target Plate Silver Color
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Molybdenum Planar Sputtering Targets | Feature | High Purity |
|---|---|---|---|
| Shape | Plate | Chemical Composition | 99.95%Min Mo |
| Logo | Customized Logo | Application | LCD And Touch Screens; |
| High Light | Planar Molybdenum Sputtering Target,Silver Molybdenum Sputtering Target,Plate Molybdenum Sputtering |
||
Product Description
High Purity Molybdenum Planar Sputtering Targets
Molybdenum Sputtering Target Description
In the electronics industry molybdenum sputtering targets are mainly used for flat panel displays, electrodes and wiring materials for thin film solar cells and barrier layer materials for semiconductors. These are based on molybdenum's high melting point, high electrical conductivity, low specific impedance, good corrosion resistance and good environmental properties.
Molybdenum Planar Sputtering Targets Parameters
|
Material: |
Molybdenum |
Shape: |
Plate |
|
Purity: |
99.5% |
Density: |
10.2g/cm |
|
Color: |
Silver |
Standard: |
ASTM B386 |
|
Size: |
Cusomized |
Surface: |
Bright |
|
High Light: |
99.95% Molybdenum Sputtering Target Molybdenum Sputtering Target 10.2g/Cm3 Molybdenum Plate 10.2g/Cm3 |
||
|
OD(mm) |
ID(mm) |
Length(mm) |
Custom made |
|
140-180mm |
125-135mm |
100-3300 |
Manufacturing Range (Molybdenum Planar Sputtering Target)
|
Rectangle |
Length (mm) |
Width (mm) |
Thickness(mm) |
Custom Made |
|
10 - 3000 |
10 - 800 |
1.0 - 50.8 |
||
|
Circular |
Diameter (mm) |
|
Thickness (mm) |
|
|
10 - 1000 |
|
1.0 - 100 |
Specification
|
Composition |
Mo (Mo1, TZM) |
|
Purity |
99.95% |
|
Density |
10.2 g/cm3 |
|
Grain Sizes |
100 m2 or on request |
|
Roughness |
Ra≤0.4m |
|
Flatness tolerance |
<4um |
|
Atomic number |
42 |
|
CAS number |
7439-98-7 |
|
Atomic mass |
95.94 [g/mol] |
|
Melting point |
2620 °C |
|
Boiling point |
4639 °C |
|
Density at 20 °C |
10.22 [g/cm] |
|
Crystal structure |
Body-centered cubic |
|
Coefficient of linear thermal expansion at 20 °C |
5.210-6[m/(mK)] |
|
Thermal conductivity at 20 °C |
142 [W/(mK)] |
|
Specific heat at 20 °C |
0.25 [J/(gK)] |
|
Electrical conductivity at 20 °C |
17.9106[S/m] |
|
Specific electrical resistance at 20 °C |
0.056 [(mm2)/m] |
Applications:
Thin-film solar industry, solar cells, surface engineering
Touch control industry, flat panel displays
Semiconductor industry, microelectronics, automotive lights and decorative coating,
Coated glass industry(including architectural glass, automotive glass, optical glass and other films), etc.
