Diameter 5mm -100mm Non Ferrous Metals Molybdenum Disk Cold Rolled Surface
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Molybdenum Disk | Density | ≥10.2g/cc |
|---|---|---|---|
| Melting Point | 2610ºC | Surface | Cold Rolled Surface |
| Advantage | High Temperature Resistance | Diameter | 5 Mm -100 Mm |
| High Light | 5mm Non Ferrous Metals,Cold Rolled Molybdenum Disk,Cold Rolled Non Ferrous Metals |
||
Product Description

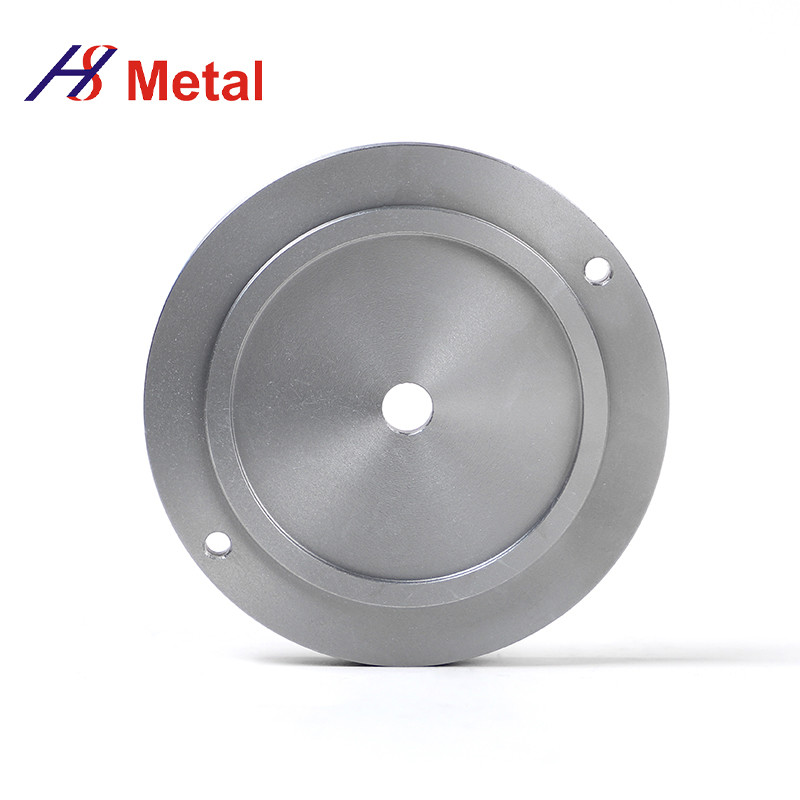

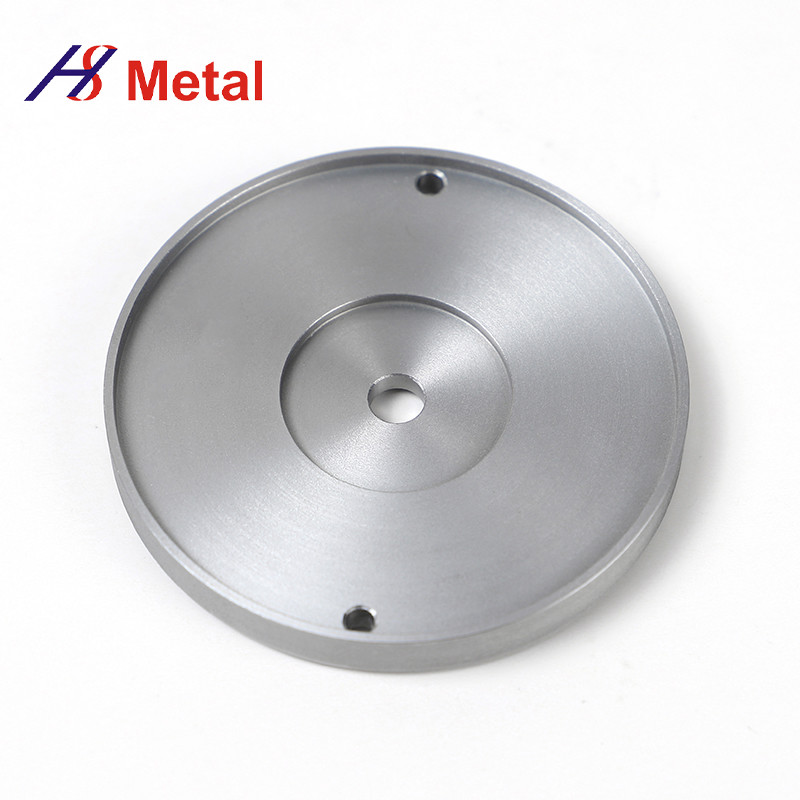

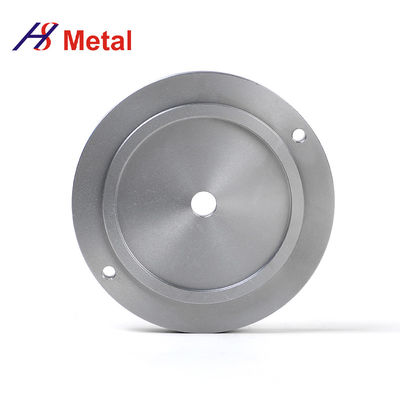

Diameter 5 Mm -100 Mm Molybdenum Disk Cold Rolled Surface
Molybdenum Disk used in Electronics and information industry, such as integrated circuit, information storage, LCD, laser memory, electronic controller,etc; It can also be used in the field of glass coating; It can also be used in wear-resistant materials, high-temperature
corrosion resistance, high-end decorative products and other industries.
Chemical requirements
|
Element |
Ni |
Mg |
Fe |
Pb |
Al |
Bi |
Si |
Cd |
Ca |
P |
|
Concentration(%) |
0.003 |
0.002 |
0.005 |
0.0001 |
0.002 |
0.0001 |
0.002 |
0.0001 |
0.002 |
0.001 |
|
Element |
C |
O |
N |
Sb |
Sn |
Mo |
|
|
|
|
|
Concentration(%) |
0.01 |
0.003 |
0.003 |
0.0005 |
0.0001 |
balance |
|
|
|
|
Parameters
|
Atomic number |
42 |
|
CAS number |
7439-98-7 |
|
Atomic mass |
95.94 [g/mol] |
|
Melting point |
2620 °C |
|
Boiling point |
4639 °C |
|
Density at 20 °C |
10.22 [g/cm] |
|
Crystal structure |
Body-centered cubic |
|
Coefficient of linear thermal expansion at 20 °C |
5.210-6 [m/(mK)] |
|
Thermal conductivity at 20 °C |
142 [W/(mK)] |
|
Specific heat at 20 °C |
0.25 [J/(gK)] |
|
Electrical conductivity at 20 °C |
17.9106 [S/m] |
|
Specific electrical resistance at 20 °C |
0.056 [(mm2)/m] |
Applications
Molybdenum Disk are widely used as contact materials in silicon controlled rectifier diodes, transistors and thyristors mounting material for power semiconductor devices and heat sink bases.
Features
1. Molybdenum discs are widely used as contact materials in diodes of silicon controlled rectifiers, transistors and thyristors;
2. Further applications include using molybdenum discs as heat sink bases in IC'S, LSI'S and hybrid circuits;
3. Molybdenum discs are widely used in vacuum switches as contact terminals.;
4. Molybdenum discs are also applied in producing heating sintering trays, sintering boats, base plates, supporting disk for
crucibles in electronic and vacuum applications. disc/round
5. Used as sputtering targets.
