99.95% Purity Tungsten Carbide Rod Bar 2.4mm For Ion Implantation Parts
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Tungsten Rod 2.4 Mm | Purity | 99.95% Purity |
|---|---|---|---|
| Grade | 1 / 2 / 3 / 4 | Density | 17 - 19.2 G/cm3 |
| Surface | Polished | Application | Ion Implantation Part |
| Highlight | Tungsten Carbide Rod 2.4mm,2.4mm Tungsten Rod Bar,Ion Implantation Parts Tungsten Rod Bar |
||
Product Description

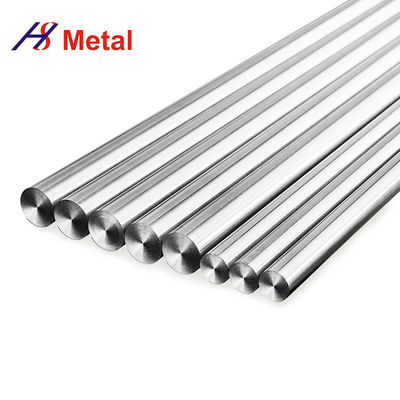

99.95% Purity Tungsten Rod 2.4 Mm For Ion Implantation Parts
Tungsten Rod is made of tungsten billet through hot rolling, leveling, and cold rolling. Strips, rods, and other pure tungsten profiles. Tungsten has a high melting point, high-temperature strength, and creep resistance, as well as thermal conductivity, electrical conductivity, and The electron emission performance, is good and the specificity is high. Low expansion coefficient and lowest metal vapor pressure. Generally use powder It is made by metallurgical methods.
Tungsten rod Availability
Tungsten rod is manufactured as random length pieces or cut to customers' desired lengths.
Other, closer tolerances can be quoted on request.
In addition, there are three different surface processes or finishes that are provided, depending upon the desired end-use.
Tungsten rod Surface Finish
Black - Surface is "as swaged" or "as drawn"; retaining a coating of processing lubricants and oxides.
Cleaned - The surface is chemically cleaned to remove all lubricants and oxides.
Ground - The surface is centerless ground to remove all coating and to achieve precise diameter control.
Tungsten content: 99.95%
Size: 2.0mm~100mm diameter Length: 50-2000mm
Parameter
|
Atomic number |
74 |
|
CAS number |
7440-33-7 |
|
Atomic mass |
183.84 [g/mol] |
|
Melting point |
3420 °C |
|
Boiling point |
5555 °C |
|
Density at 20 °C |
19.25 [g/cm3] |
|
Crystal structure |
Body-centered cubic |
|
Coefficient of linear thermal expansion at 20 °C |
4.410-6[m/(mK)] |
|
Thermal conductivity at 20 °C |
164 [W/(mK)] |
|
Specific heat at 20 °C |
0.13 [J/(gK)] |
|
Electrical conductivity at 20 °C |
18.2106[S/m] |
|
Specific electrical resistance at 20 °C |
0.055 [(mm2)/m] |
Applications
industrial, medical, metallurgical, electric vacuum components, electric light source parts, heat shield, aerospace development
FAQ
1. Are you a trading company or manufacturer?
We are a factory, producing Mo and tungsten products.
2. How can we guarantee quality?
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment
3. How long is your delivery time?
3. How long is your delivery time?
Generally, it is 3~5 days if the goods are in stock; or it is 7-25 days if the goods are not in stock, depending on order quantity.
4. Do you provide samples?
4. Do you provide samples?
Is it free or extra? Gen,erally we don't provide free samples. But we can the educt sample cost from your
bulk orders.
5. What are your payment terms and method?
bulk orders.
5. What are your payment terms and method?
Payment<= 1000 USD, 100% in advance. Payment>= 1000 USD, 30% T/T in advance, balance before
shipment. We accept T/T, L/C, Alipay, PayPal, Western Union Wechat, and so on.
shipment. We accept T/T, L/C, Alipay, PayPal, Western Union Wechat, and so on.
