60W40Cu 70W30Cu Alloy Copper Tungsten Disk Ablate Resistant Custom Make
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Alloy Copper Tungsten | Material | Tungsten Copper Alloy |
|---|---|---|---|
| Shape | Dics&Ring | Type | Copper Tungsten Dis |
| Grade | 60W40Cu 70W30Cu | Application | EDM&ECM Electrodes, Electronics, Metallurgy, Machinery |
| High Light | 70W30Cu Alloy Copper Tungsten,Ablate Resistant Alloy Copper Tungsten |
||
Product Description

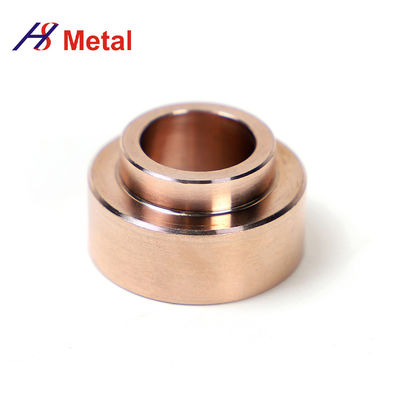

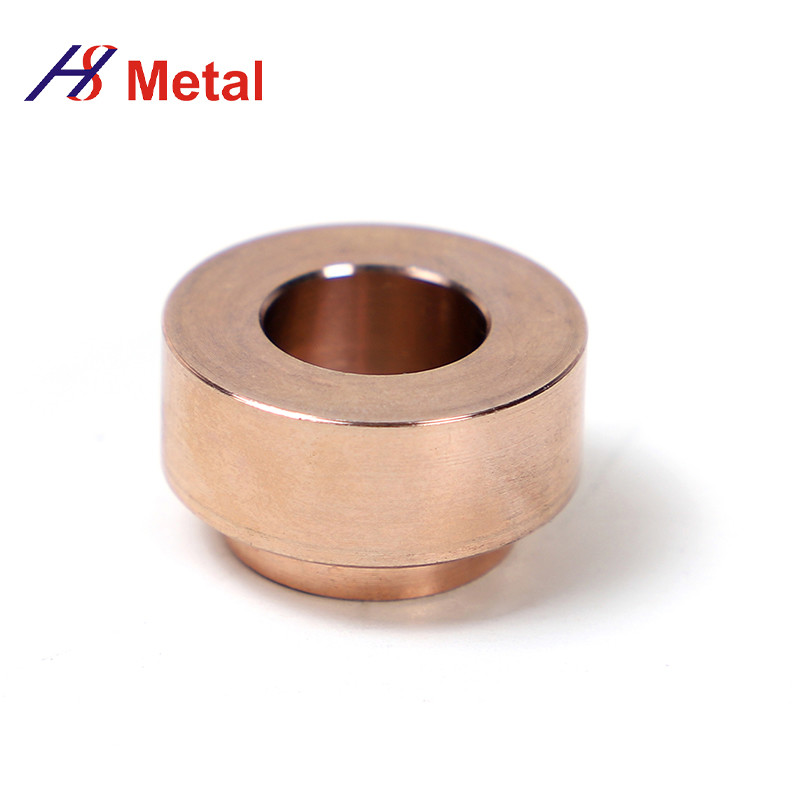

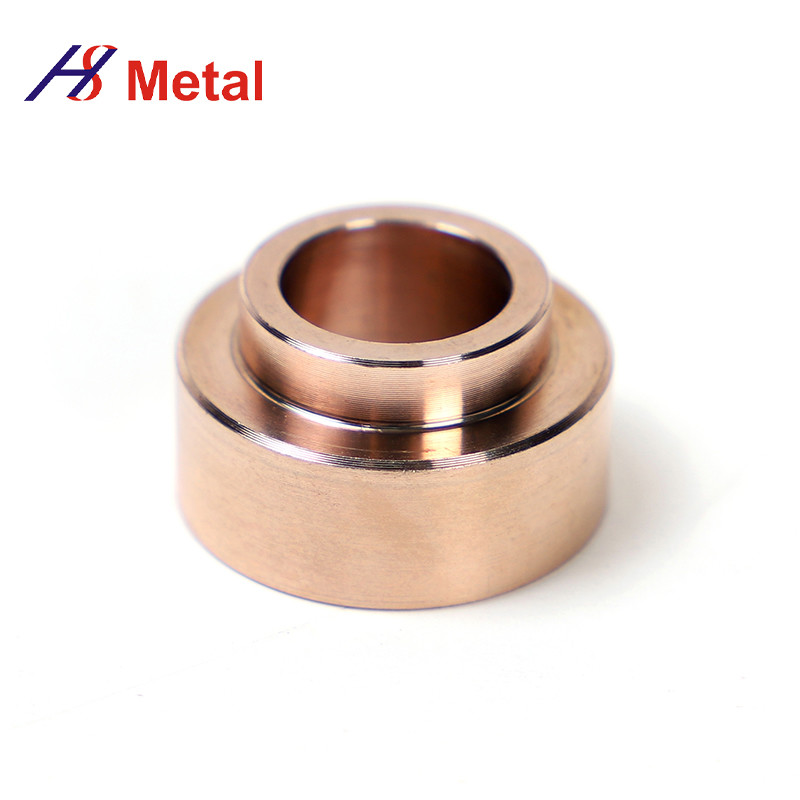

60W40Cu 70W30Cu Alloy Copper Tungsten Disk Custom Make
Alloy Copper Tungsten is the composite of Tungsten and Copper, which own excellent performances of Tungsten and Copper, such as heat-resistant, ablate-resistant, high-intensity, excellent thermal and electrical conductivity. WCu alloy is easy to be machined. WCu alloy is used widely in such industries as engine, electrical power, electron, metallurgy, spaceflight and aviation.
Parameters
|
Class |
Chemical Composition (wt%) |
Density |
Hardness |
Resistivity |
IACS |
Bending Strength |
||
|
Cu |
Total Impurities≤ |
W |
g/cm3 ≥ |
HB Kgf/mm2 ≥ |
μΩ.cm ≤ |
% ≥ |
MPa ≥ |
|
|
W50/Cu50 |
50±2.0 |
0.5 |
Balance |
11.85 |
115 |
3.2 |
54 |
— |
|
W55/Cu45 |
45±2.0 |
0.5 |
Balance |
12.3 |
125 |
3.5 |
49 |
— |
|
W60/Cu40 |
40±2.0 |
0.5 |
Balance |
12.75 |
140 |
3.7 |
47 |
— |
|
W65/Cu35 |
35±2.0 |
0.5 |
Balance |
13.3 |
155 |
3.9 |
44 |
— |
|
W70/Cu30 |
30±2.0 |
0.5 |
Balance |
13.8 |
175 |
4.1 |
42 |
790 |
|
W75/Cu25 |
25±2.0 |
0.5 |
Balance |
14.5 |
195 |
4.5 |
38 |
885 |
|
W80/Cu20 |
20±2.0 |
0.5 |
Balance |
15.15 |
220 |
5 |
34 |
980 |
|
W85/Cu15 |
15±2.0 |
0.5 |
Balance |
15.9 |
240 |
5.7 |
30 |
1080 |
|
W90/Cu10 |
10±2.0 |
0.5 |
Balance |
16.75 |
260 |
6.5 |
||
Features
Tungsten-copper alloy has a wide range of applications, most of which are used in aerospace, aviation, electronics, electric power, metallurgy, machinery, sports equipment and other industries. Secondly, it is also used to manufacture the contacts of high-voltage electrical switches and high-temperature components such as rocket nozzle throat liner and tail rudder, which are resistant to arc erosion, and also used as electrodes for electrical machining, high-temperature molds and other occasions requiring conductive and thermal conductivity and high-temperature use.
Applications
1. Arcing contacts and vaccum contacts in high and medium voltage breakers or vaccum interruptors
2. Electrodes in electric spark erosion cutting machines
3. Electrodes for resistance welding.
