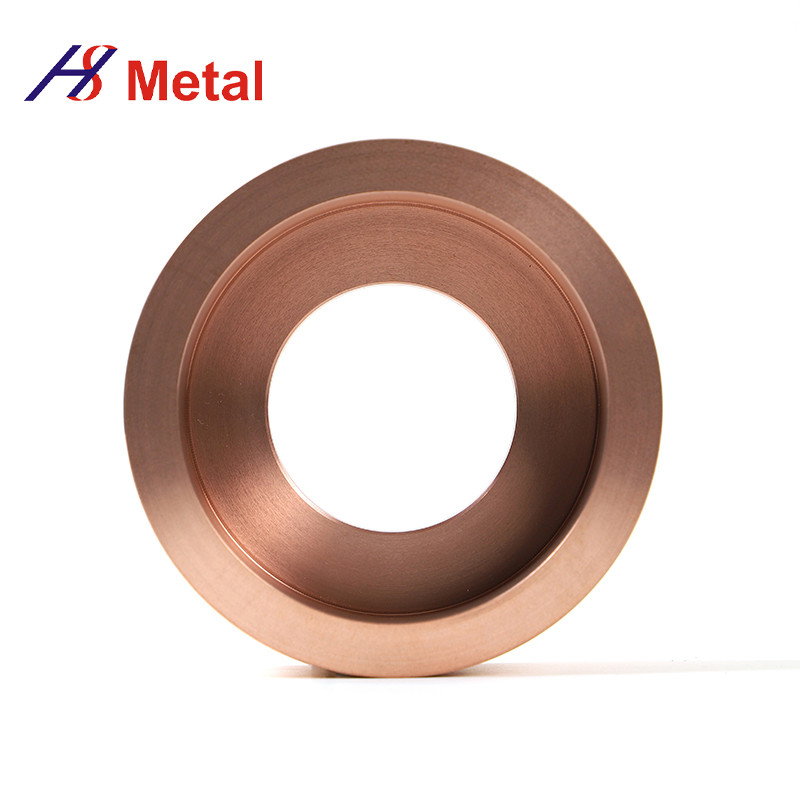

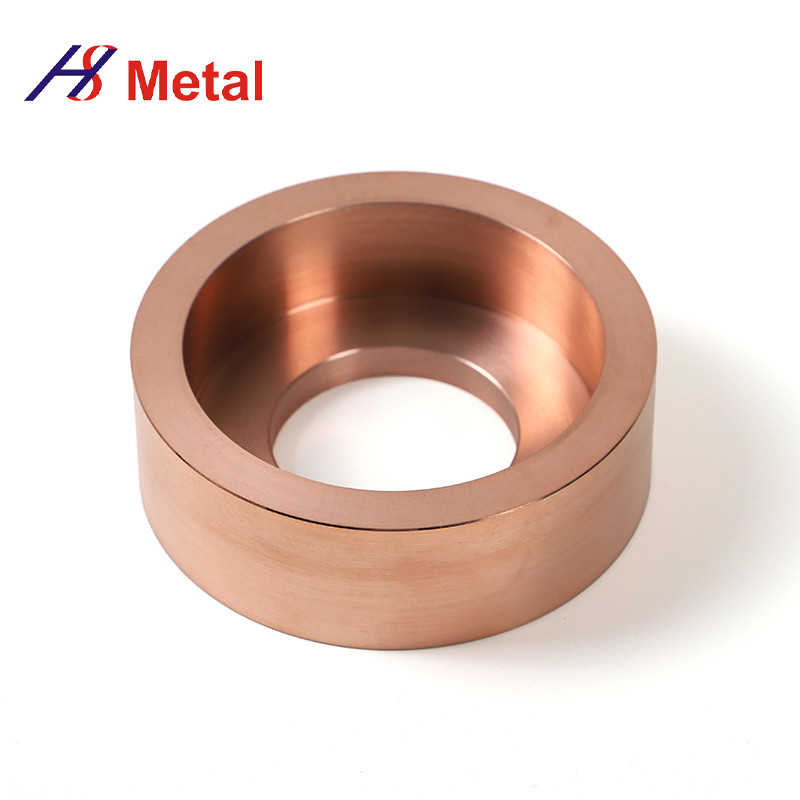

Industrial Grade WCu Alloy Ring Dics Tungsten Nickel Copper Alloy
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | WCu Alloy Dics&Ring | Material | WCu Alloy |
|---|---|---|---|
| Shape | Dics&Ring | Grade | W50Cu50 W70Cu30, W75Cu25, W80Cu20, W85Cu15, W90Cu10 |
| Usage | EDM&ECM Electrodes, Electronics, Metallurgy, Machinery | Melting Point | 1400-1450℃ |
| Tensile Strength | 500-750 MPa | ||
| High Light | Industrial WCu Alloy,Dics Tungsten Nickel Copper Alloy,Industrial Tungsten Nickel Copper Alloy |
||
Product Description
Industrial Grade Tungsten Alloy Products WCu Alloy Costomization
WCu Alloy Applications:
1. Heat sinks as passive cooling elements of electronic devices;
2. Electrodes for resistance welding;
3. Electrodes in electric spark erosion cutting machines;
4. Arcing contacts and vacuum contacts in high and medium voltage breakers or vacuum interruptions.
Parameters
|
Class |
Chemical Composition (wt%) |
Density |
Hardness |
Resistivity |
IACS |
Bending Strength |
||
|
Cu |
Total Impurities≤ |
W |
g/cm3 ≥ |
HB Kgf/mm2 ≥ |
μΩ.cm ≤ |
% ≥ |
MPa ≥ |
|
|
W50/Cu50 |
50±2.0 |
0.5 |
Balance |
11.85 |
115 |
3.2 |
54 |
— |
|
W55/Cu45 |
45±2.0 |
0.5 |
Balance |
12.3 |
125 |
3.5 |
49 |
— |
|
W60/Cu40 |
40±2.0 |
0.5 |
Balance |
12.75 |
140 |
3.7 |
47 |
— |
|
W65/Cu35 |
35±2.0 |
0.5 |
Balance |
13.3 |
155 |
3.9 |
44 |
— |
|
W70/Cu30 |
30±2.0 |
0.5 |
Balance |
13.8 |
175 |
4.1 |
42 |
790 |
|
W75/Cu25 |
25±2.0 |
0.5 |
Balance |
14.5 |
195 |
4.5 |
38 |
885 |
|
W80/Cu20 |
20±2.0 |
0.5 |
Balance |
15.15 |
220 |
5 |
34 |
980 |
|
W85/Cu15 |
15±2.0 |
0.5 |
Balance |
15.9 |
240 |
5.7 |
30 |
1080 |
|
W90/Cu10 |
10±2.0 |
0.5 |
Balance |
16.75 |
260 |
6.5 |
||
Features
Tungsten-copper alloy has a wide range of applications, most of which are used in aerospace, aviation, electronics, electric power, metallurgy, machinery, sports equipment, and other industries. Secondly, it is also used to manufacture the contacts of high-voltage electrical switches and high-temperature components such as rocket nozzle throat liner and tail rudder, which are resistant to arc erosion, and also used as electrodes for electrical machining, high-temperature molds and other occasions requiring conductive and thermal conductivity and high-temperature use.
