OEM Pure Tungsten Tube Pipe For Thermocouple Protection Tube
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | OEM Pure Tungsten Tube,OEM Tungsten Tube Pipe,Thermocouple Protection Tungsten Tube Pipe |
||
|---|---|---|---|
Product Description

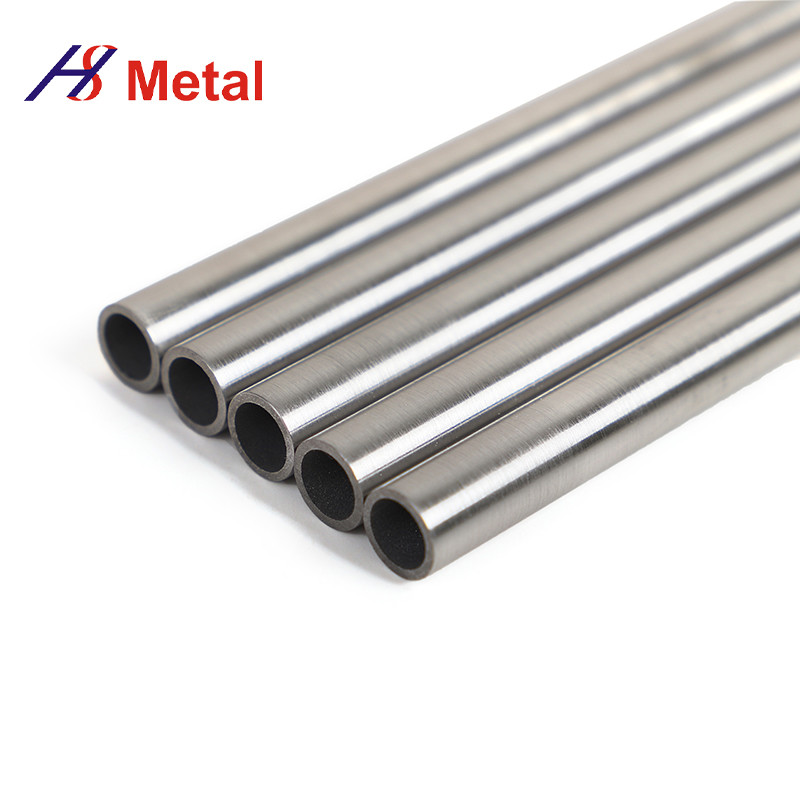

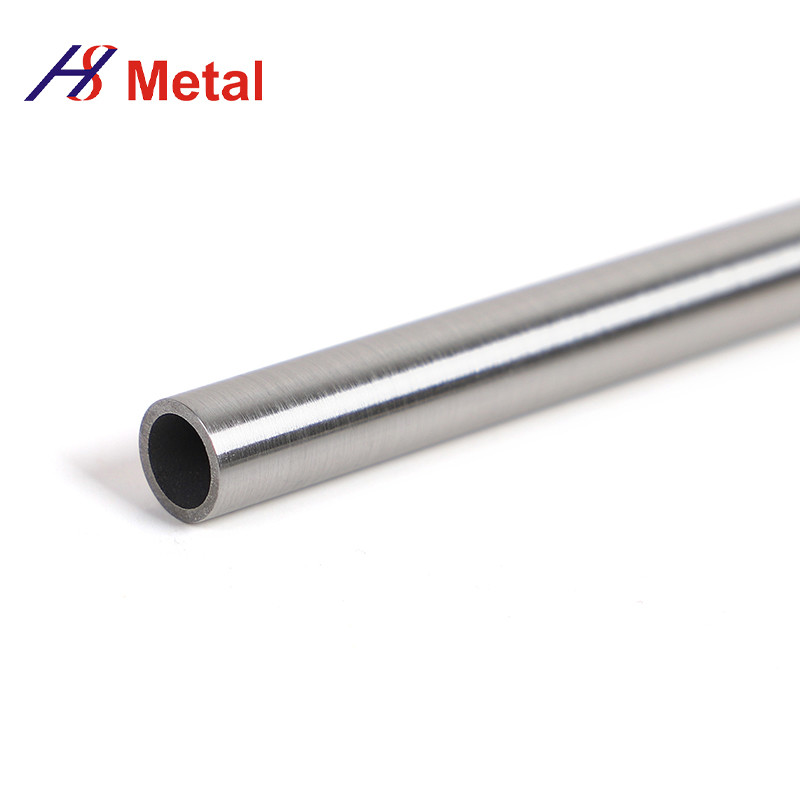

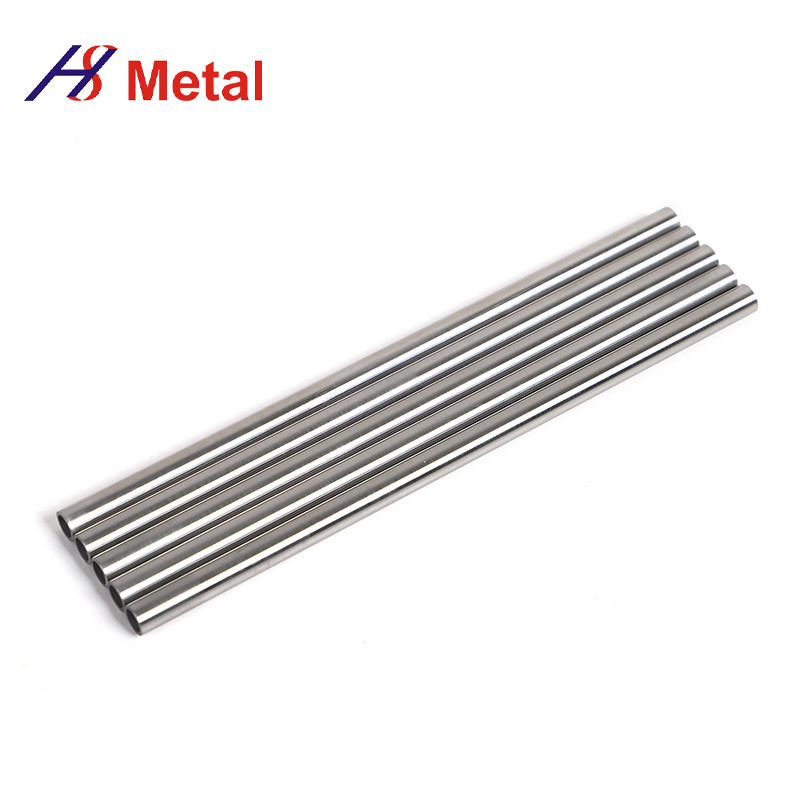

Pure Tungsten Tube Pipe For Thermocouple Protection Tube
Tungsten tube is mainly used in thermocouple protection tube in high-temperature furnace, sapphire single crystal furnace, and support in a high-temperature sintering furnace. Tungsten has a good radiation shielding effect, so tungsten tubes can be used in medical shielding needle tubes; used in rocket thrusters, engine is a jet engine, which uses high-performance compressed fuel, and the temperature generated during rocket launch can reach thousands of degrees.
Tungsten tube is a metal material with high temperature resistance, so it is widely used in rocket engines It is used in lining and ignition tube parts. When the ignition tube is deep into the combustion chamber of the engine, huge heat is generated immediately after ignition. At this time, the ignition tube has to bear thousands of temperatures, which requires high-temperature resistance of materials.
Quality&Inspection
Tungsten Tubes
|
Product Name |
Pure Tungsten Pipe |
|
Surface |
Polished |
|
Model Number |
W1 |
|
Thickness |
1~30mm |
|
Length |
1200mm |
|
Packing |
Wooden Case |
We can process all kinds of tungsten tubes according to the customer’s request.
Feature
1. High density
2. High wear-resistant
3. High thermal conductivity with low thermal expansion coefficient
4. High vibration-damping capacity and high Young's modulus
5. High oxidation resistance and corrosion resistance
|
Atomic number |
74 |
|
CAS number |
7440-33-7 |
|
Atomic mass |
183.84 [g/mol] |
|
Melting point |
3420 °C |
|
Boiling point |
5555 °C |
|
Density at 20 °C |
19.25 [g/cm3] |
|
Crystal structure |
Body-centered cubic |
|
Coefficient of linear thermal expansion at 20 °C |
4.410-6[m/(mK)] |
|
Thermal conductivity at 20 °C |
164 [W/(mK)] |
|
Specific heat at 20 °C |
0.13 [J/(gK)] |
|
Electrical conductivity at 20 °C |
18.2106[S/m] |
|
Specific electrical resistance at 20 °C |
0.055 [(mm2)/m] |
Application
-
Mainly used for high-temperature furnace components, crucible, nozzle, high-temperature furnace, etc
-
It is used for pressing blanks for spinning thin-wall tubes & other special purposes.
