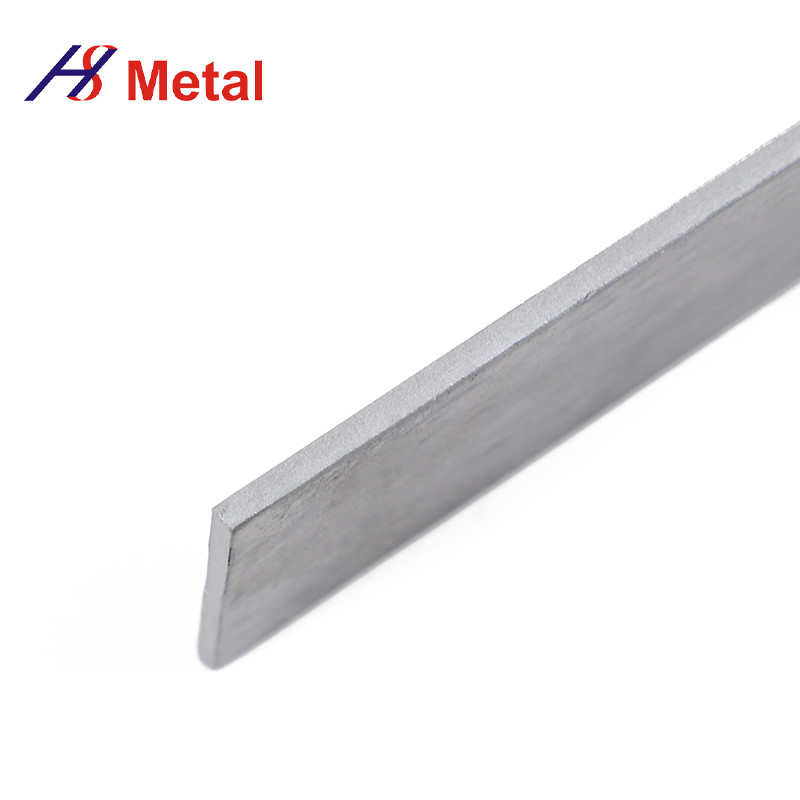

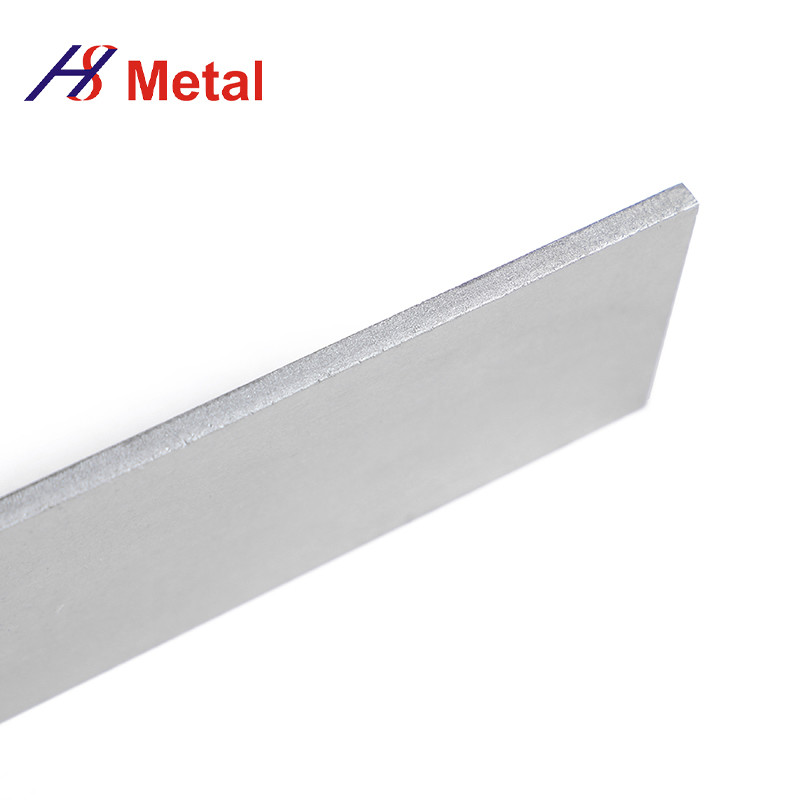

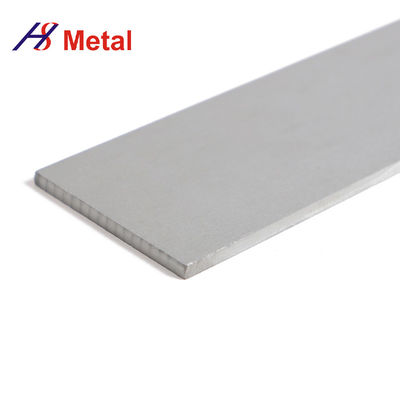

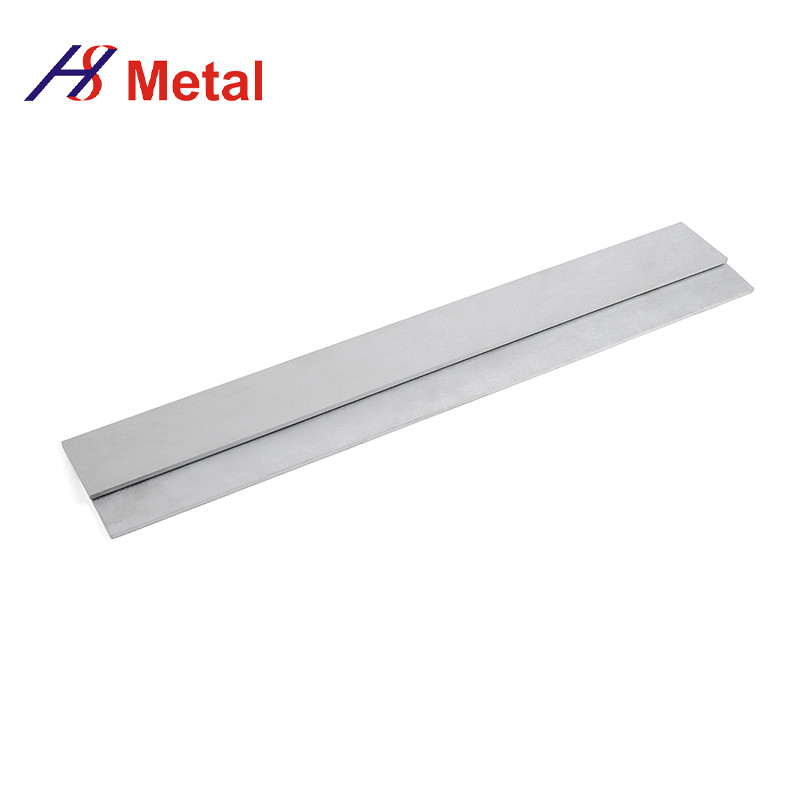

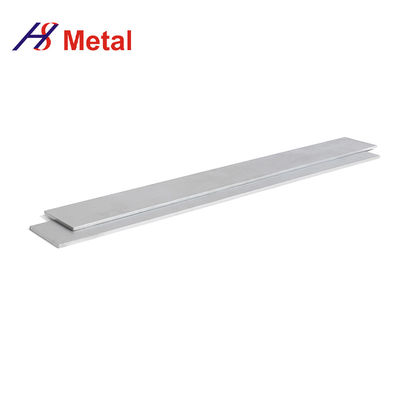

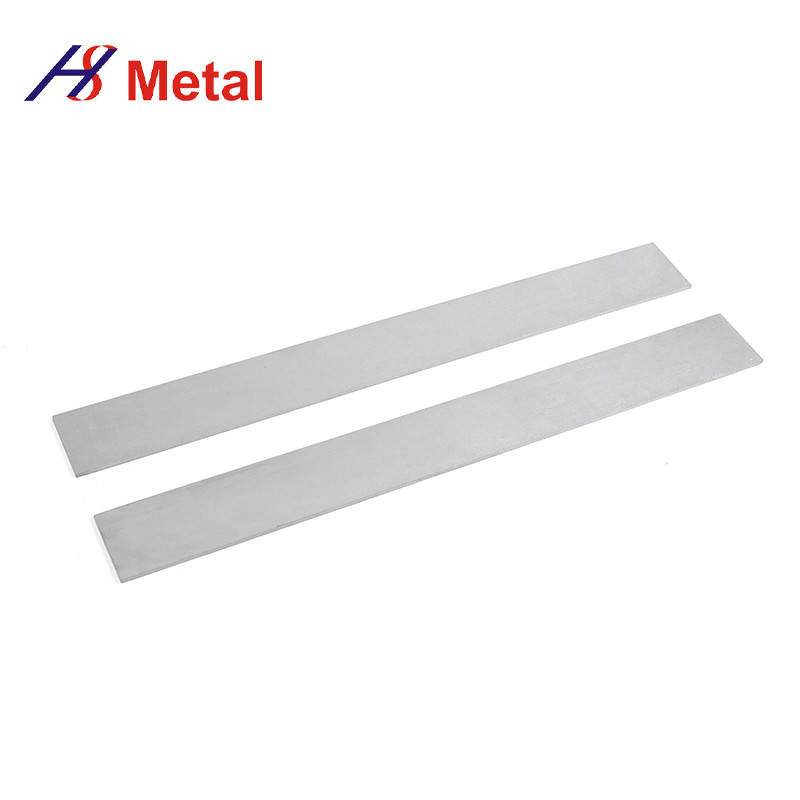

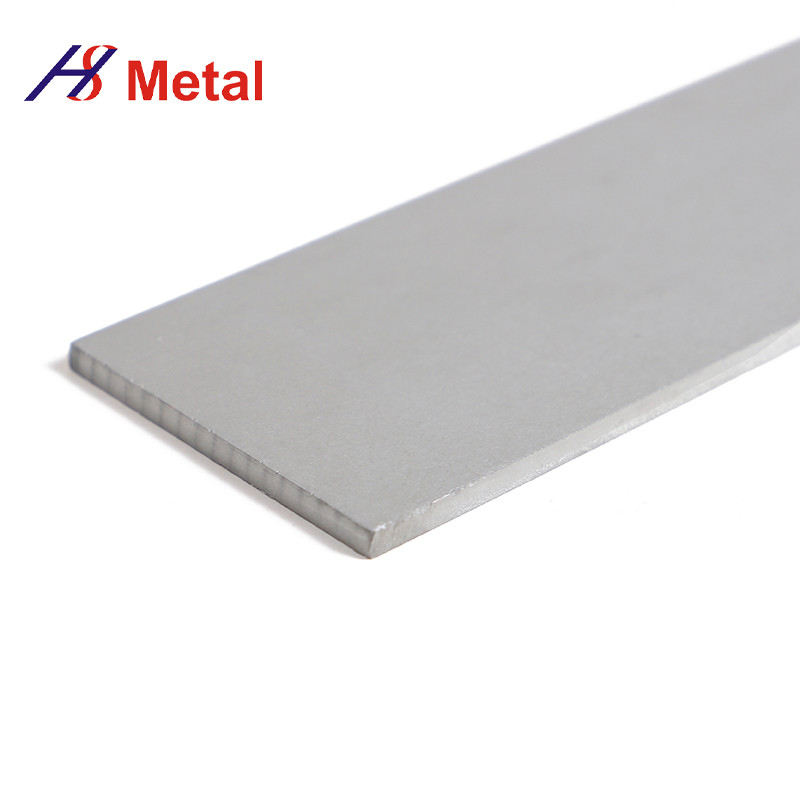

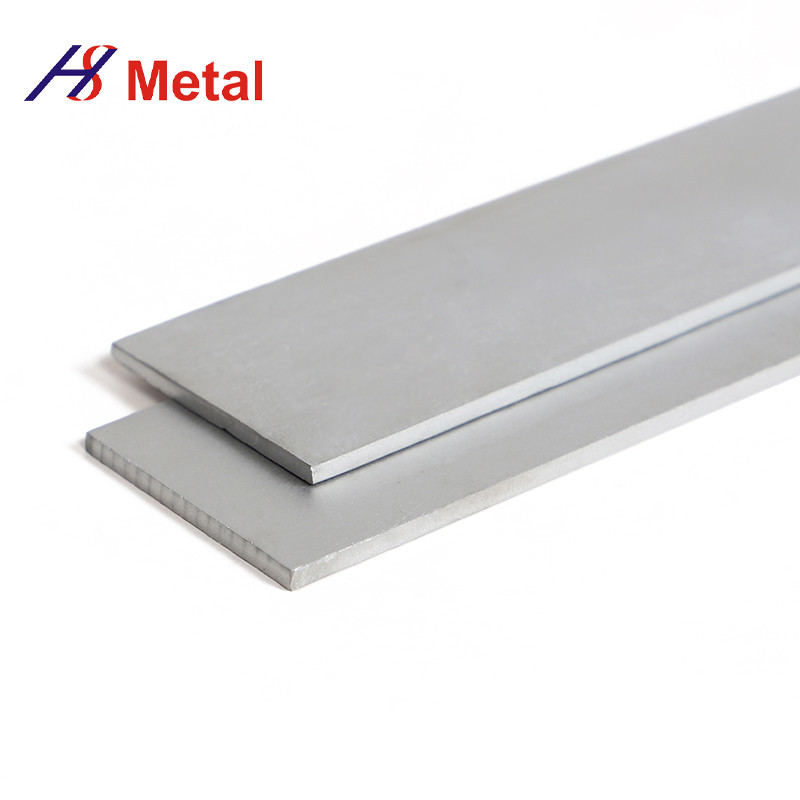

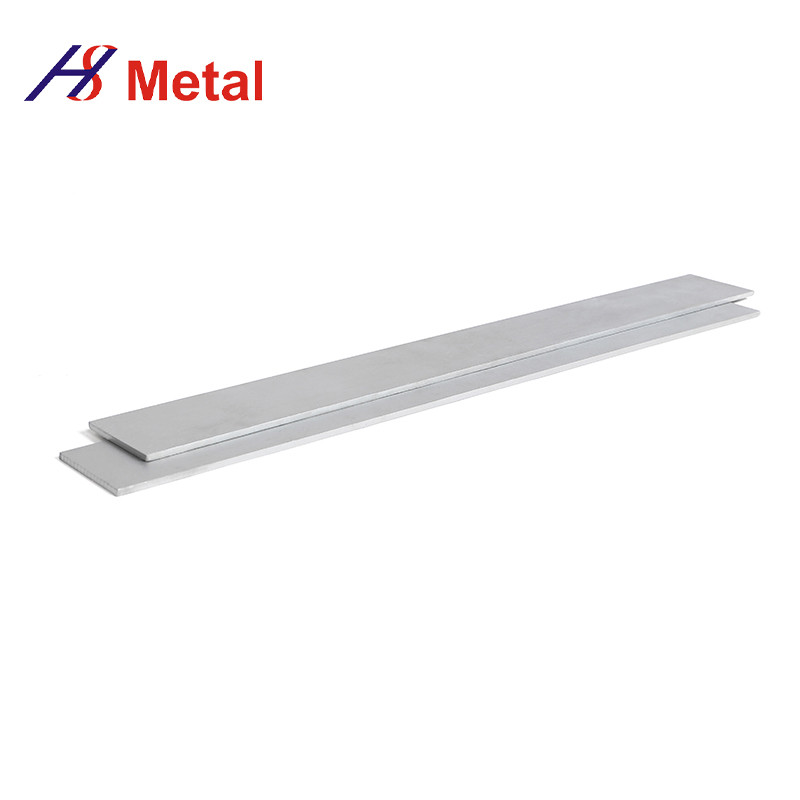

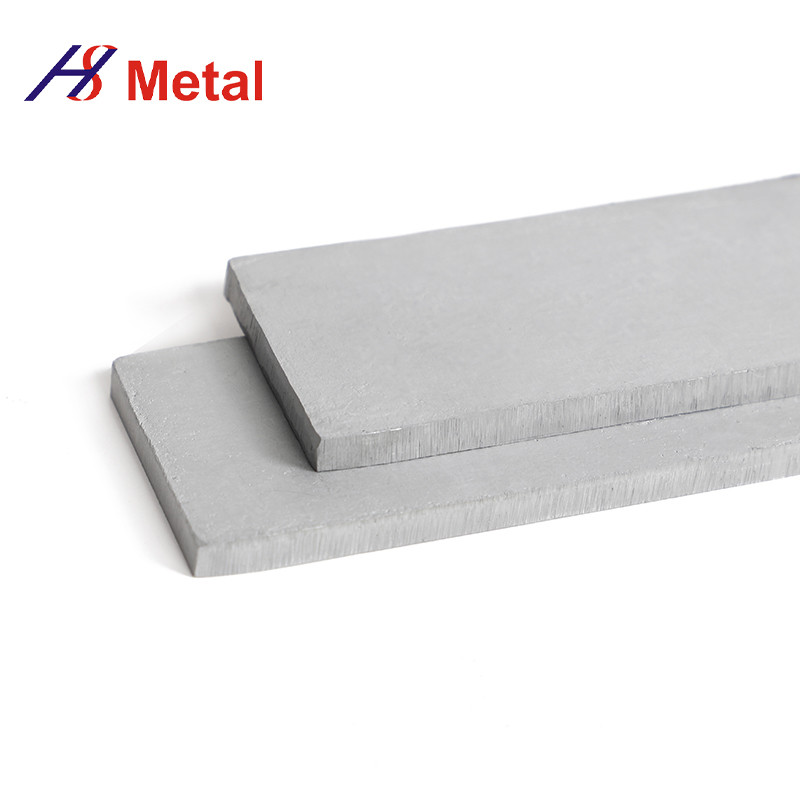

75% Silver Tungsten Alloy Plate Customize For Electric Spark Discharge Electrodes
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Silver-Tungsten Alloys Plate | Type | Silver Tungsten 65/70/75 |
|---|---|---|---|
| Content (%wt.) | Tungsten: 65%, 70%,75%,balance Silver | Tech | Vacuum Infiltration |
| Application | Electric Spark Discharge Electrodes | Conductivity (%IACS) ≥ | 48,45,41 |
| High Light | Silver Tungsten Alloy Plate,Tungsten Alloy Plate Customize,75% Silver Tungsten Alloy |
||
Product Description
65%, 70%,75% Silver Tungsten Alloys Plate For Electric Spark Discharge Electrodes
Introduction
Silver tungsten is produced by vacuum infiltration, with excellent performance and stable quality. Because the melting points of tungsten and silver are very different. Like tungsten-copper alloys, silver-tungsten alloys cannot be produced by traditional casting methods. Our process route is powder preparation - pressing - sintering - infiltration - machining. Our company selects high-purity tungsten powder and silver powder, mixes them evenly and puts them into granulation equipment to complete the powder preparation. The professionally customized vacuum sintering furnace ensures that the interior of the silver-tungsten alloy is uniform and free of holes.
The following indicators and parameters are for reference only, not as acceptance criteria for products.
| product name | Content (%wt.) | Density (g/cm³) ≥ | Hardness (HRB) ≥ | Conductivity (%IACS) ≥ |
| Silver Tungsten 65 | Tungsten: 65%, balance silver | 14.5 | 75 | 48 |
| Silver Tungsten 70 | Tungsten: 70%, balance silver | 14.9 | 82 | 45 |
| Silver Tungsten 75 | Tungsten: 75%, balance silver | 15.4 | 86 | 41 |
Application
Silver tungsten plates and other products are widely used in industrial fields such as electric spark discharge electrodes, resistance welding electrodes, precision probe needles and precision bearings
