Wag Silver Tungsten Alloy Sheet And Plate Polished Ground Surface
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Silver Tungsten Alloy Sheet And Plate,tungsten Heavy Alloy | Type | Silver Tungsten 65/70/75 |
|---|---|---|---|
| Content (%wt.) | Tungsten: 65%, 70%,75%,balance Silver | Tech | Vacuum Infiltration |
| Surface | Polished/Ground | Material | Wag |
| High Light | Wag Silver Tungsten Alloy Sheet,Wag Silver Tungsten Alloy Sheet,Polished Tungsten Alloy Plate |
||
Product Description

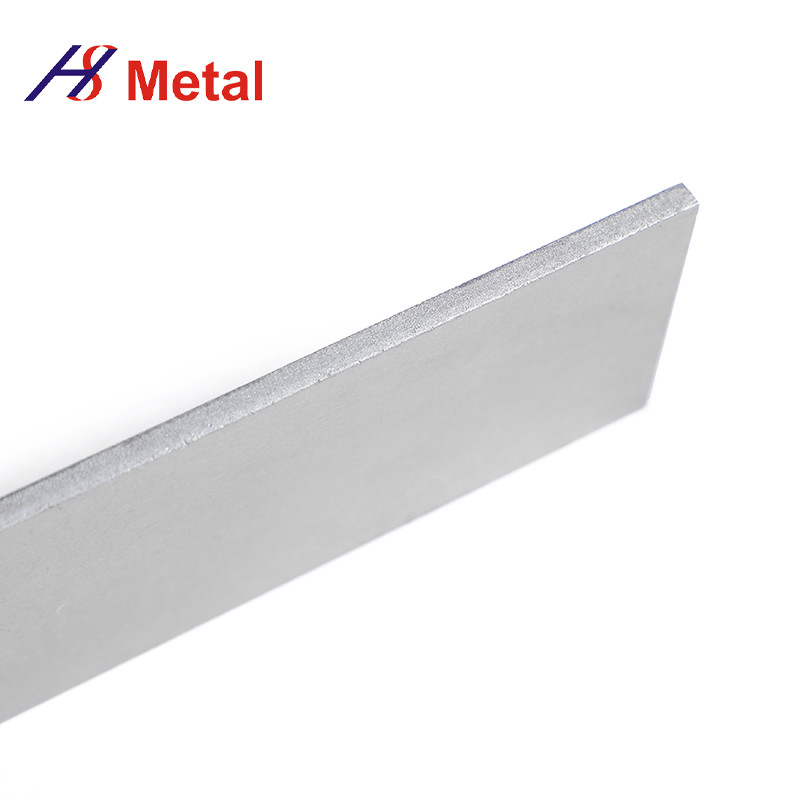

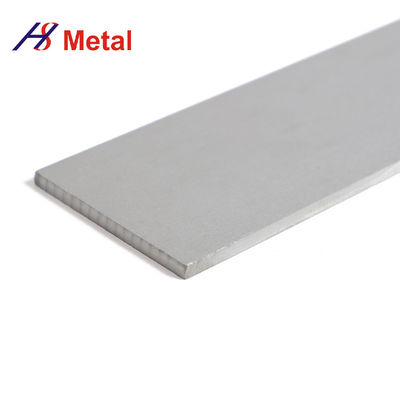

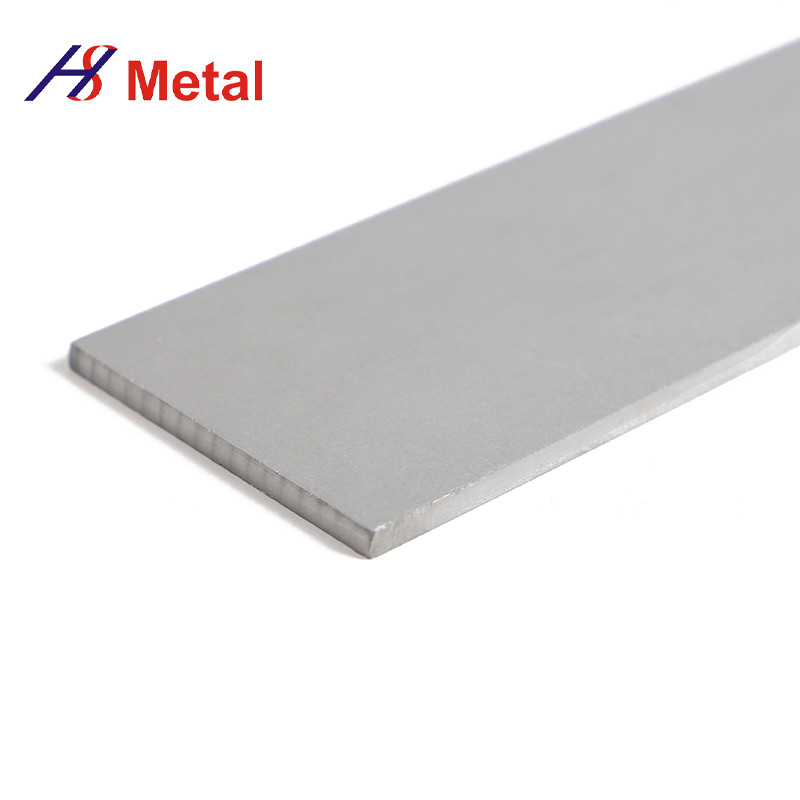

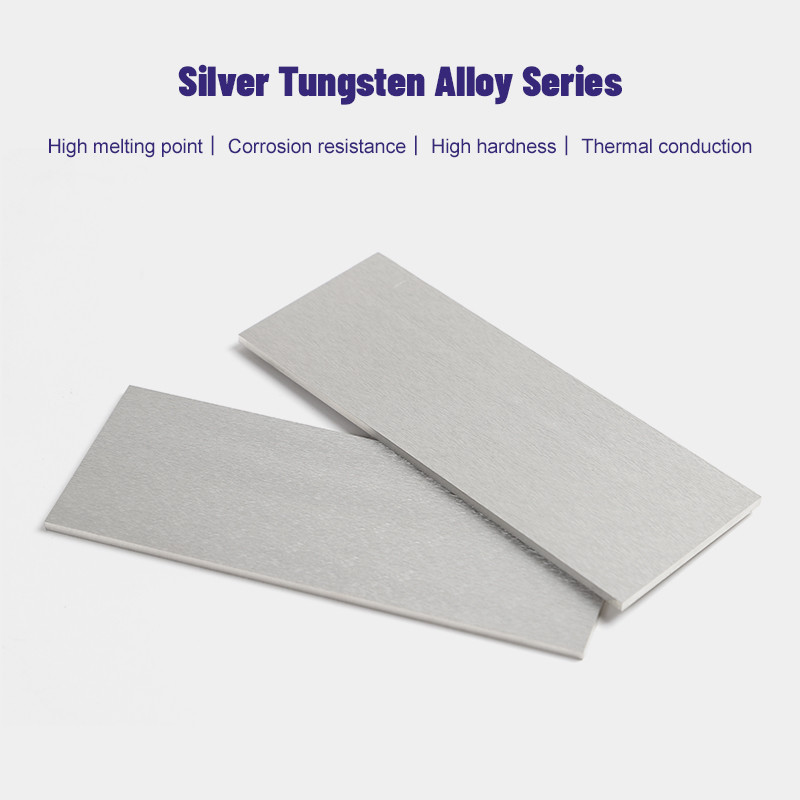

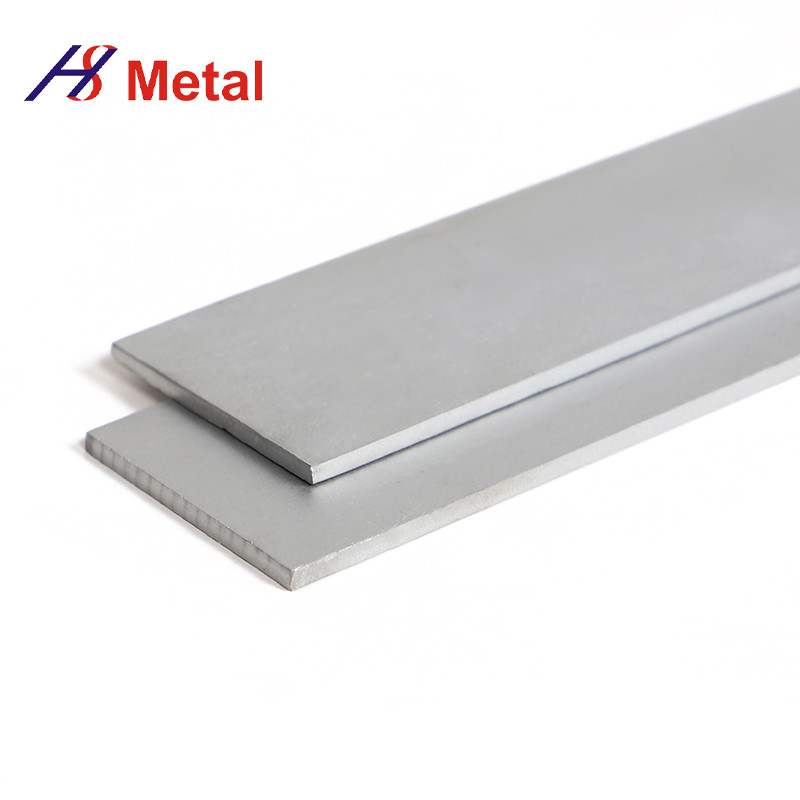

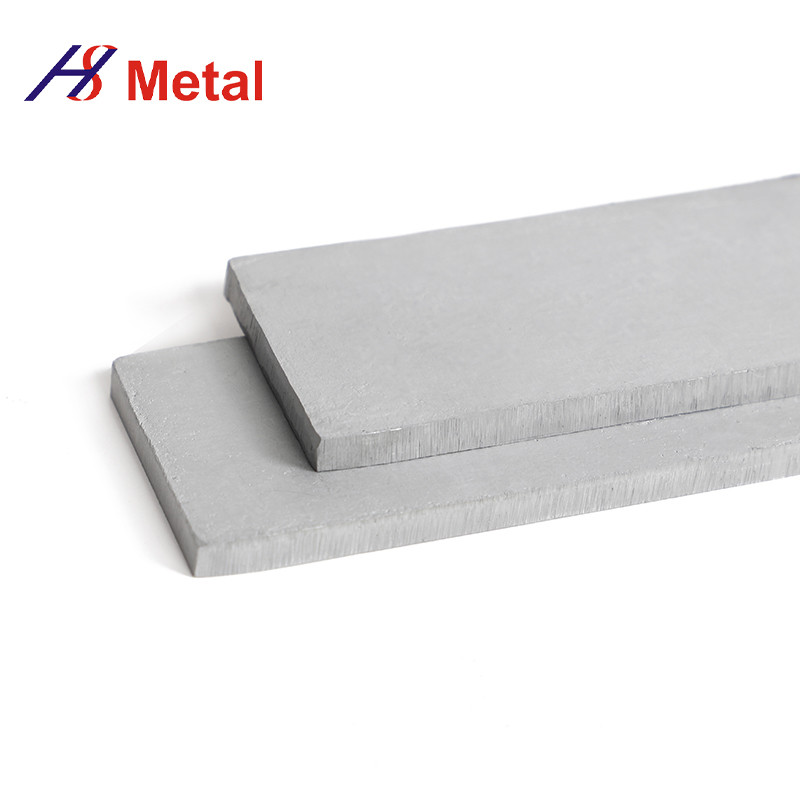

Wag Silver Tungsten Alloy Sheet And Plate Polished/Ground Surface
Introduction
1. It has good electrical conductivity, and is easily processed,
2. It has a high melting point, high hardness, and better corrosion--the resistance of arc.
3. better resistance of melting and welding, and transfers less, and so on.
4. Its greatest feature is having a strong bearing capacity for the arc of large current.
The following indicators and parameters are for reference only, not as acceptance criteria for products.
| product name | Content (%wt.) | Density (g/cm³) ≥ | Hardness (HRB) ≥ | Conductivity (%IACS) ≥ |
| Silver Tungsten 65 | Tungsten: 65%, balance silver | 14.5 | 75 | 48 |
| Silver Tungsten 70 | Tungsten: 70%, balance silver | 14.9 | 82 | 45 |
| Silver Tungsten 75 | Tungsten: 75%, balance silver | 15.4 | 86 | 41 |
Application
Silver tungsten plates and other products are widely used in industrial fields such as electric spark discharge electrodes, resistance welding electrodes, precision probe needles and precision bearings
