ASTM B760 Tungsten Products Rolling Forging Tungsten Worm Weights
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Tungsten Weight | Material | Tungsten |
|---|---|---|---|
| Standard | ASTM B760 | Processing | Sintering, Rolling, Forging, Machining |
| Density | 19.2 G/cm3 | Size | Thickness:3mm Width:3mm Length:3mm |
| High Light | B760 Tungsten Products,Forging Tungsten Worm Weights,ASTM Tungsten Worm Weights |
||
Product Description

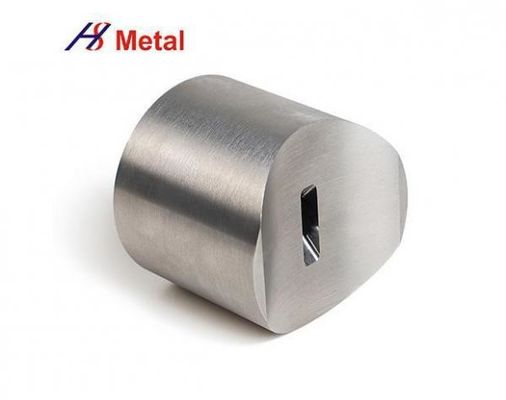

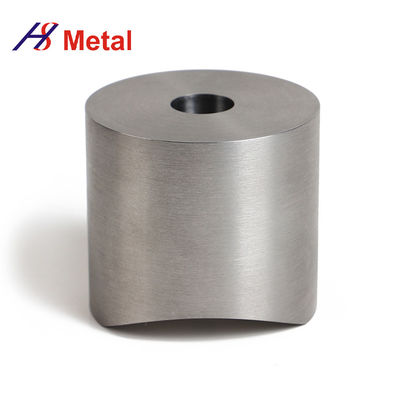

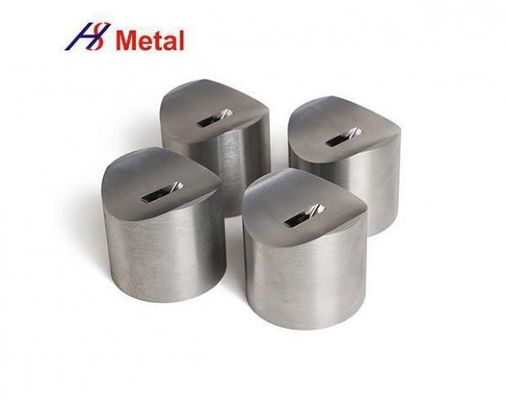

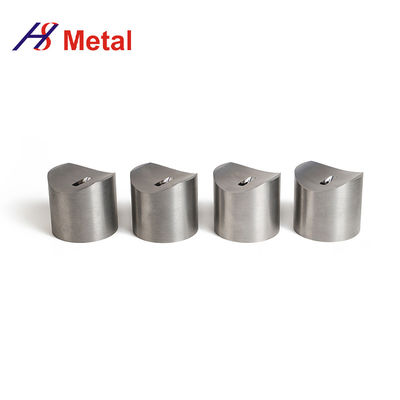

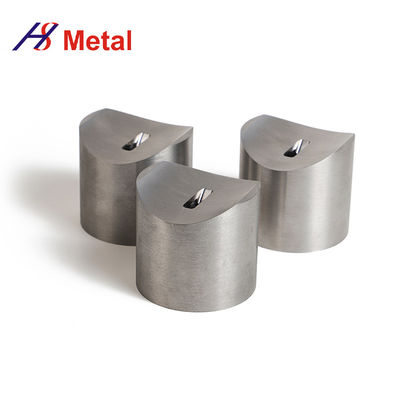

ASTM B760 Tungsten Products Tungsten Worm Weights
Introduction
ungsten Worm Weights are added in auto racing to stabilize the car and ensure the car is within the required weight class for the race by putting more weight over the drive wheels.
Tungsten alloys are used in crankshafts as counterweight. The tungsten alloy crankshaft counterweights are designed to offset the weight of the rod and pistons. The crankshafts must be balanced to customized rod and piston combinations. As tungsten alloy has high density, adding WHA balance weight into the racing car has a good effect in optimizing the performance of the racing car during the racing process, which contributes to better control of the car's movement.
Feature
1. High density
2. High wear-resistant
3. High thermal conductivity with low thermal expansion coefficient
4. High vibration-damping capacity and high Young's modulus
5. High oxidation resistance and corrosion resistance
Specification
| Product Name | tungsten weight |
| Material | Pure tungsten |
| Standard | ASTM B760 |
| Processing | Sintering, Rolling, Forging, machining |
| Density | 19.2 g/cm3 |
| Dimension Range |
Minimum size: thickness:3mm width:3mm length:3mm Maximum size: customized |
| Atomic number | 74 |
| CAS number | 7440-33-7 |
| Atomic mass | 183.84 [g/mol] |
| Melting point | 3420 °C |
| Boiling point | 5555 °C |
| Density at 20 °C | 19.25 [g/cm3] |
| Crystal structure | Body-centered cubic |
| Coefficient of linear thermal expansion at 20 °C | 4.4 × 10-6 [m/(mK)] |
| Thermal conductivity at 20 °C | 164 [W/(mK)] |
| Specific heat at 20 °C | 0.13 [J/(gK)] |
| Electrical conductivity at 20 °C | 18.2 × 106 [S/m] |
| Specific electrical resistance at 20 °C | 0.055 [(Ωmm2)/m] |
Why Applying Tungsten Alloy
With high density, good mechanical strength, and easily machined features, tungsten alloy counterweights are the best choice for vehicle industries.
