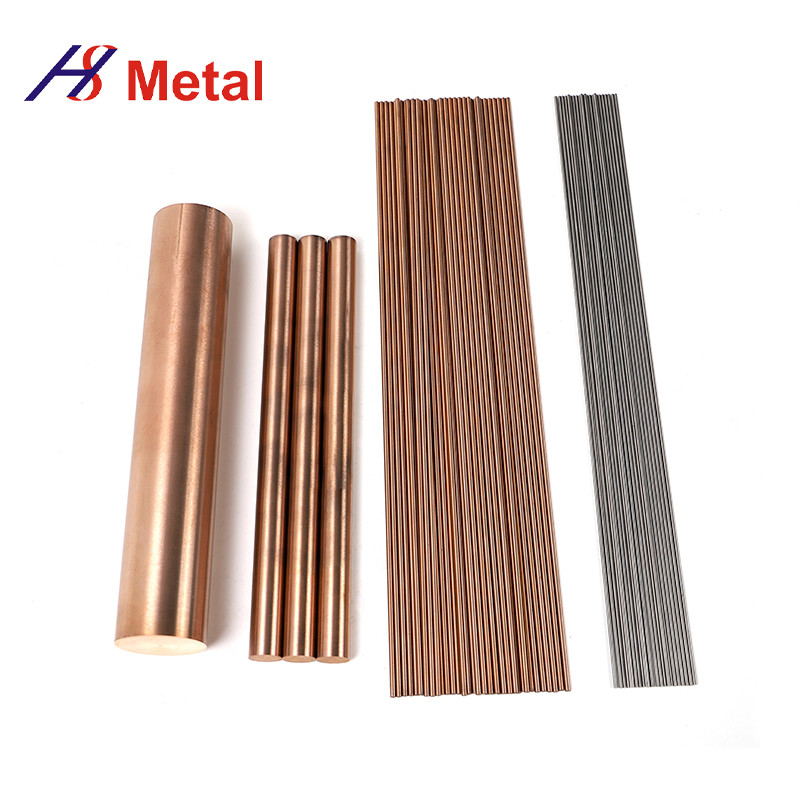

W90 Cu10 Round Alloy Tungsten Copper Bar Rod Heat Resistant In Aerospace
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Tungsten Copper Bar | Material | Tungsten Copper Alloy |
|---|---|---|---|
| Shape | Bar&Rod | Application | Electrical |
| Grade | W90/Cu10 | Feature | Heat Resistant |
| Highlight | Round Tungsten Copper Bar,Cu10 Tungsten Copper Bar,Heat Resistant Tungsten Copper Rod |
||
Product Description
W90/Cu10 Round Tungsten Copper Bar Heat Resistant
Tungsten Copper Bar Characters:
1. Better heat resistant;
2. better ablate-resistant;
3. High intensity
4. High density;
5. Excellent thermal and electrical conductivity;
6. easy to be machined.
Tungsten Copper Bar Parameters
|
Class |
Chemical Composition (wt%) |
Density |
Hardness |
Resistivity |
IACS |
Bending Strength |
||
|
Cu |
Total Impurities≤ |
W |
g/cm3 ≥ |
HB Kgf/mm2 ≥ |
μΩ.cm ≤ |
% ≥ |
MPa ≥ |
|
|
W50/Cu50 |
50±2.0 |
0.5 |
Balance |
11.85 |
115 |
3.2 |
54 |
— |
|
W55/Cu45 |
45±2.0 |
0.5 |
Balance |
12.3 |
125 |
3.5 |
49 |
— |
|
W60/Cu40 |
40±2.0 |
0.5 |
Balance |
12.75 |
140 |
3.7 |
47 |
— |
|
W65/Cu35 |
35±2.0 |
0.5 |
Balance |
13.3 |
155 |
3.9 |
44 |
— |
|
W70/Cu30 |
30±2.0 |
0.5 |
Balance |
13.8 |
175 |
4.1 |
42 |
790 |
|
W75/Cu25 |
25±2.0 |
0.5 |
Balance |
14.5 |
195 |
4.5 |
38 |
885 |
|
W80/Cu20 |
20±2.0 |
0.5 |
Balance |
15.15 |
220 |
5 |
34 |
980 |
|
W85/Cu15 |
15±2.0 |
0.5 |
Balance |
15.9 |
240 |
5.7 |
30 |
1080 |
|
W90/Cu10 |
10±2.0 |
0.5 |
Balance |
16.75 |
260 |
6.5 |
||
Tungsten Copper Bar Features
Tungsten-copper alloy has a wide range of applications, most of which are used in aerospace, aviation, electronics, electric power, metallurgy, machinery, sports equipment and other industries. Secondly, it is also used to manufacture the contacts of high-voltage electrical switches and high-temperature components such as rocket nozzle throat liner and tail rudder, which are resistant to arc erosion, and also used as electrodes for electrical machining, high-temperature molds and other occasions requiring conductive and thermal conductivity and high-temperature use.
Tungsten Copper Bar Applications
1. Arcing contacts and vaccum contacts in high and medium voltage breakers or vaccum interruptors
2. Electrodes in electric spark erosion cutting machines
3. Electrodes for resistance welding.
