Chemical Vapor Deposition CVD Tungsten Ring Products Semiconductor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Tungsten Ring | Molecular Weight | 183.85 |
|---|---|---|---|
| Melting Point | 3410 °C | Density | 19.3 G/cm3 |
| Application | Semiconductor, Chemical Vapor Deposition (CVD) | Tensile Strength | 750 MPa |
| High Light | Semiconductor Tungsten Products,Semiconductor Tungsten Ring |
||
Product Description

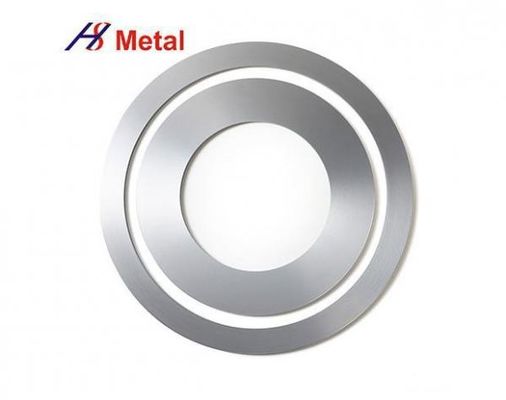

Chemical Vapor Deposition CVD Tungsten Products Semiconductor Tungsten Ring
Tungsten Rings can be customized in width, thickness and ring diameter. Tungsten Rings can have a custom shaped hole and can be open or closed. American Elements specializes in producing high purity, uniformly shaped Tungsten Rings. We offer custom rings with annealed or hard temper and will meet most common Milspec or ASTM standards. Tungsten Rings are hollow, circular pieces of metal and can be produced in custom sizes. In addition to standard alloys, we specialize in corrosion resistant alloys, high temperature applications, and custom shapes and forms, including custom inner and outer dimensions and threads. American Elements also produces tungsten as rods, ingots, powder, pieces, discs, granules, wire, and in compound forms such as oxide. Tungsten rings can be used as components in a variety of applications.
Parameter
|
Molecular Weight |
183.85 |
|---|---|
|
Appearance |
Silvery |
|
Melting Point |
3410 °C |
|
Boiling Point |
5900 °C |
|
Density |
19.3 g/cm3 |
|
Solubility in H2O |
N/A |
|
Electrical Resistivity |
5.65 μΩ ·m (27 °C) |
|
Electronegativity |
1.7 Paulings |
|
Heat of Fusion |
35.3 kJ/mol |
|
Heat of Vaporization |
806.7 kJ/mol |
|
Poisson's Ratio |
0.28 |
|
Specific Heat |
0.133 J/g mol (20 °C) |
|
Tensile Strength |
750 MPa |
|
Thermal Conductivity |
1.73 W/m K |
|
Thermal Expansion |
(25 °C) 4.5 µm·m-1·K-1 |
|
Vickers Hardness |
3430 MPa |
|
Young's Modulus |
411 GPa |
Tungsten Ring Applications
1. widely used in semiconductor, chemical vapor deposition (CVD) and physical vapor deposition (PVD) display and optical applications;
2. applied in producing electrodes, heating elements, heat shields, sintering trays, sintering boats, stacking sheets, base plates, sputtering targets, crucibles in electronic and vacuum applications.
3. can be used as contacts in vehicle motors.
