98.75 % Molybdenum Alloys Molybdenum Hafnium Carbon MHC Tube Pipe Ring

Place of Origin	China
Minimum Order Quantity	Negotiate
Price	Negitionable
Packaging Details	Standard export cartons
Delivery Time	30 days after receiving down payment
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	10000sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Composition	Molybdenum And Other Alloying Elements	Corrosion Resistance	Good
Density	10.2 G/cm3	Electrical Resistivity	5.0 μΩ-cm
Elongation	20%	Formability	Good
Hardness	7.5 HRC	Machinability	Good
Melting Point	2620°C	Name	Molybdenum Alloys
Tensile Strength	200 MPa	Thermal Conductivity	140 W/m-K
Thermal Expansion	4.5 μm/m-K	Weldability	Good
Yield Strength	150 MPa
High Light	Hafnium Molybdenum Alloys , Hafnium Molybdenum Pipe , Carbon MHC Molybdenum Pipe

Leave a Message

Product Description

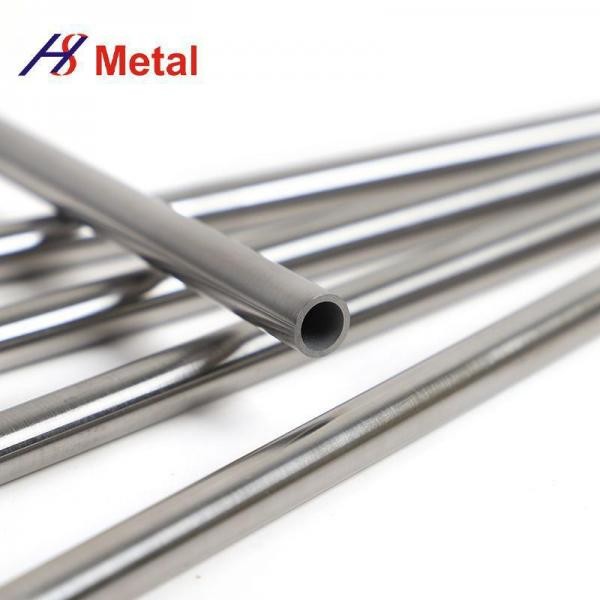

98.75 % Molybdenum Hafnium Carbon MHC Tube Pipe Ring

MHC Alloy Properties:

Outstanding heat resistance

Outstanding creep resistance

Withstands extreme thermal and mechanical loads

Thanks to the uniformly distributed, extremely fine carbides, the material benefits from outstanding heat and creep resistance and, at 1550 °C, the maximum recommended temperature of use is 150 °C higher than that of TZM.

Molybdenum-Hafnium-Carbon(MHC alloy) is a particle-reinforced molybdenum-based alloy which contains both hafnium and carbon.

Component Elements Properties	Metric
Carbon, C	0.050 - 0.12 %
Hafnium, Hf	1.2 %
Molybdenum, Mo	98.68 - 98.75 %

Molybdenum hafnium carbon Tube / Pipe / Ring Applications:

Used as a rotary molybdenum target for coating, which is widely used in solar industries.
Used in components of electron tube, heaters of high-temperature furnaces, and thermocouple retainers.
Used in solar industries.
