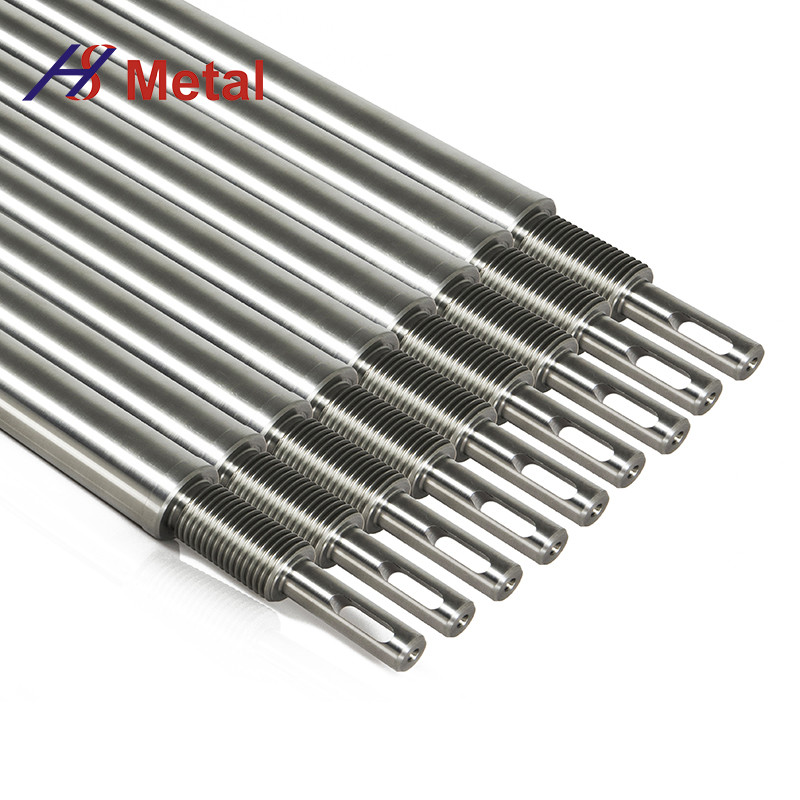

Dia 20mm Molybdenum Electrode Bar Rod Silver Gray For Glass Fiber
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Molybdenum Electrode | Application | Glass Fiber |
|---|---|---|---|
| Feature | High-temperature Strength | Density | >10.2g/cm ³ |
| Specifications | Customized | Type | Molybdenum Electrodes |
| High Light | 20mm Molybdenum Electrode,20mm Molybdenum Rod,Glass Fiber Molybdenum Rod |
||
Product Description
Dia 20mm Molybdenum Electrode For Glass Fiber
Molybdenum Electrode is Apply to glass fiber (cotton), glass products, aluminum silicate cotton, industrial ceramic fiber and other building
environmental protection materials.
Product parameters:
Molybdenum electrodes are used for welding processes, e.g. in resistance welding. TZM (titanium-zirconium-molybdenum) is made from molybdenum by adding small amounts of small carbides.
Appearance: silver gray metallic luster
Density:>10.2g/cm
Purity: Mo>99.95%
Specifications:according to customer requirements or drawings, accept customized products.
|
Atomic number |
42 |
|
CAS number |
7439-98-7 |
|
Atomic mass |
95.94 [g/mol] |
|
Melting point |
2620 °C |
|
Boiling point |
4639 °C |
|
Density at 20 °C |
10.22 [g/cm] |
|
Crystal structure |
Body-centered cubic |
|
Coefficient of linear thermal expansion at 20 °C |
5.210-6[m/(mK)] |
|
Thermal conductivity at 20 °C |
142 [W/(mK)] |
|
Specific heat at 20 °C |
0.25 [J/(gK)] |
|
Electrical conductivity at 20 °C |
17.9106[S/m] |
|
Specific electrical resistance at 20 °C |
0.056 [(mm2)/m] |
Applications
Normally resistance welding is used for automotive, aerospace, and electronic appliance applications.
Refractory metals and their alloys are often to be used as resistance welding electrodes for their high electrical conductivity and excellent stability under high temperatures.
