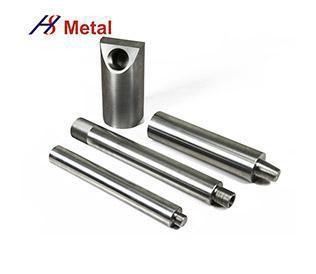

Electrical Grade Molybdenum Electrodes 10mm Molybdenum Round Bar

Place of Origin	China
Minimum Order Quantity	Negotiate
Price	Negitionable
Packaging Details	Standard export cartons
Delivery Time	30 days after receiving down payment
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	10000sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Application	Industrial, Aerospace, Automotive, Etc.	Chemical Formula	Mo
Product Name	Molybdenum Products	Shape	Powder, Sheet, Rod, Wire, Plate, Etc.
Size	Customized	Surface Treatment	Polishing, Sandblasting, Anodizing, Etc.
High Light	Molybdenum Electrodes 10mm , 10mm Molybdenum Round Bar , Electrical Grade Molybdenum Electrodes

Leave a Message

Product Description

Electrical Grade Molybdenum Electrodes Bar

Electrical Grade

Parameters of Molybdenum Rods

Diameter (mm)	Length (mm)
2.0 30.0	4000
30.0 60.0	4000
60.0 100.0	4000
100.0 200.0	4000

Commodity	Diameter	Tolerance
Molybdenum Electrodes	10mm-100mm	+/-(0.05-0.2)mm

Send Email Inquiry Now

Molybdenum electrode Features

1.Melting point of 2 620 °C (4 748 °F)

2.Anti-Oxidation Coating

3.Outstanding creep resistance

4.High dimensional stability

5.Excellent corrosion resistance

6.Good electrical and thermal conductivity

7.Outstanding purity

Appearance: Bright silver-gray metallic luster. (process according to user's drawing, surface finish is higher)
Purity: Mo> 99.95%
Density: > 10.2g/cm
Unit weight: The special dimension of various kinds of Molybdenum electrodes under 70kgs is consulted by both parties.
Dimension: produced according to the needs of users

Molybdenum electrode bar is mainly used as the furnace, electric boosting glass electrode, etc

Atomic number	42
CAS number	7439-98-7
Atomic mass	95.94 [g/mol]
Melting point	2620 °C
Boiling point	4639 °C
Density at 20 °C	10.22 [g/cm]
Crystal structure	Body-centered cubic
Coefficient of linear thermal expansion at 20 °C	5.210-6 [m/(mK)]
Thermal conductivity at 20 °C	142 [W/(mK)]
Specific heat at 20 °C	0.25 [J/(gK)]
Electrical conductivity at 20 °C	17.9106 [S/m]
Specific electrical resistance at 20 °C	0.056 [(mm2)/m]

Quality&Inspection

Applications

Molybdenum electrodes can be used in glass melting furnaces producing high quality glass and refractory glass fiber industry. Our electrodes are energy efficiency, long service life, and environmental friendly. Molybdenum has a better corrosion resistance than normal material in molten glass. If tiny reaction happened, it’s colorless, which does not pollute glass product.
