Mo 1 Mo 2 MoLa Molybdenum Disc Erosion Resistance For Vacuum Furnace
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Molybdenum Products Disc | Density | ≥10.2g/cc |
|---|---|---|---|
| Melting Point | 2610ºC | Application | Vacuum Furnace |
| Advantage | High Temperature Resistance | Purity | >99.93% |
| High Light | Molybdenum Disc Erosion Resistance,Vacuum Furnace Molybdenum Disc |
||
Product Description

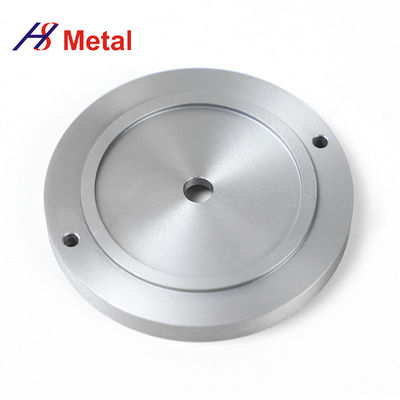

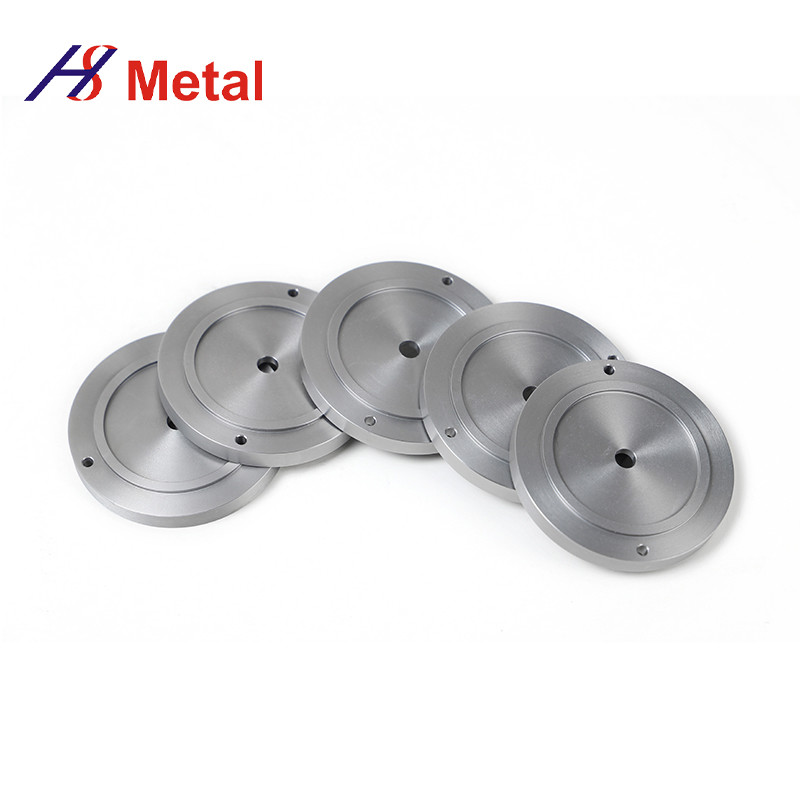

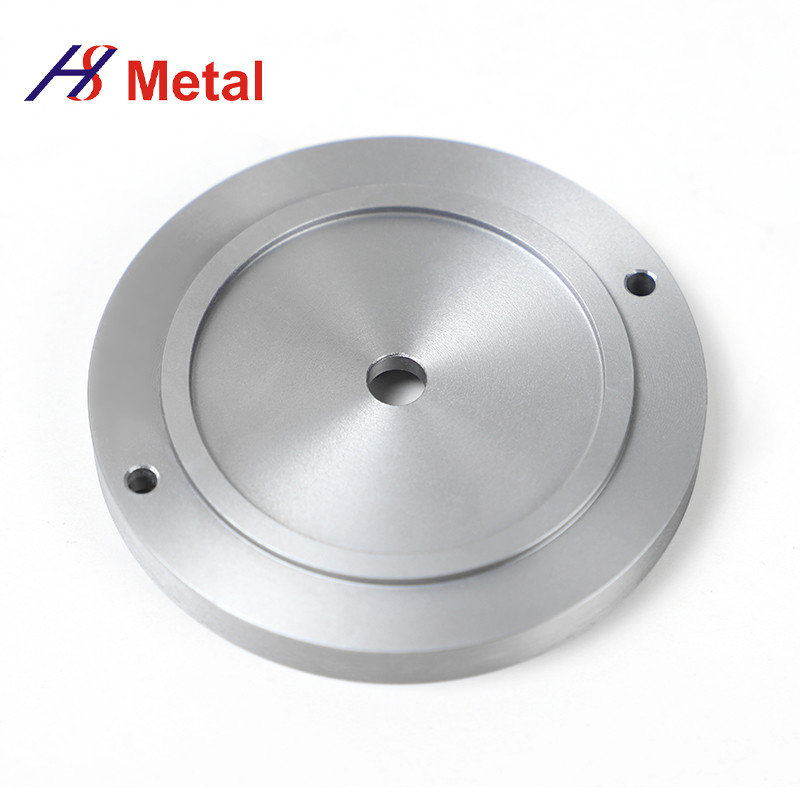

Mo 1 Mo 2 MoLa Molybdenum Products Disc For Vacuum Furnace
Quick Details
Material: pure molybdenum 99.95%Min
Density10.2g/cc
Melting point: 2610C
We can manufacture according to customer required
Excellent conductivity of electricity
Resistance of high temperature
High melting point, high oxidation and erosion resistance.
Chemical requirements
|
Element |
Ni |
Mg |
Fe |
Pb |
Al |
Bi |
Si |
Cd |
Ca |
P |
|
Concentration(%) |
0.003 |
0.002 |
0.005 |
0.0001 |
0.002 |
0.0001 |
0.002 |
0.0001 |
0.002 |
0.001 |
|
Element |
C |
O |
N |
Sb |
Sn |
Mo |
|
|
|
|
|
Concentration(%) |
0.01 |
0.003 |
0.003 |
0.0005 |
0.0001 |
balance |
|
|
|
|
Parameters
|
Atomic number |
42 |
|
CAS number |
7439-98-7 |
|
Atomic mass |
95.94 [g/mol] |
|
Melting point |
2620 °C |
|
Boiling point |
4639 °C |
|
Density at 20 °C |
10.22 [g/cm] |
|
Crystal structure |
Body-centered cubic |
|
Coefficient of linear thermal expansion at 20 °C |
5.210-6 [m/(mK)] |
|
Thermal conductivity at 20 °C |
142 [W/(mK)] |
|
Specific heat at 20 °C |
0.25 [J/(gK)] |
|
Electrical conductivity at 20 °C |
17.9106 [S/m] |
|
Specific electrical resistance at 20 °C |
0.056 [(mm2)/m] |
Applications
Molybdenum rings are widely used as contact materials in silicon controlled rectifier diodes, transistors and thyristors mounting material for power semiconductor devices and heat sink bases.
Features
1. Molybdenum discs are widely used as contact materials in diodes of silicon controlled rectifiers, transistors and thyristors;
2. Further applications include using molybdenum discs as heat sink bases in IC'S, LSI'S and hybrid circuits;
3. Molybdenum discs are widely used in vacuum switches as contact terminals.;
4. Molybdenum discs are also applied in producing heating sintering trays, sintering boats, base plates, supporting disk for
crucibles in electronic and vacuum applications. disc/round
5. Used as sputtering targets.
