Mo 1 Molybdenum Rod Stock Moly Stud M8 M10 M12 Molybdenum Threaded Rod
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Moly Stud | Thread Diameter | M8 M10 M12 |
|---|---|---|---|
| Application | Vacuum And High Temperature Furnace | Surface | Polished |
| Material | Mo | Other Name | Molybdenum Threaded Rod |
| High Light | Mo 1 Molybdenum Rod Stock,M10 Molybdenum Rod Stock |
||
Product Description

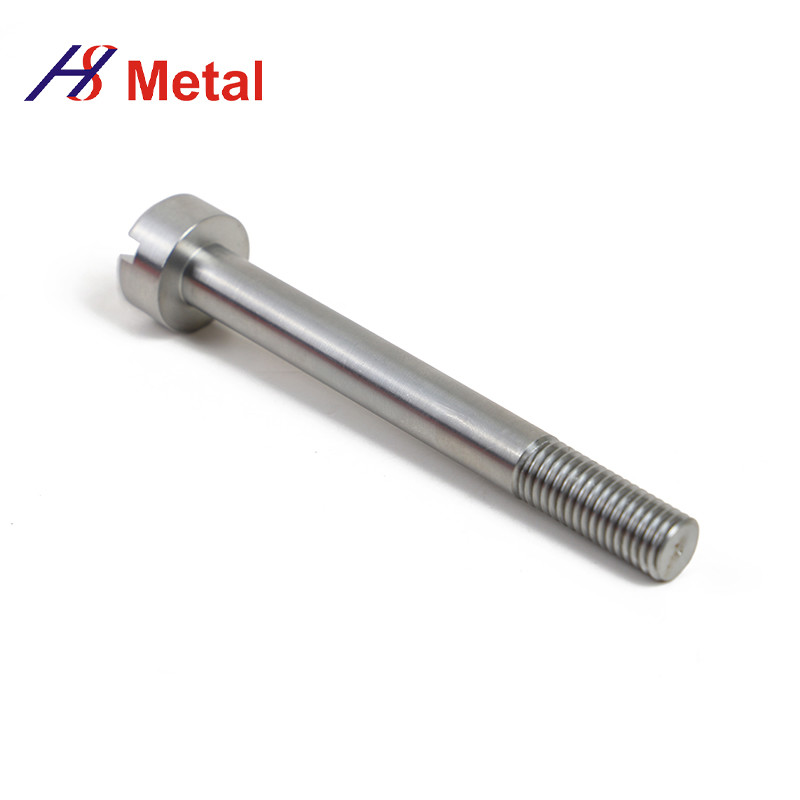

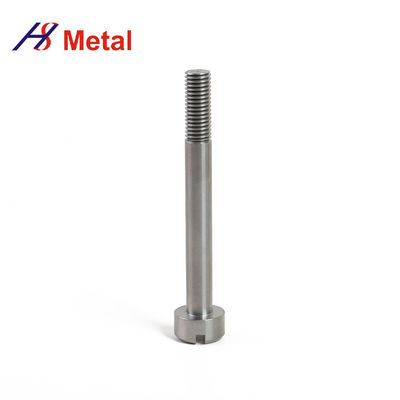

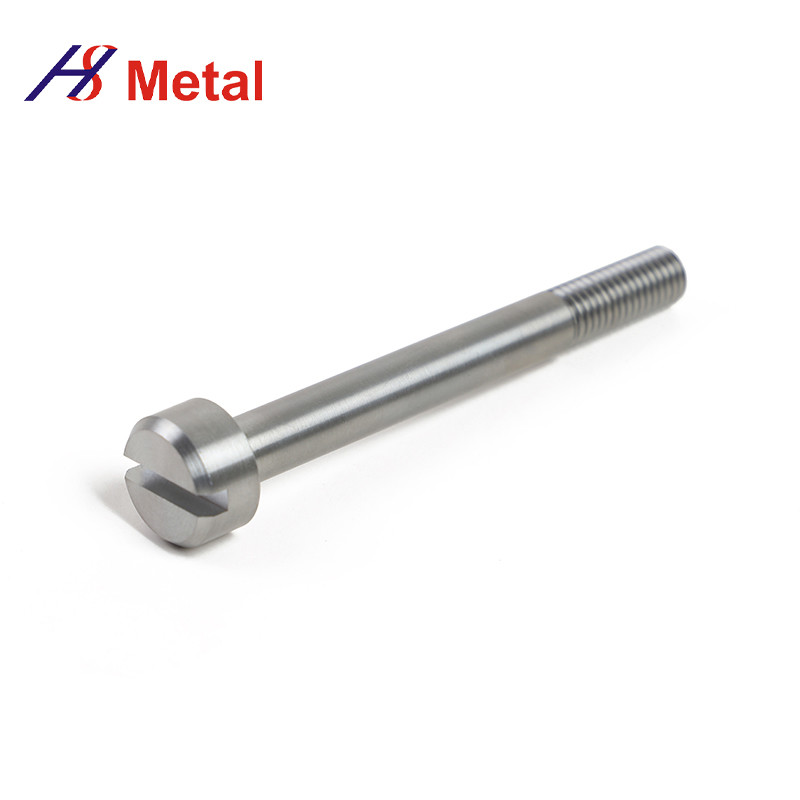

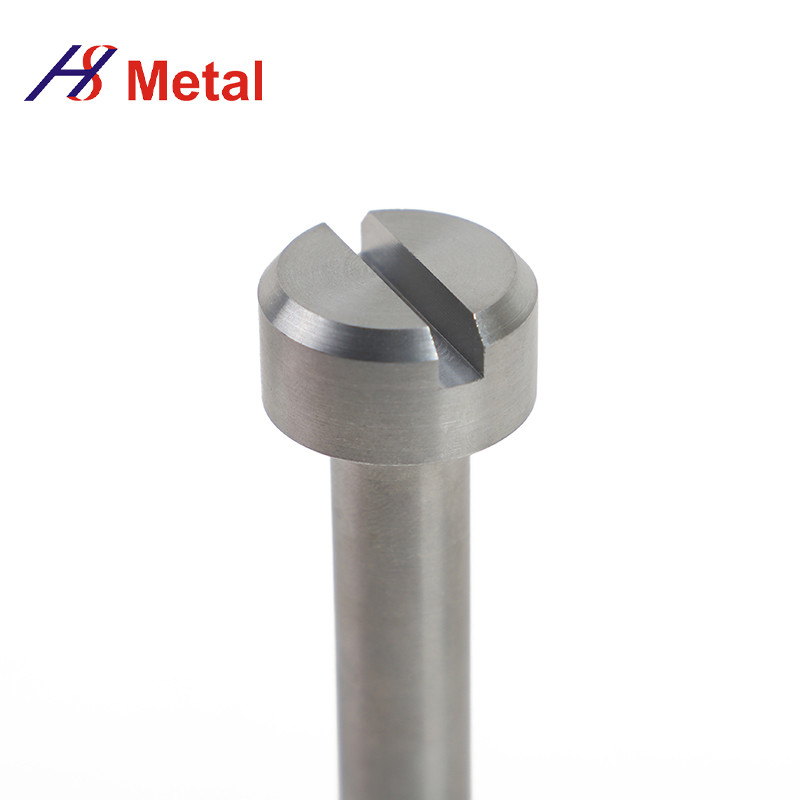

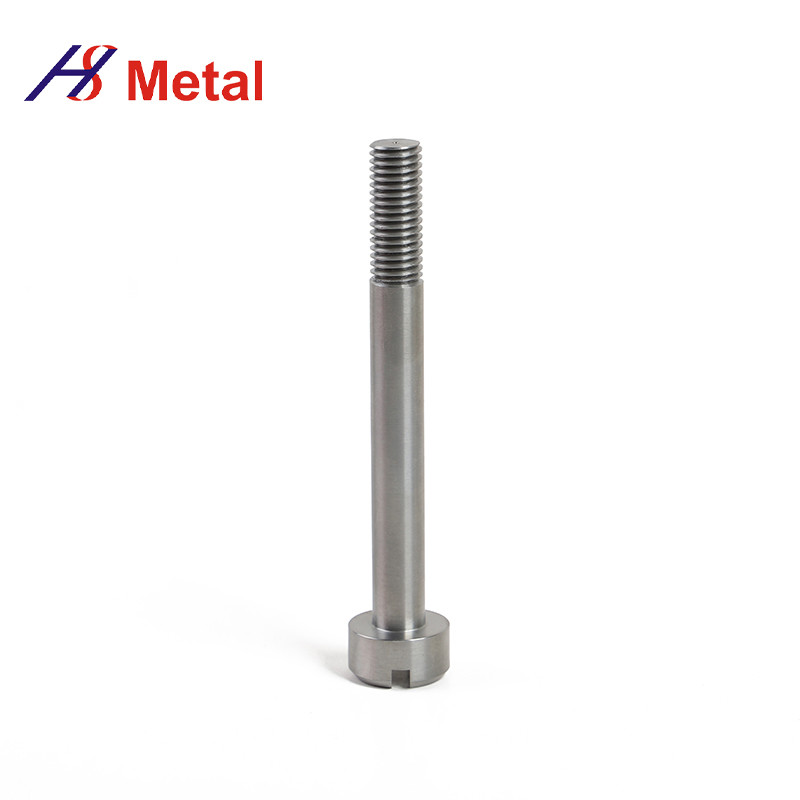

Mo 1 Moly Stud For Vacuum And High-Temperature Furnace
Moly Stud are produced for high-temperature vacuum environments. These refractory threaded rods can be cut and
finished off to desired lengths. In many cases, cut pieces can be coupled with washers and nuts to emulate a screw.
Parameters
| Molybdenum Threaded Rods | |||
| Thread Diameter | 1000mm | 2000mm | 3000mm |
| M5 | * | * | * |
| M8 | * | * | * |
| M10 | * | * | * |
| M12 | * | * | * |
| * =Available Size not listed? Please enquire – we may be able to provide it. |
|||
| Atomic number | 42 |
| CAS number | 7439-98-7 |
| Atomic mass | 95.94 [g/mol] |
| Melting point | 2620 °C |
| Boiling point | 4639 °C |
| Density at 20 °C | 10.22 [g/cm³] |
| Crystal structure | Body-centered cubic |
| Coefficient of linear thermal expansion at 20 °C | 5.2 × 10-6 [m/(mK)] |
| Thermal conductivity at 20 °C | 142 [W/(mK)] |
| Specific heat at 20 °C | 0.25 [J/(gK)] |
| Electrical conductivity at 20 °C | 17.9 × 106 [S/m] |
| Specific electrical resistance at 20 °C | 0.056 [(Ωmm2)/m] |
Application
Hot Zones for high-temperature furnaces.
Sputtering targets for coating solar cells & flat screens.
Glass melting electrodes
Be used of fasteners made of Molybdenum, Molybdenum alloy, Tungsten and its alloy.
Semiconductor base plates.
Brazing fixtures & Boring bars
