M4 M5 M6 M10 M 20 Pure Moly Bolts Threaded Rods Molybdenum Round Bar
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Moly Bolts | Thread Diameter | M4 M5 M6 M10 M 20 |
|---|---|---|---|
| Application | High-temperature Furnaces | Surface | Polished |
| Material | Mo | Other Name | Molybdenum Rods |
| High Light | M5 Molybdenum Rod,M5 Molybdenum Round Bar,Round Molybdenum Bolt |
||
Product Description

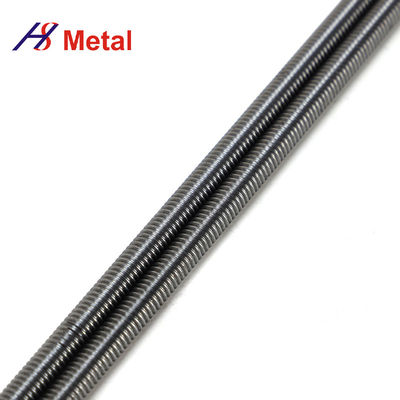

M4 M5 M6 M10 M 20 Pure Moly Bolts Threaded Rods
Pure Molybdenum fasteners (molybdenum nuts, molybdenum washers, molybdenum screws and molybdenum threaded rods) have excellent heat resistance, with their high melting point. It’s useful for heat resistant devices such as sputtering equipment and high temperature furnaces. Metric molybdenum fasteners and ANSI standard molybdenum fasteners are available. TZM alloy and Mo-La alloy can also be made to molybdenum alloy fasteners.
Parameters
| Molybdenum Threaded Rods | |||
| Thread Diameter | 1000mm | 2000mm | 3000mm |
| M5 | * | * | * |
| M8 | * | * | * |
| M10 | * | * | * |
| M12 | * | * | * |
| * =Available Size not listed? Please enquire – we may be able to provide it. |
|||
| Atomic number | 42 |
| CAS number | 7439-98-7 |
| Atomic mass | 95.94 [g/mol] |
| Melting point | 2620 °C |
| Boiling point | 4639 °C |
| Density at 20 °C | 10.22 [g/cm³] |
| Crystal structure | Body-centered cubic |
| Coefficient of linear thermal expansion at 20 °C | 5.2 × 10-6 [m/(mK)] |
| Thermal conductivity at 20 °C | 142 [W/(mK)] |
| Specific heat at 20 °C | 0.25 [J/(gK)] |
| Electrical conductivity at 20 °C | 17.9 × 106 [S/m] |
| Specific electrical resistance at 20 °C | 0.056 [(Ωmm2)/m] |
Application
Hot Zones for high-temperature furnaces.
Sputtering targets for coating solar cells & flat screens.
Glass melting electrodes
Be used of fasteners made of Molybdenum, Molybdenum alloy, Tungsten and its alloy.
Semiconductor base plates.
Brazing fixtures & Boring bars
