M12 M10 Molybdenum Products Molybdenum Screw For Glass Melting Electrodes
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Molybdenum Screws | Thread Diameter | M5 M8 M10 M12 |
|---|---|---|---|
| Application | High-temperature Furnaces | Surface | Polished |
| Material | Mo | Other Name | Molybdenum Threaded Rods |
| Highlight | Molybdenum Products M10,Molybdenum Screw M10,Glass Melting Electrodes Molybdenum Screw |
||
Product Description

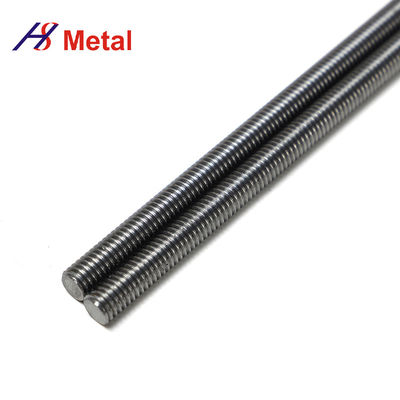

M5 M8 M10 M12 Molybdenum Screws Threaded Rods
Molybdenum Threaded Rods are for when high strength and stability in extremely high temperatures are required.
They have an incredibly high melting point, which stands at 2620°C – as well as a high level of conductivity. They also have a moderately low point of thermal expansion.
As they have low distortion and extraordinary durability at high temperatures, they are ideal for applications that involve intense temperatures that are shielded from oxygen – as exposing the fastener to oxygen above heats of 600°C will cause it to oxidise.
Applications for a Molybdenum Threaded Rod include vacuum furnaces, glass production and space applications where oxygen is not present.
Available in a number of grades, in sizes from M5 to M12 as standard but with larger sizes available to be made to order.
If you require more information or would like to order a Threaded Rod, please contact an experienced member of our sales team by phone call or our enquiry form.
Parameters
| Molybdenum Threaded Rods | |||
| Thread Diameter | 1000mm | 2000mm | 3000mm |
| M5 | * | * | * |
| M8 | * | * | * |
| M10 | * | * | * |
| M12 | * | * | * |
| * =Available Size not listed? Please enquire – we may be able to provide it. |
|||
| Atomic number | 42 |
| CAS number | 7439-98-7 |
| Atomic mass | 95.94 [g/mol] |
| Melting point | 2620 °C |
| Boiling point | 4639 °C |
| Density at 20 °C | 10.22 [g/cm³] |
| Crystal structure | Body-centered cubic |
| Coefficient of linear thermal expansion at 20 °C | 5.2 × 10-6 [m/(mK)] |
| Thermal conductivity at 20 °C | 142 [W/(mK)] |
| Specific heat at 20 °C | 0.25 [J/(gK)] |
| Electrical conductivity at 20 °C | 17.9 × 106 [S/m] |
| Specific electrical resistance at 20 °C | 0.056 [(Ωmm2)/m] |
Application
Hot Zones for high-temperature furnaces.
Sputtering targets for coating solar cells & flat screens.
Glass melting electrodes
Be used of fasteners made of Molybdenum, Molybdenum alloy, Tungsten and its alloy.
Semiconductor base plates.
Brazing fixtures & Boring bars
